Side panel on centre console, front:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1) on left/right.

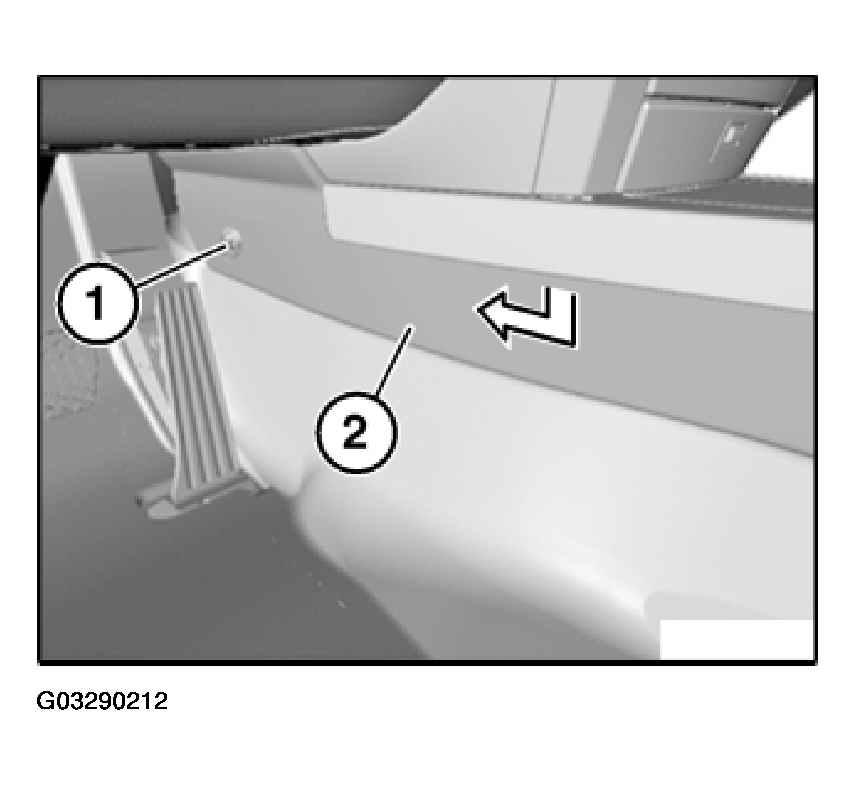

Fig 1: Releasing Screw On Left/Right
G03290212Courtesy of BMW OF NORTH AMERICA, INC.

Slide panel (2) on left/right in direction of arrow and remove.

Installation:

Retainers (1) must be correctly seated in panel guides (2).

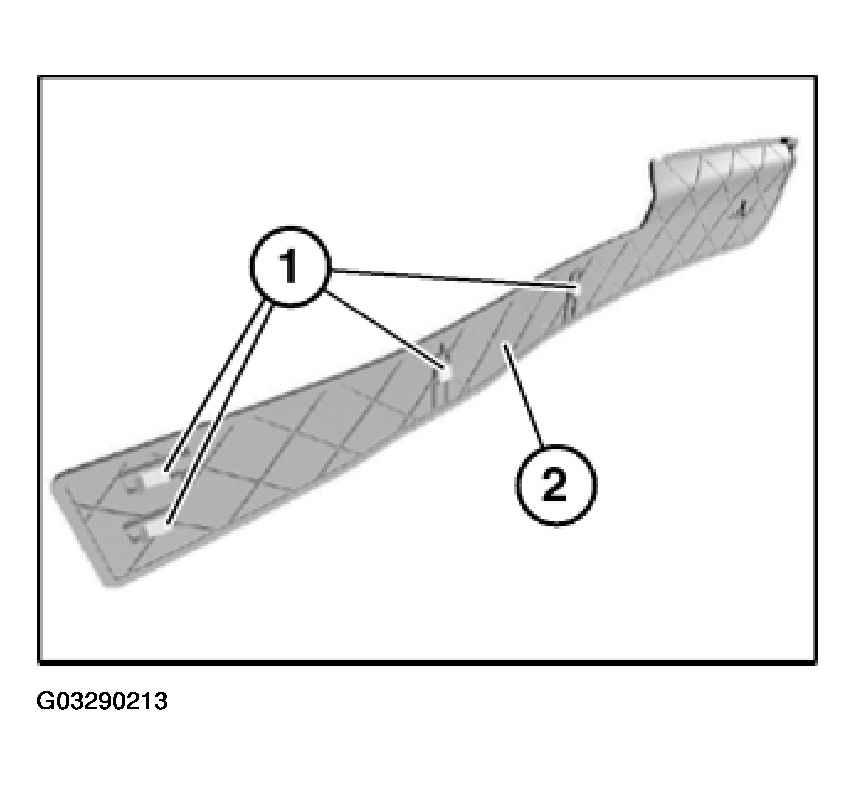

Fig 2: Identifying Retainers
G03290213Courtesy of BMW OF NORTH AMERICA, INC.
