51 16... Removing and installing / replacing adapter for roller sun blind on left or right rear door
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove roller sun blind from fixed side window in rear door, refer to 51 16 400 REMOVING AND INSTALLING OR REPLACING ROLLER SUN BLIND AT FIXED SIDE WINDOW OF LEFT OR RIGHT REAR DOOR

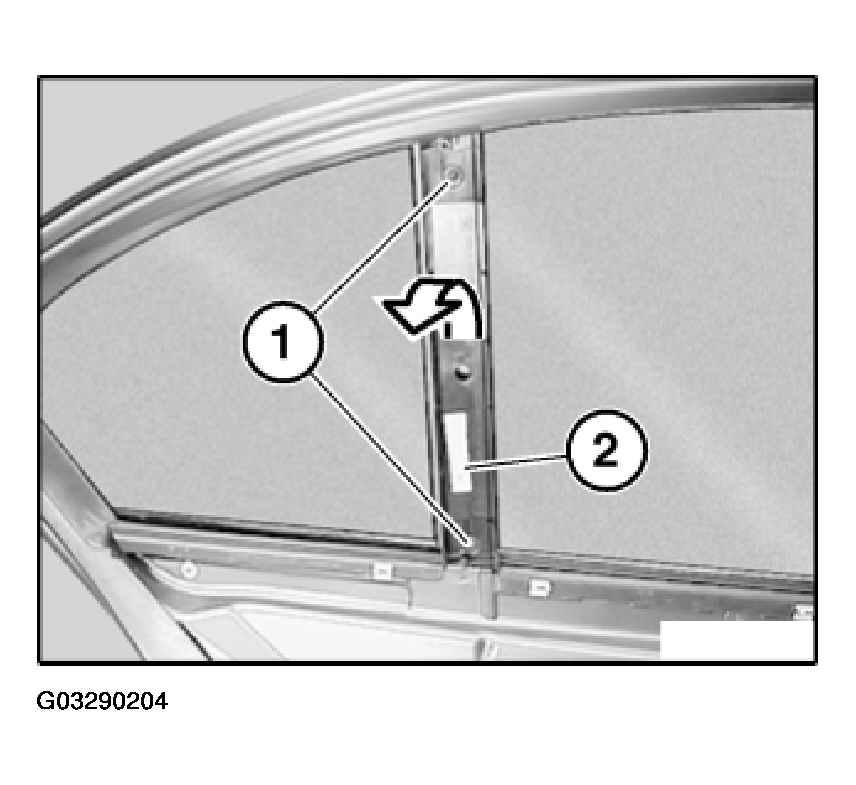

Release screws (1).
Remove adapter (2) in direction of arrow.
