51 16 367 Removing and installing right glovebox (with active knee protector) with housing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with active knee protector:
Follow safety instructions for working on cars with AIRBAG systems.

IMPORTANT: Do not use any sharp-edged tools to remove the glovebox (risk of damage to active knee protector).

Necessary preliminary tasks:

Remove trim for instrument panel at bottom right, refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT
Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY

Release screws (1) and (2).

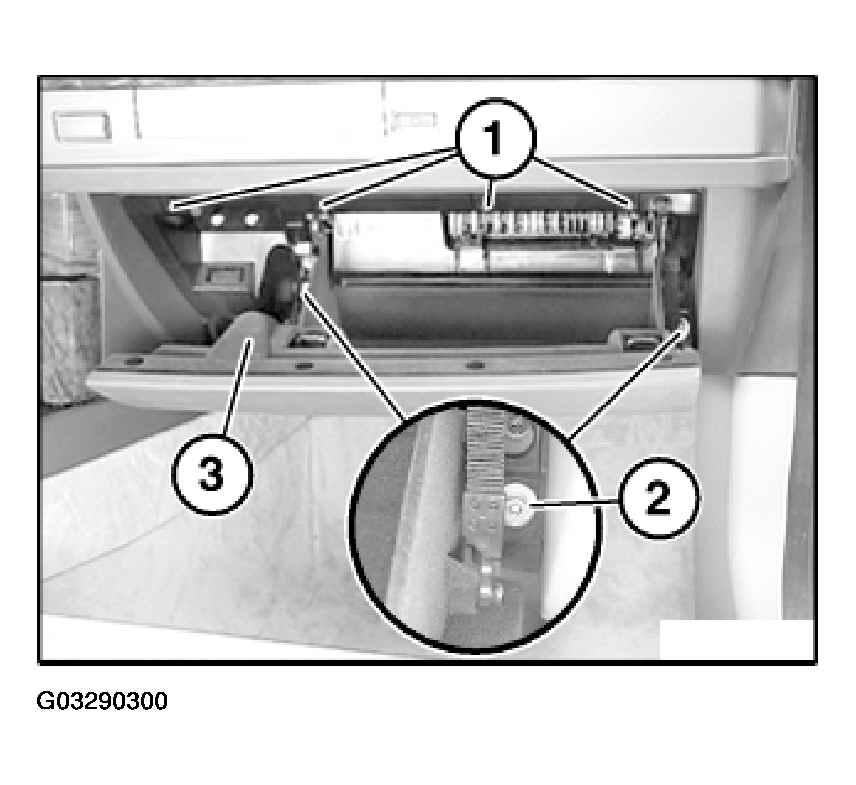

Fig 1: Pulling Glovebox With Housing Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Pull glovebox (3) with housing towards rear until Bowden cable is accessible.
