51 16 345 Removing and installing/replacing button and Bowden cable for glovebox

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim on instrument panel on right, refer to 51 45 263 Removing and installing/replacing instrument panel trim on right

Only when replacing Bowden cable for glovebox:

Remove right glovebox, refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING or 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING

Release screws (1).

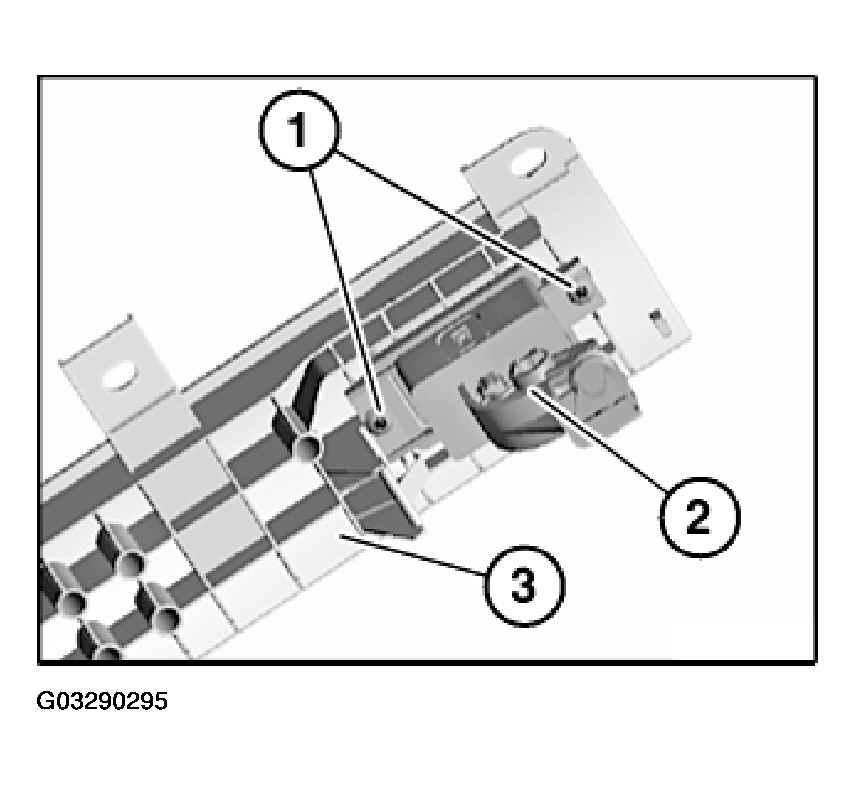

Fig 1: Removing Button From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove button (2) from trim (3).
