51 16 175 Removing and installing / replacing decorative trims (all) on function carrier: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 318
IMPORTANT:

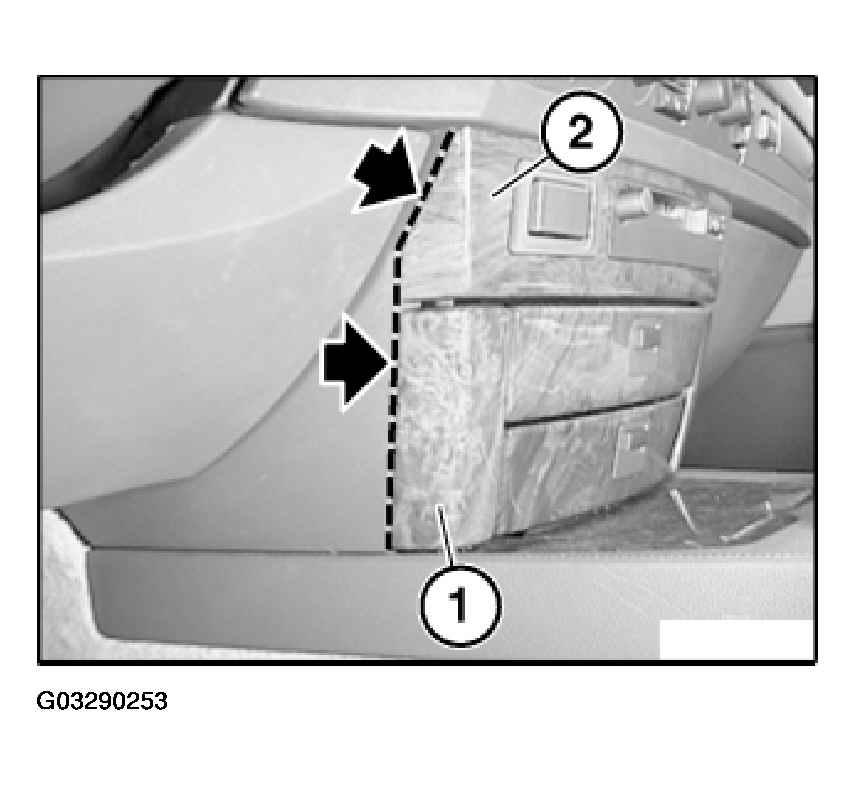

When removing side decorative trims (1) or decorative trim (2) for audio system controller:
Do not under any circumstances place a tool on the dotted lines as this would destroy the decorative trim.
Do not under any circumstances place a tool on the dotted lines as this would destroy the decorative trim.
