51 71... Removing and installing/replacing front bottom right wheel arch trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering wheel/front wheel to left.

Release expansion rivet (1).

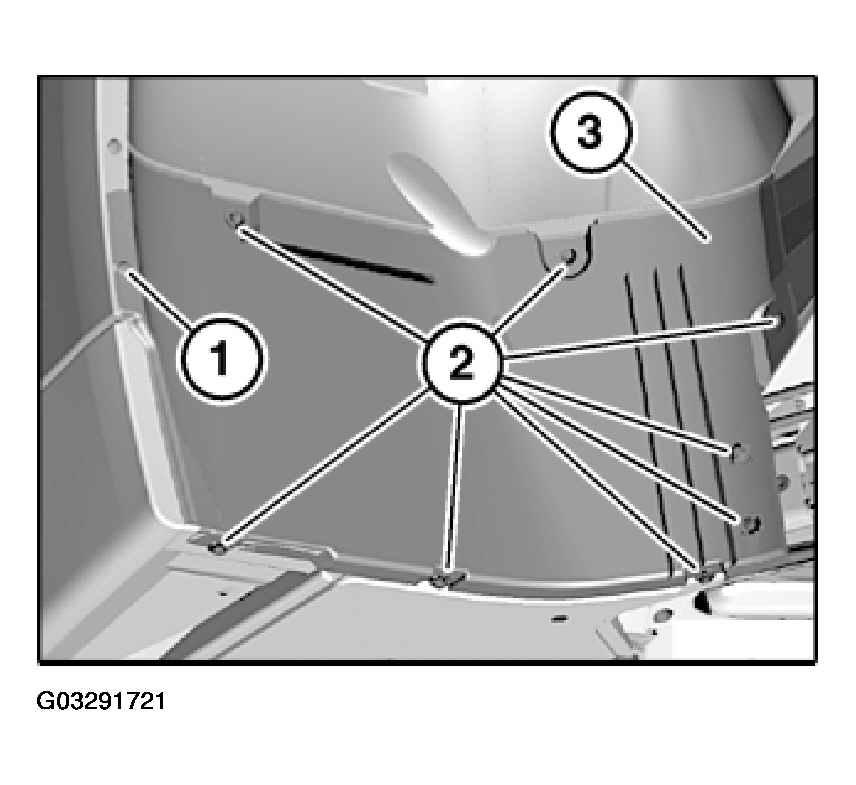

Fig 1: Removing Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove wheel arch trim (3) in downwards direction.
