51 13 115 Removing and installing / replacing cowl panel cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both windscreen wiper arms, refer to 61 61 101 REMOVING AND INSTALLING/REPLACING BOTH WINDSCREEN WIPER ARMS

Pull off rubber seal (1).

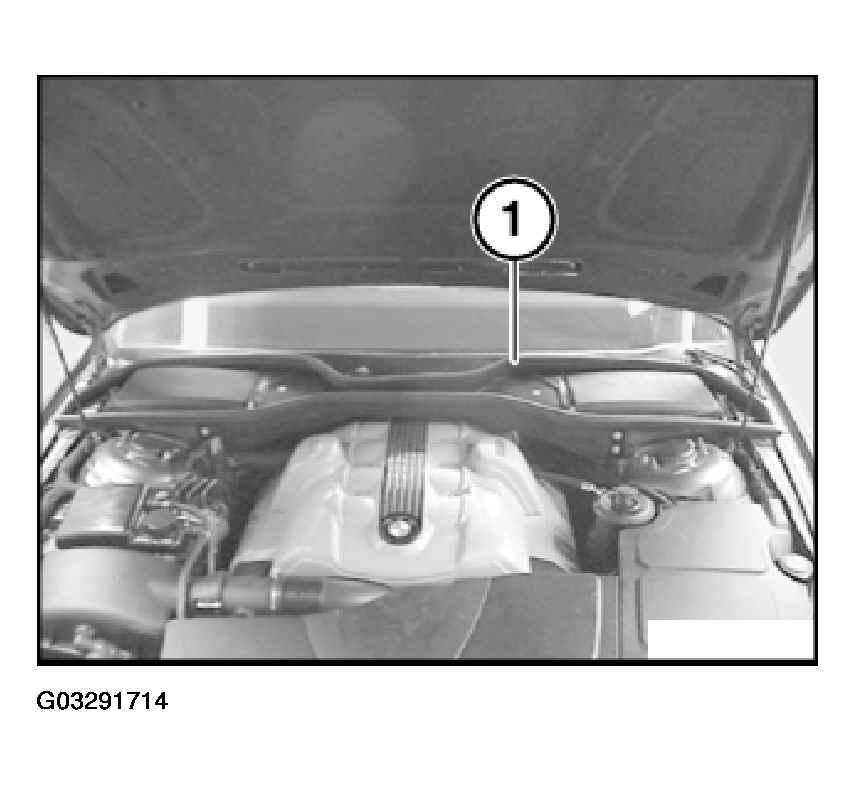

Fig 1: Pulling Off Rubber Seal

G03291714

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off corners of cover from windscreen (1).

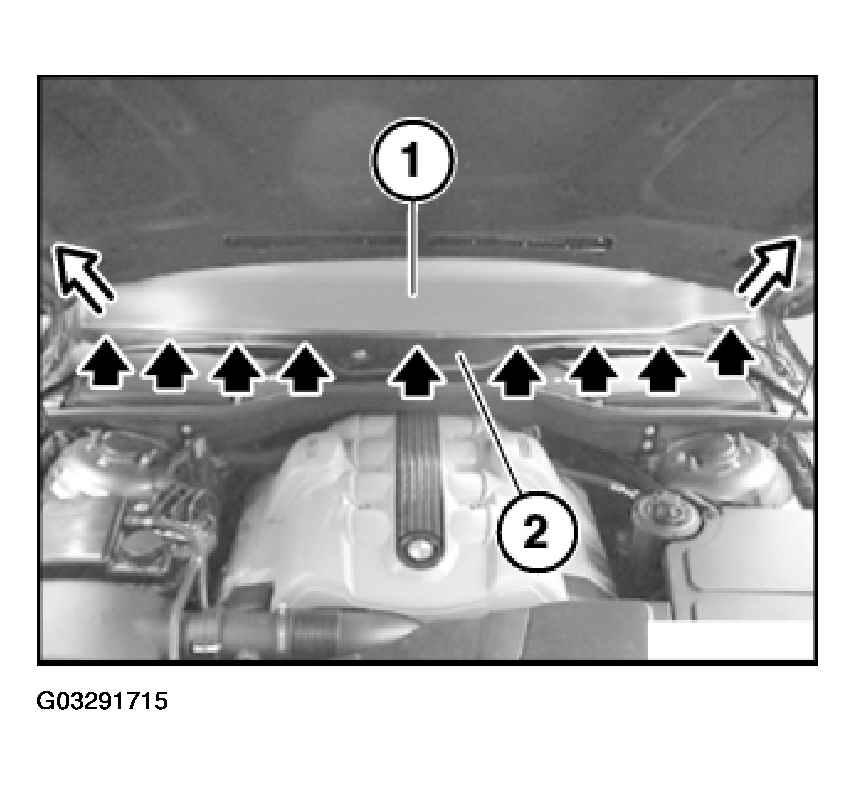

Fig 2: Pulling Off Corners Of Cover From Windscreen

G03291715

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release locks on cover (2).

Installation:

If necessary, remove butyl remnants from windscreen (1).

Installation:

Make sure cover (1) is correctly seated on side panel (2) and seal (3).

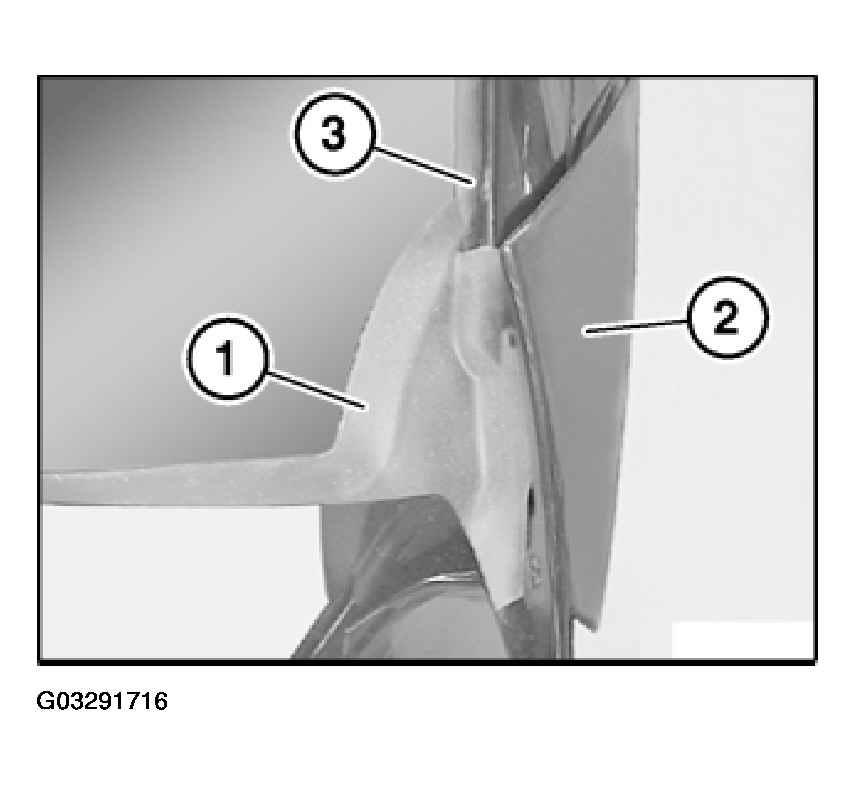

Fig 3: Installing Cover

G03291716

Courtesy of BMW OF NORTH AMERICA, INC.

Lift cover (1) upwards slightly.

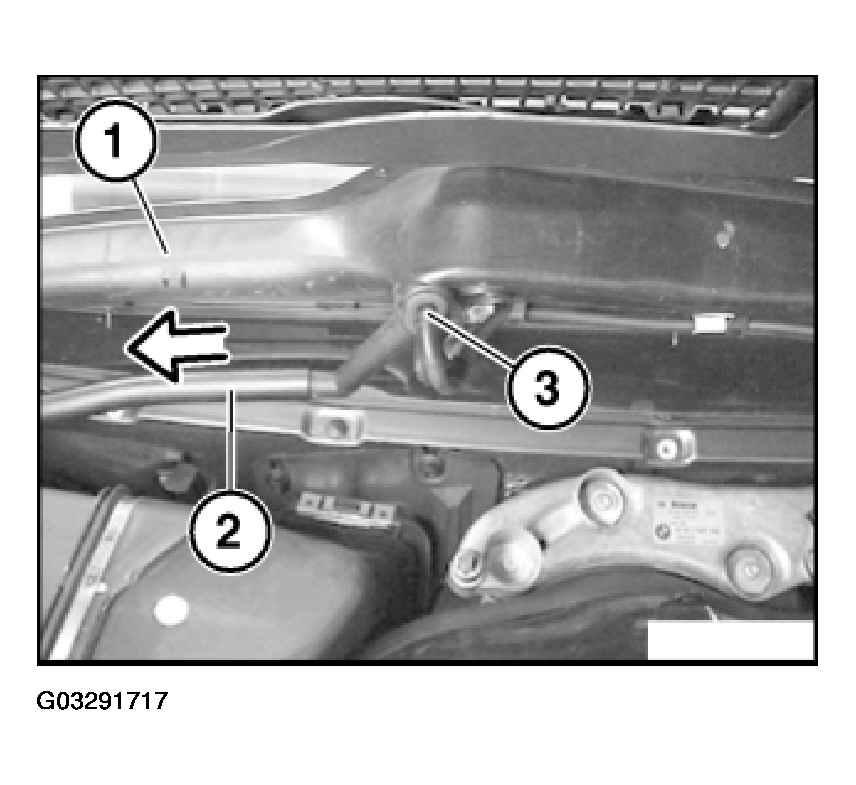

Fig 4: Pulling Tube Out Of Cover

G03291717

Courtesy of BMW OF NORTH AMERICA, INC.

Pull tube (2) out of cover (1).

Remove line (3) together with rubber seal from cover (1).

Unclip line (2) from holders (1).

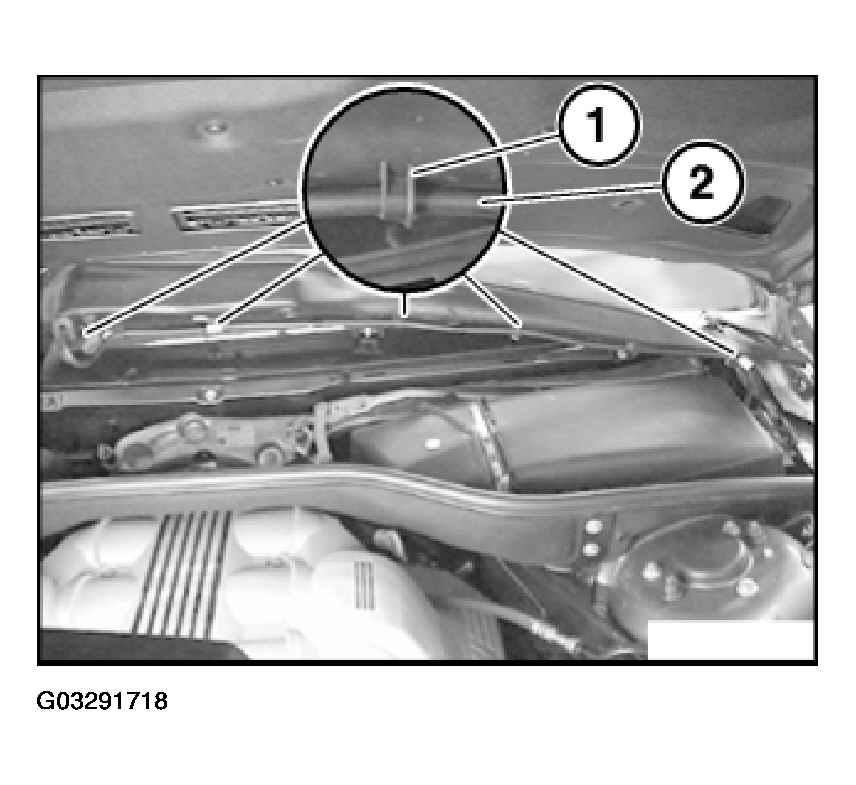

Fig 5: Removing Cowl Panel Cover

G03291718

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cowl panel cover

Installation:

If necessary, replace defective grommets (1).

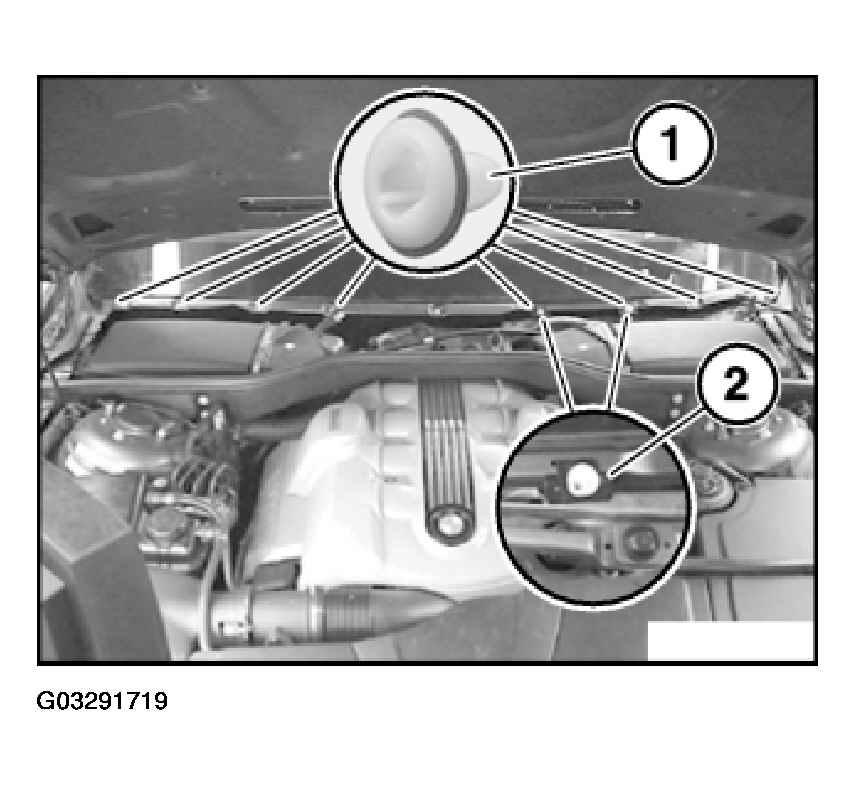

Fig 6: Replacing Defective Grommets

G03291719

Courtesy of BMW OF NORTH AMERICA, INC.

Check holder (2) for correct seating.

Installation:

Clips (1) must not be missing or damaged.

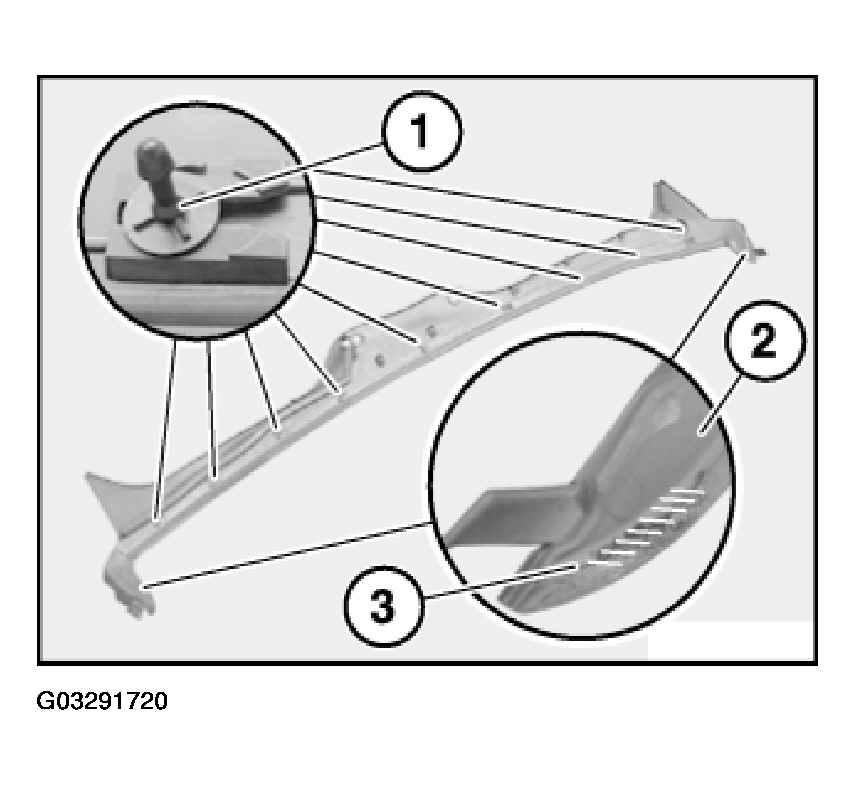

Fig 7: Identifying Clips

G03291720

Courtesy of BMW OF NORTH AMERICA, INC.

Apply some butyl (sourcing reference: BMW Parts Service) in corners of cover (2) in area (3):

Width 3 mm
Length approx. 6 cm.

Remove excess butyl from windscreen.
