51 23 100 Removing and installing/replacing right engine hood lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right headlight, refer to 63 12 002 REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT or 63 12 012 REMOVING AND INSTALLING RIGHT HEADLIGHT (XENON HEADLIGHT)

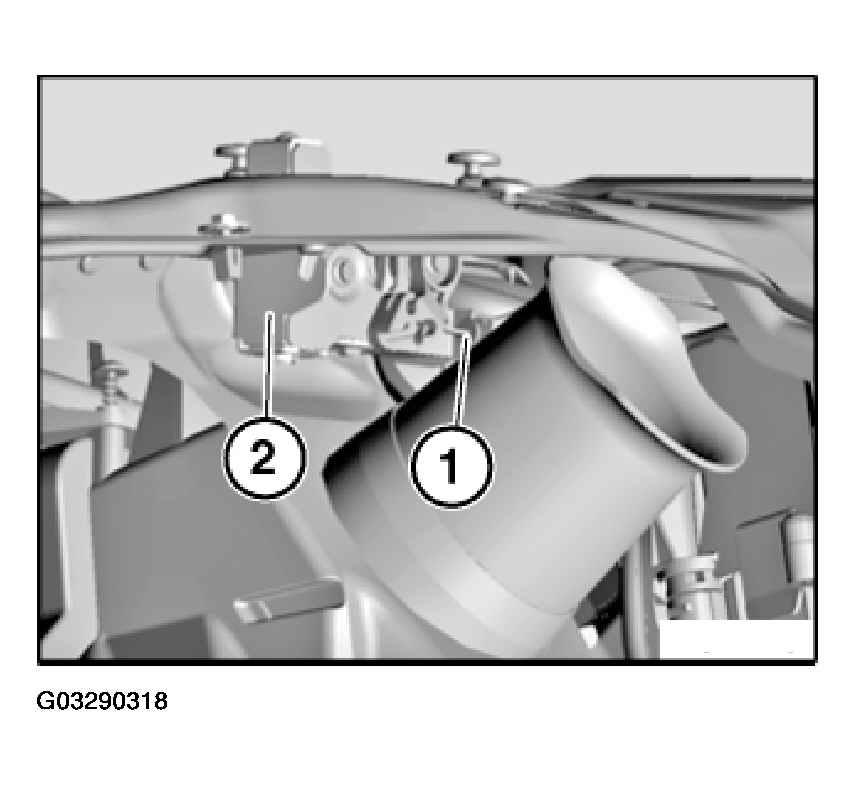

Disengage Bowden cable (1) from hood/bonnet lock (2).

Fig 1: Disengaging Bowden Cable From Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

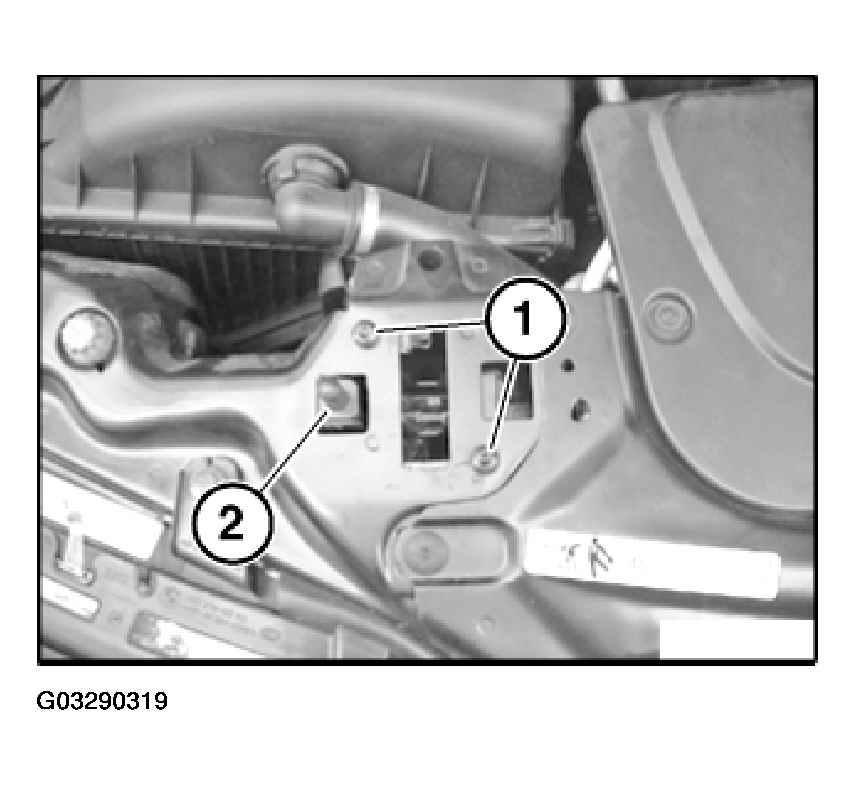

Release screws (1).

Fig 2: Removing Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hood/bonnet lock (2) towards front.

Tightening torque 51 23 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
