51 45 031 Replacing instrument panel trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove instrument panel trim, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM

Release screws (1) and remove ignition starter switch (2).

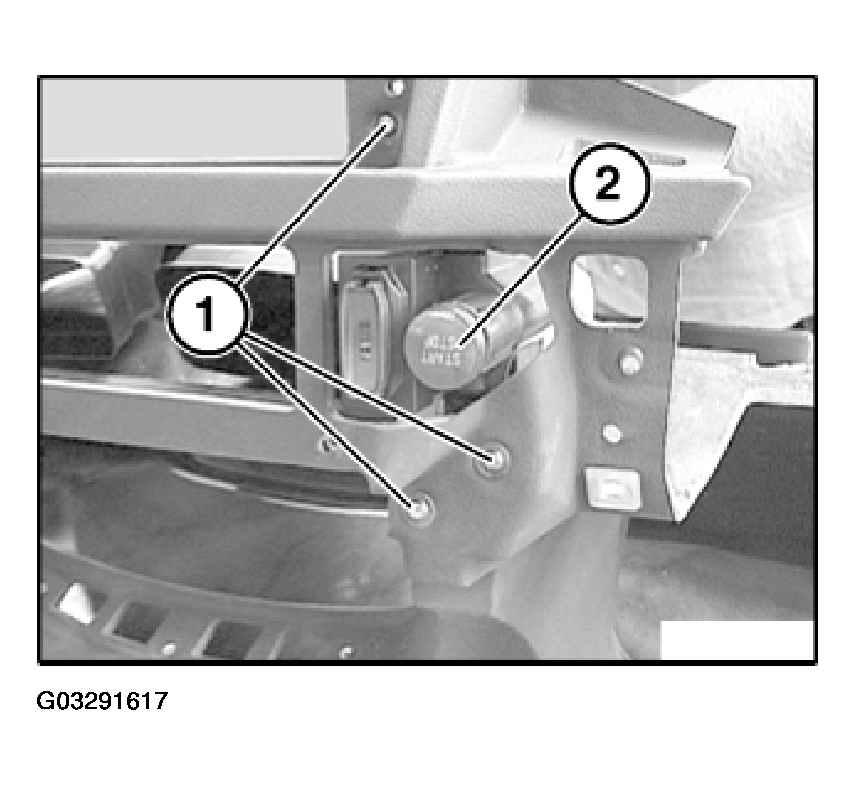

Fig 1: Removing Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Modify all attachment parts (air ducts, brackets, trims, clips and grommets).

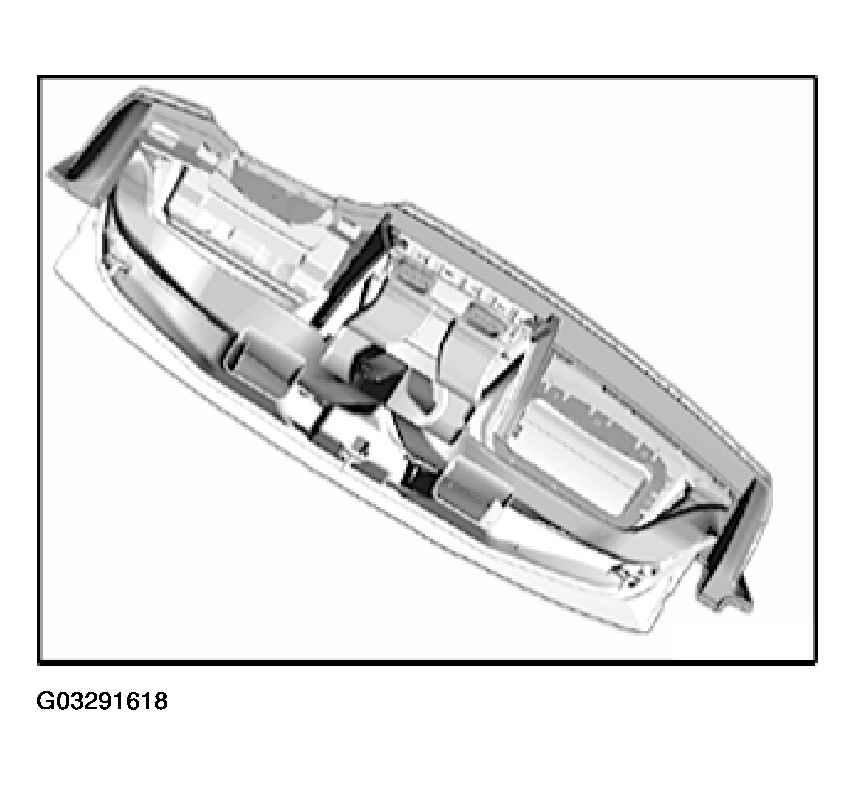

Fig 2: Modifying Attachment Parts

Courtesy of BMW OF NORTH AMERICA, INC.
