51 32 420 Removing and installing/replacing trim on front door window frame, left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front window cavity cover strip, refer to 51 21 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP (ON OUTSIDE OF FRONT DOOR)

Partially detach rubber window seal (1) at rear.

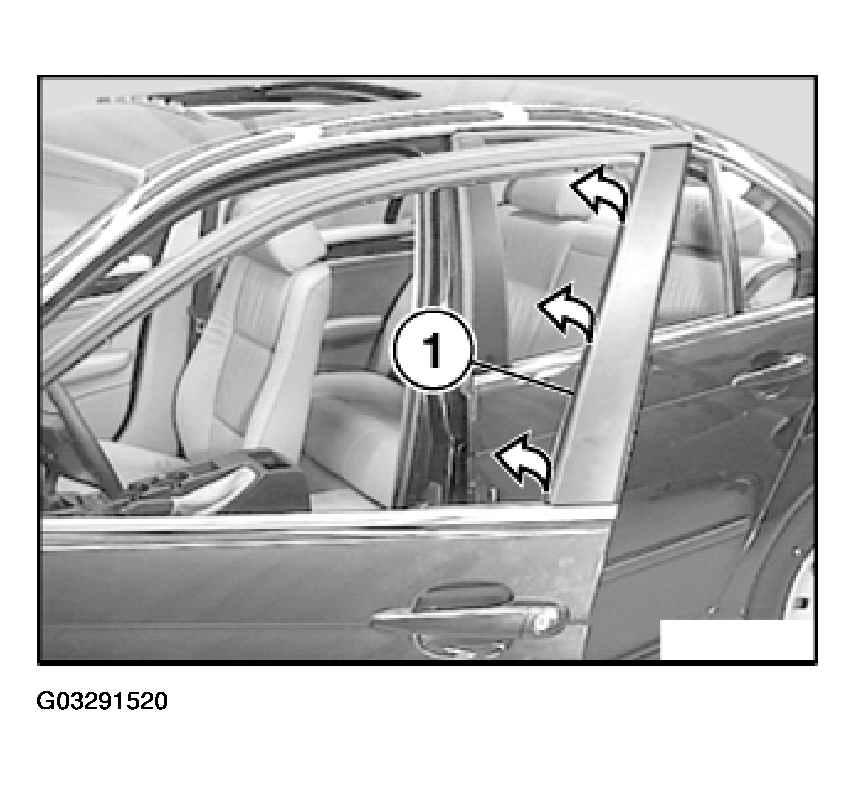

Fig 1: Locating Rubber Window Seal

G03291520

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat rubber window seal (1) with water before fitting.

Release screws (1).

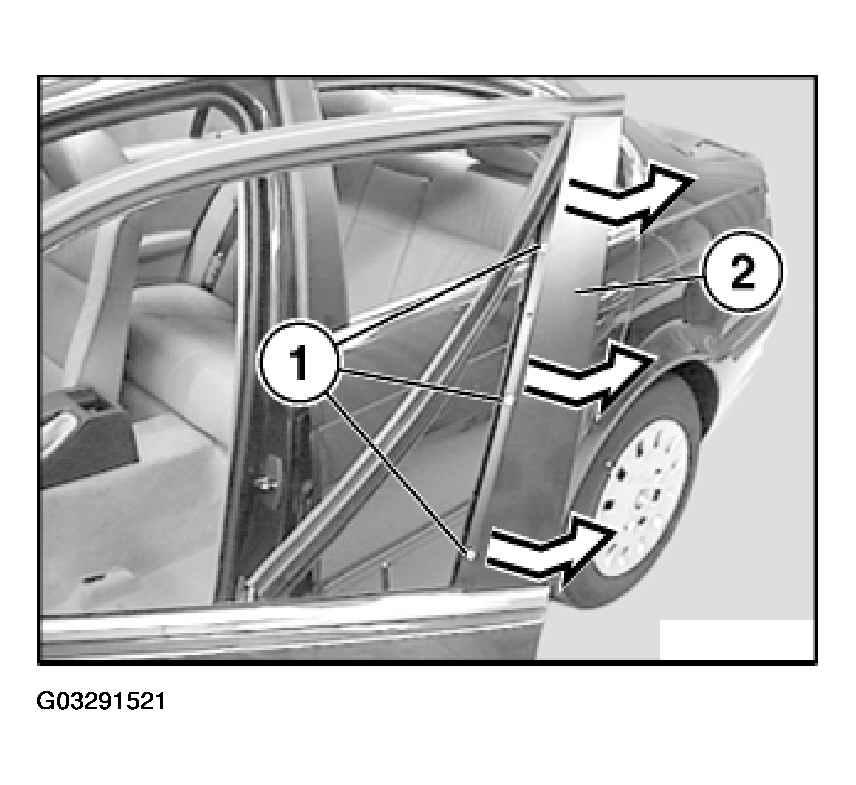

Fig 2: Releasing Screws

G03291521

Courtesy of BMW OF NORTH AMERICA, INC.

Press trim (2) towards rear and lever out sideways.

Remove trim (1) towards top.

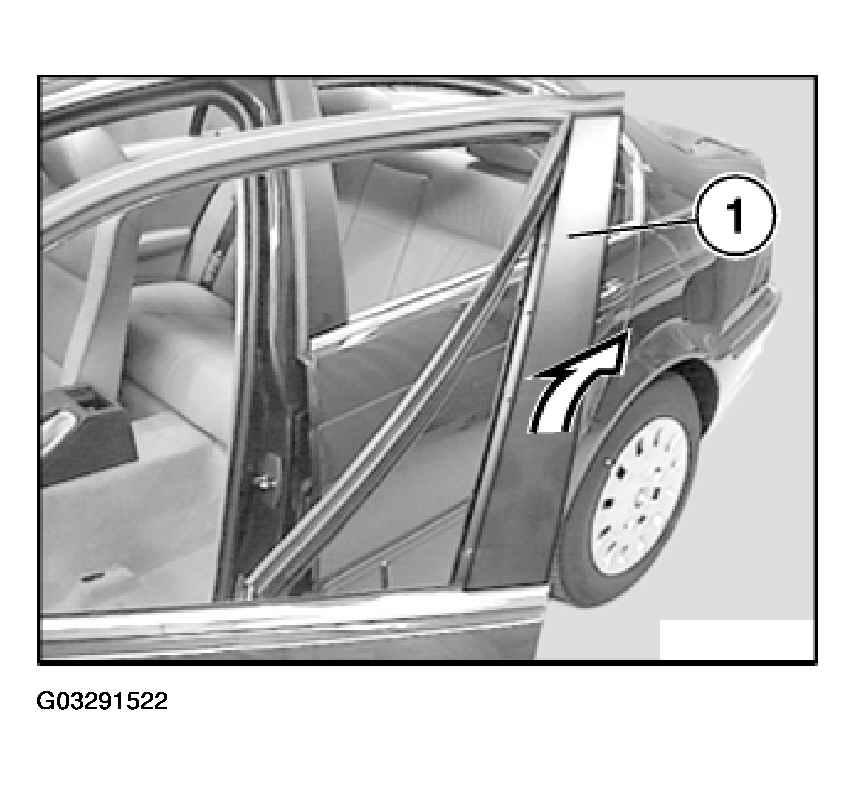

Fig 3: Removing Trim

G03291522

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty plastic nuts (1).

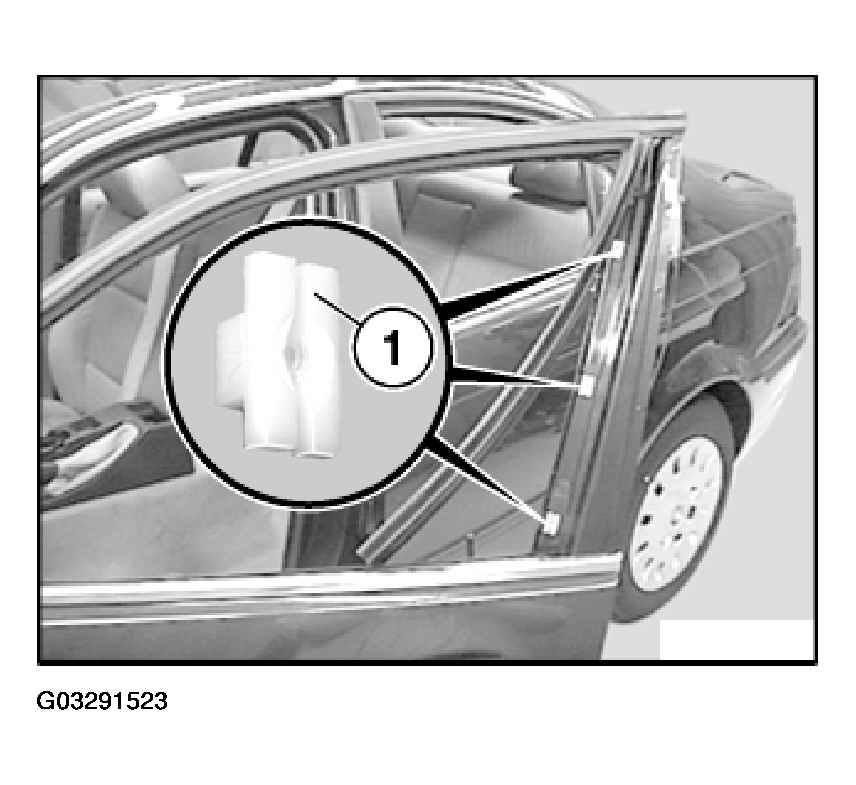

Fig 4: Replacing Faulty Plastic Nuts

G03291523

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check trim (1) for damage, replace if necessary.

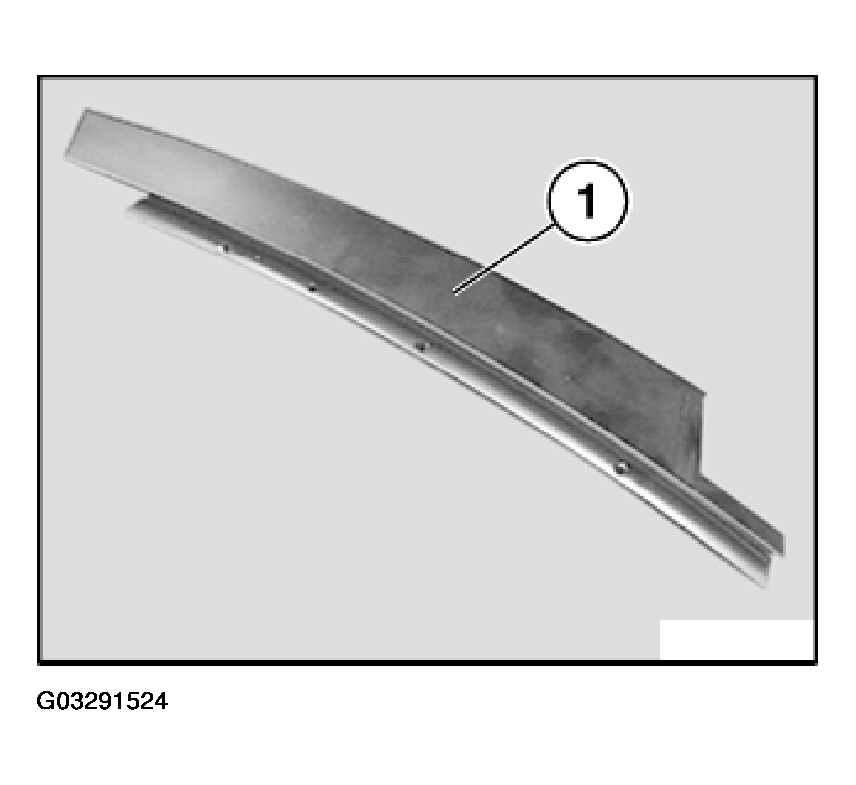

Fig 5: Checking Trim

G03291524

Courtesy of BMW OF NORTH AMERICA, INC.
