51 32 390 Removing and installing / replacing decorative strip on front left or right door
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Open door window.
- Remove mirror on front door, refer to 51 16 000 Removing and installing / replacing mirror on left or right front door

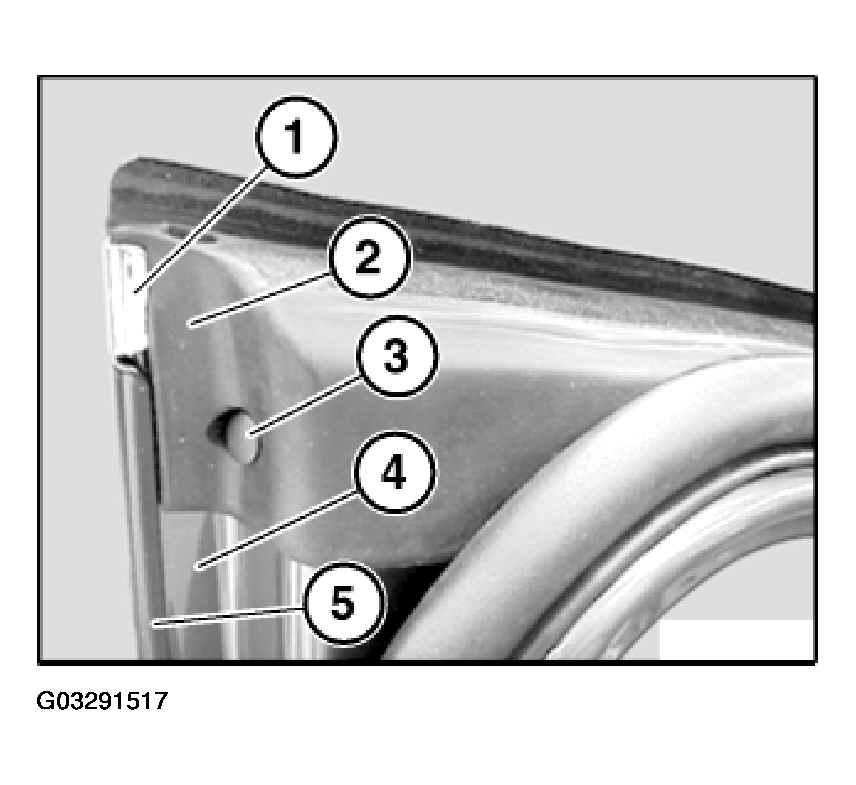

Lever out plastic rivet (3).
Lever seal (2) out of decorative strip (1).
Installation:
During installation, attach decorative strip (1) first at rear to door edge (4).
Decorative strip (1) must match trim (5).
NOTE:

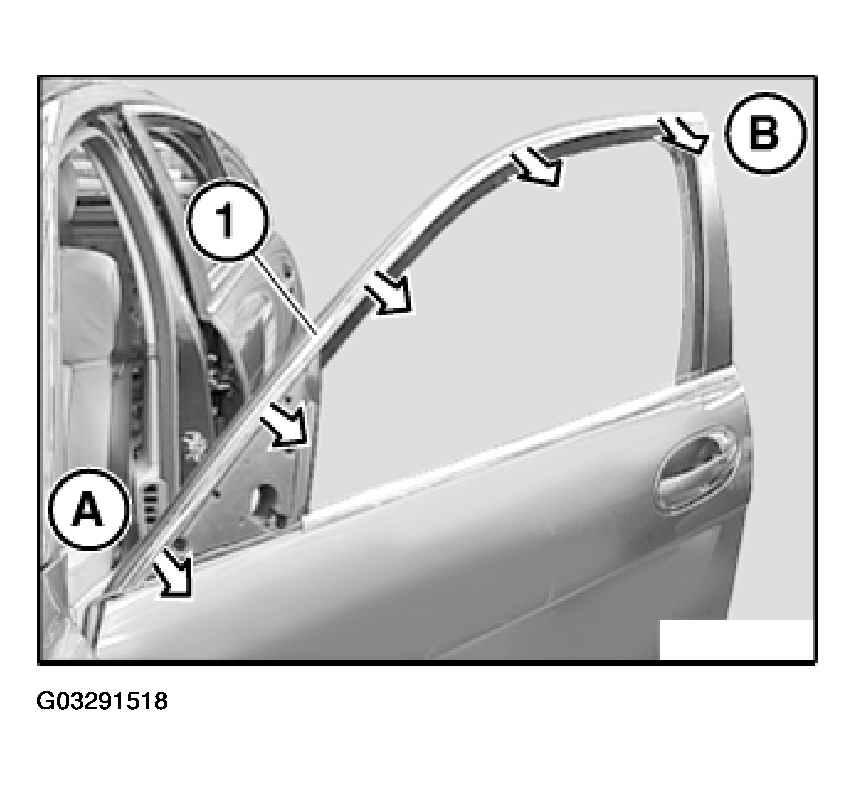

Start pulling off decorative strip (1) at front (A) and disconnect at rear (B).
Detach decorative strip (1) in direction of arrow.
Installation:

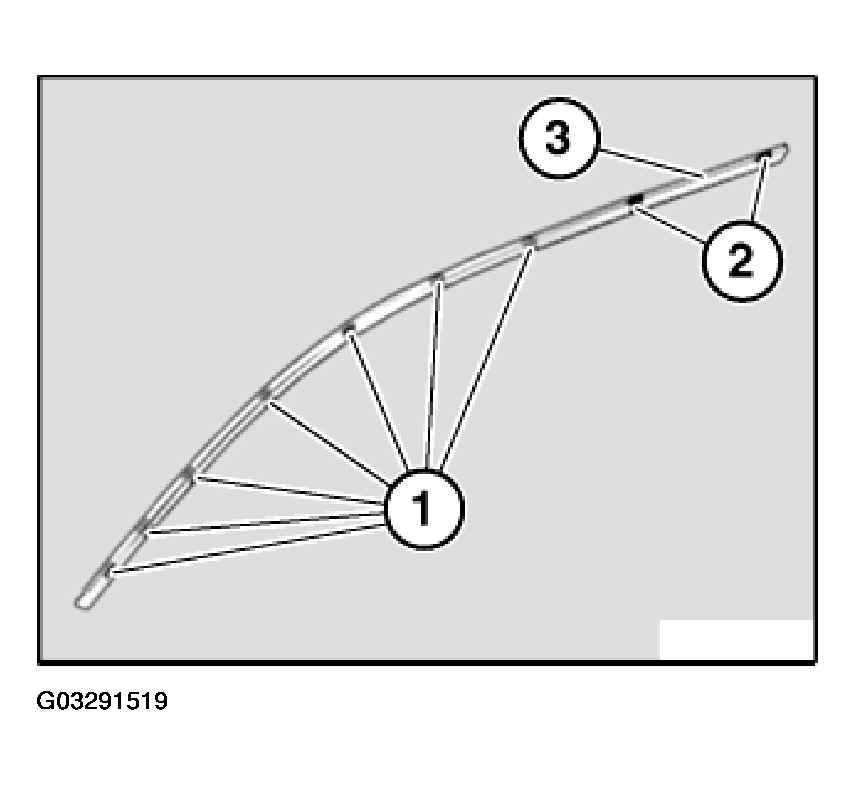

If necessary, replace faulty clips (1 and 2) on decorative strip (3).
