51 32 170 Removing And Installing / Replacing Door Window Glass, Front Left Or Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open door window to 140 mm.
Remove function carrier in front door, refer to 51 21 035 REMOVING AND INSTALLING/REPLACING FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR
Remove outer window cavity cover strip, refer to 51 21 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP (ON OUTSIDE OF FRONT DOOR)

Door window glass must be opened to dimension (A).

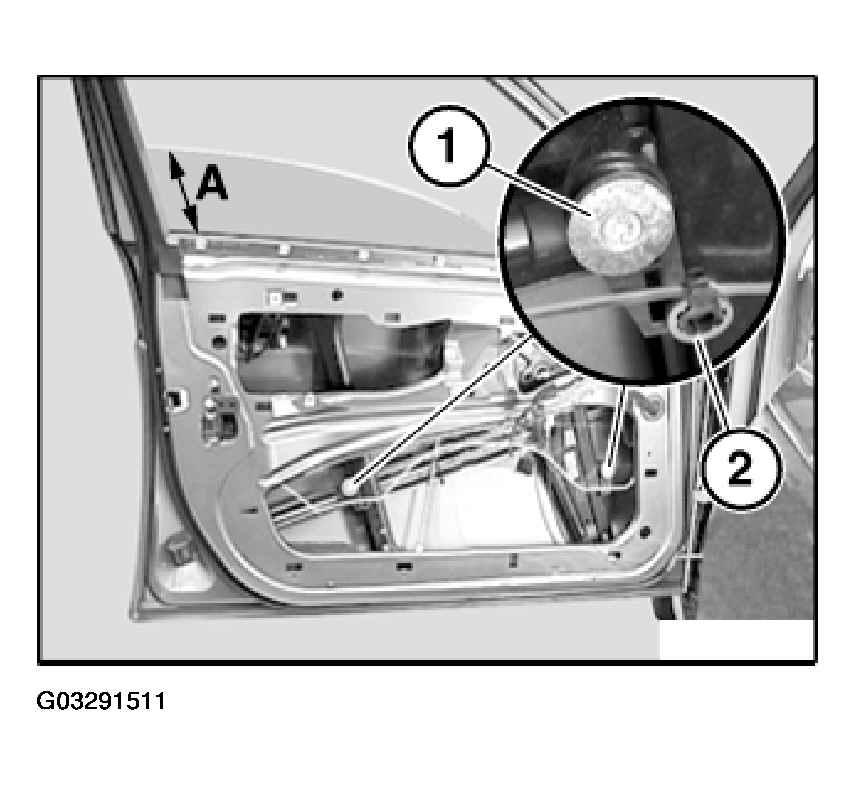

Fig 1: Opening Door Window

G03291511

Courtesy of BMW OF NORTH AMERICA, INC.

A = Approx. 140 Mm

Unfasten screws (1).

Installation:

Tightening Torque 51 32 2Az. Refer To Body Equipment - Tightening Torques .

Rubber (2) is only fitted at rear.

Turn door window glass and lift out towards rear/top.

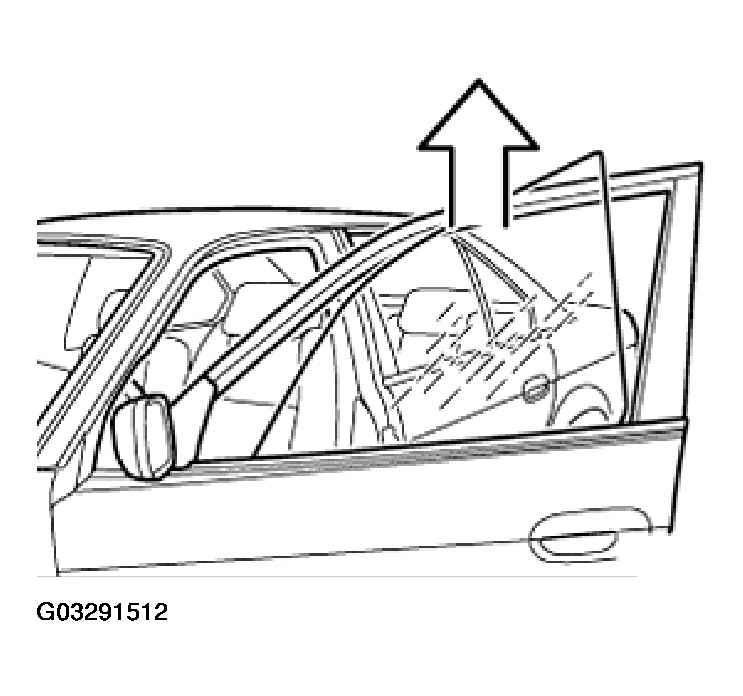

Fig 2: Removing Door Window Glass

G03291512

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bores (1) of door window glass (5) must not be damaged.

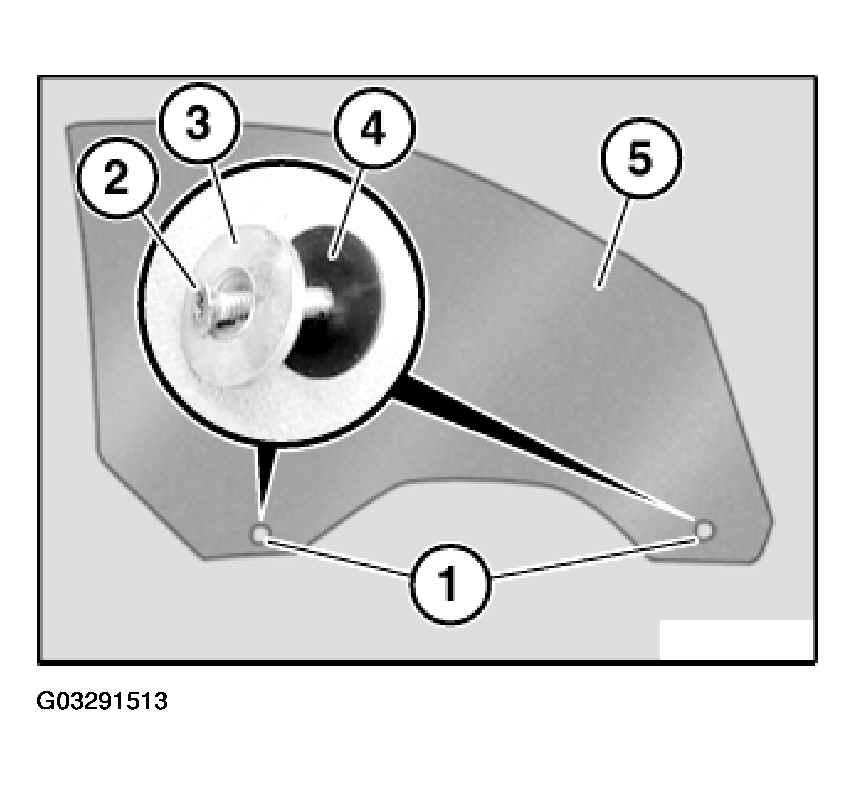

Fig 3: Identifying Bores Of Window Glass

G03291513

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install new screws (2), washers (3) and plastic washers (4).

Adjust door window glass. Refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW GLASS .
