51 32 160 Removing and installing / replacing housing cover on inner left or right door window frame: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL

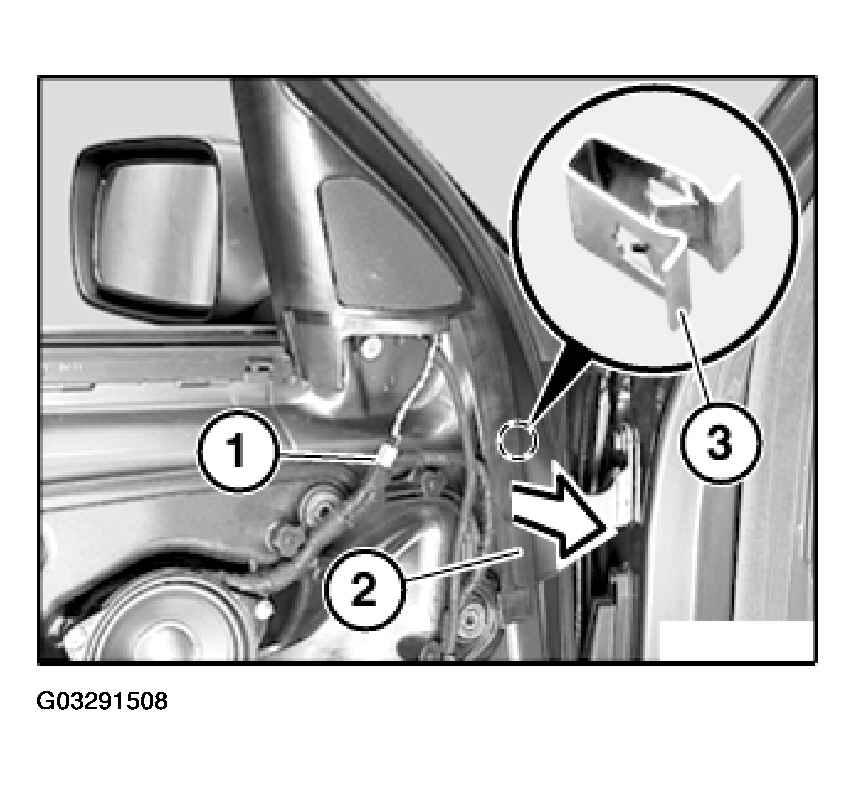

Disconnect plug connection (1) for speaker.

Fig 1: Disconnecting Plug Connection For Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Lever cover (2) in direction of arrow out of retainer (3).

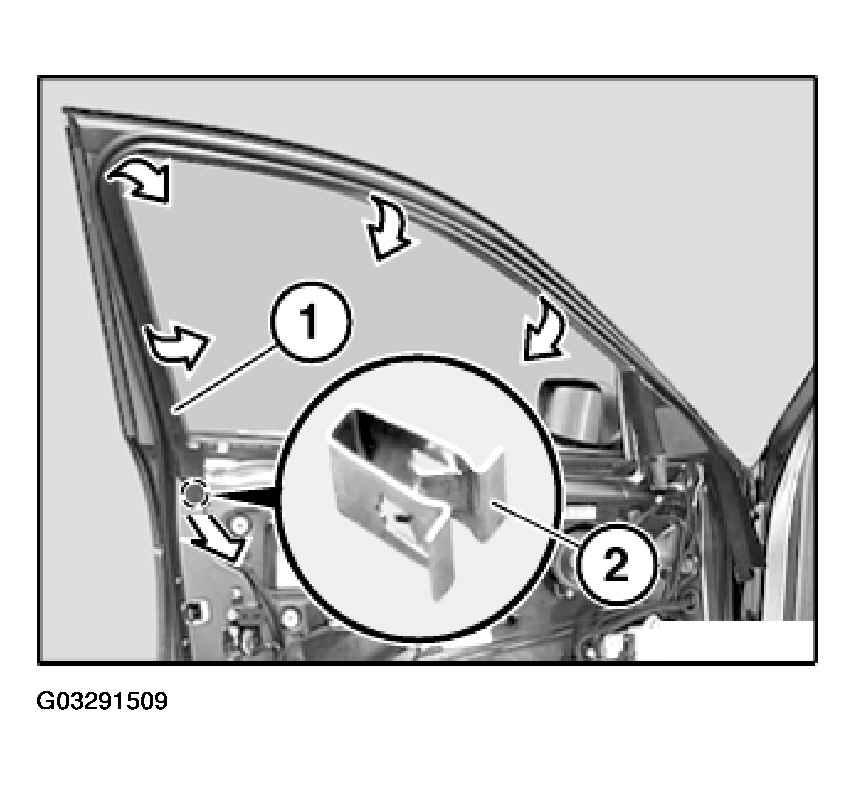

Detach cover (1) from retainer (2) and remove rest.

Fig 2: Detaching Cover From Retainer And Removing Rest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

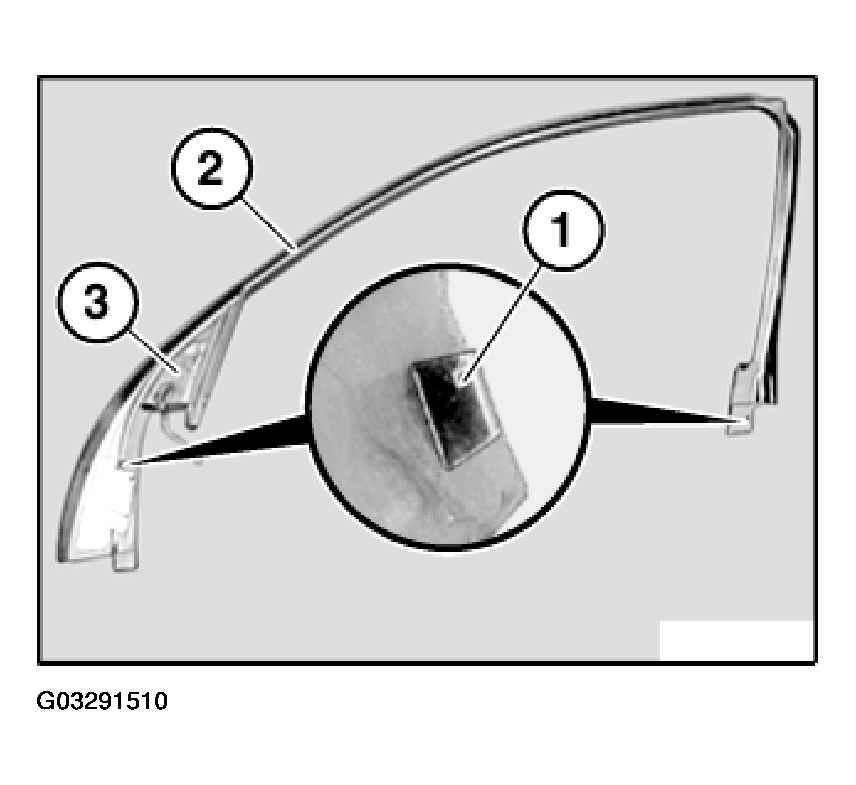

Following parts of cover (2) must not be damaged or missing:

Fig 3: Identifying Bridges And Foam

Courtesy of BMW OF NORTH AMERICA, INC.

(1) Bridges

(3) Foam

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
