51 48 001 Removing and installing/replacing insulation lining on hood/bonnet

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models.

Release threaded rivets (1) on insulation lining (2).

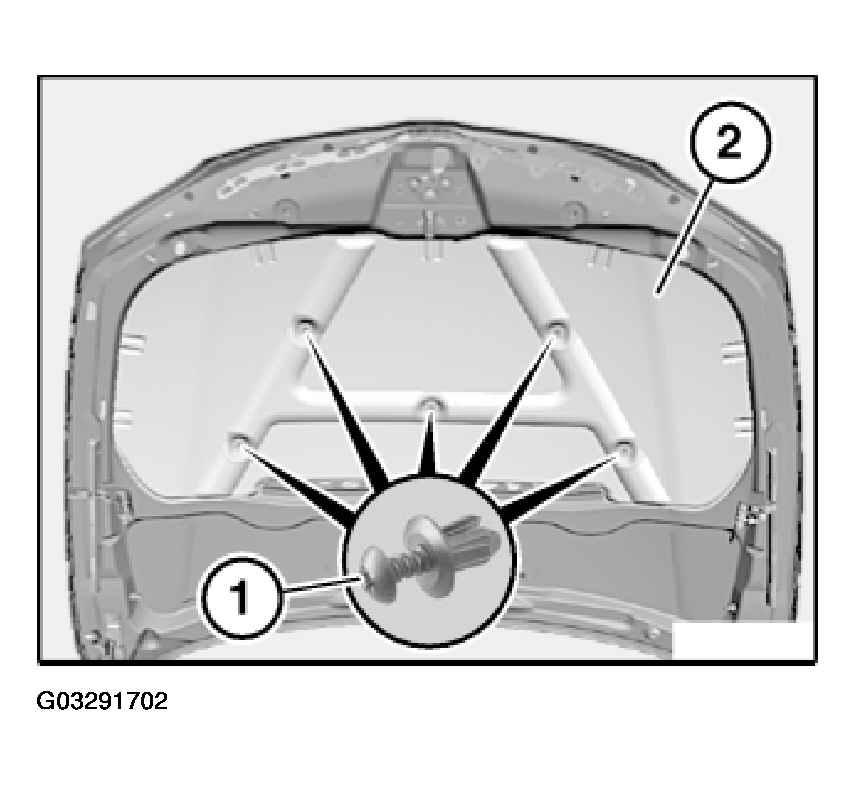

Fig 1: Removing Insulation Lining

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insulation lining (2).
