51 33 000 Removing and installing power window unit in left or right front door: Replacement:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and detach flat motor (2). Tightening torque 51 33 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

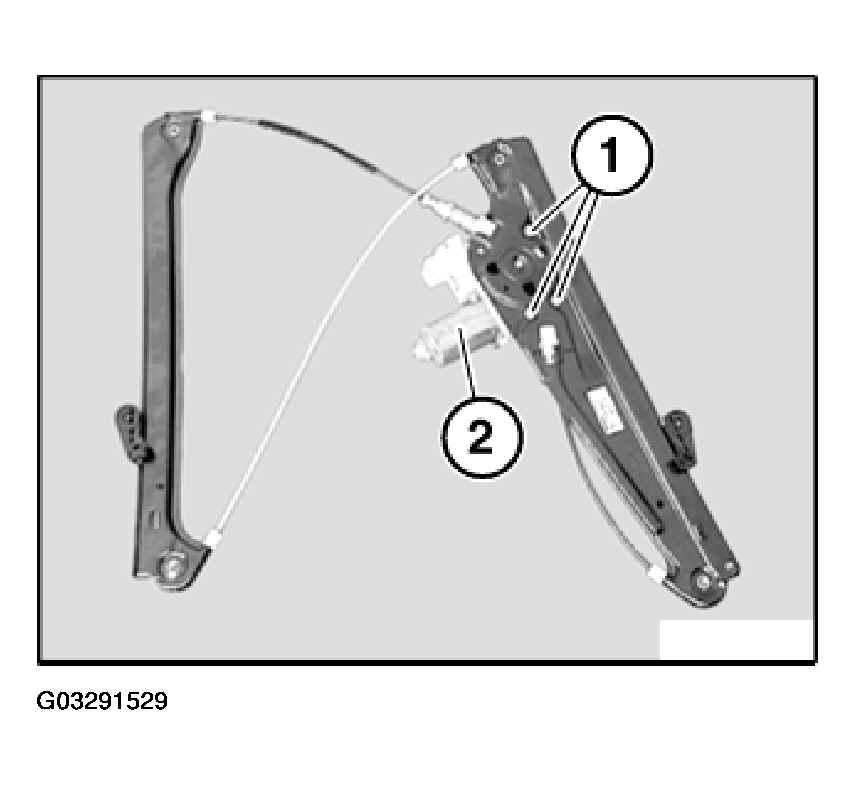

Fig 1: Detaching Flat Motor
G03291529Courtesy of BMW OF NORTH AMERICA, INC.

Initialize power window unit. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
