Air Outlet Trim:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

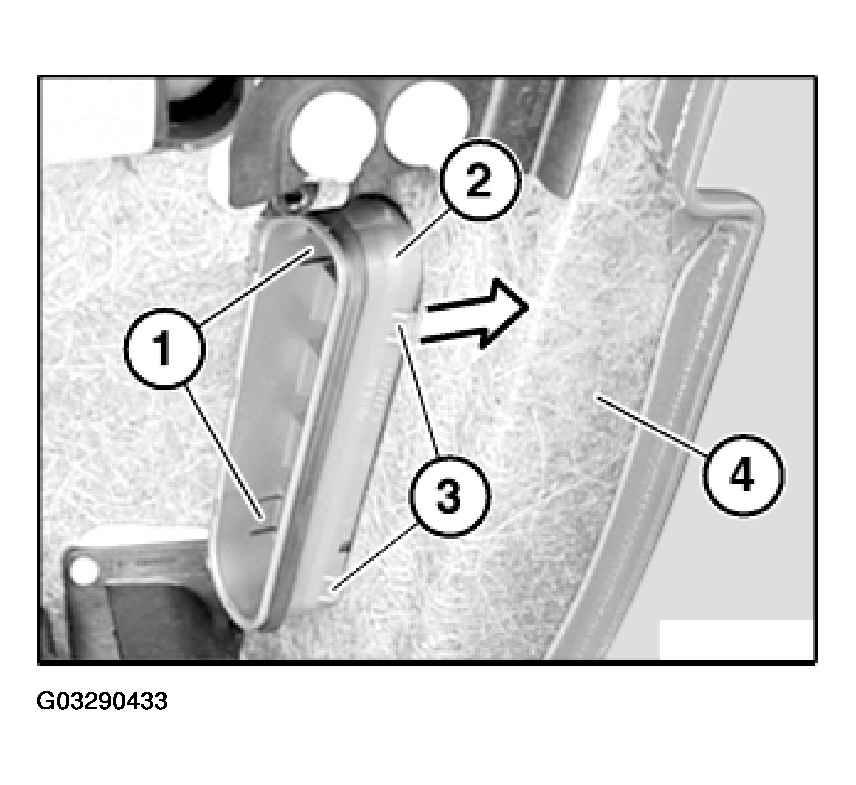

Release locks (1) and lever air outlet trim (2) out of door trim (4).

Fig 1: Removing Air Outlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure locks (1) and guides (3) are correctly seated.

Installation:

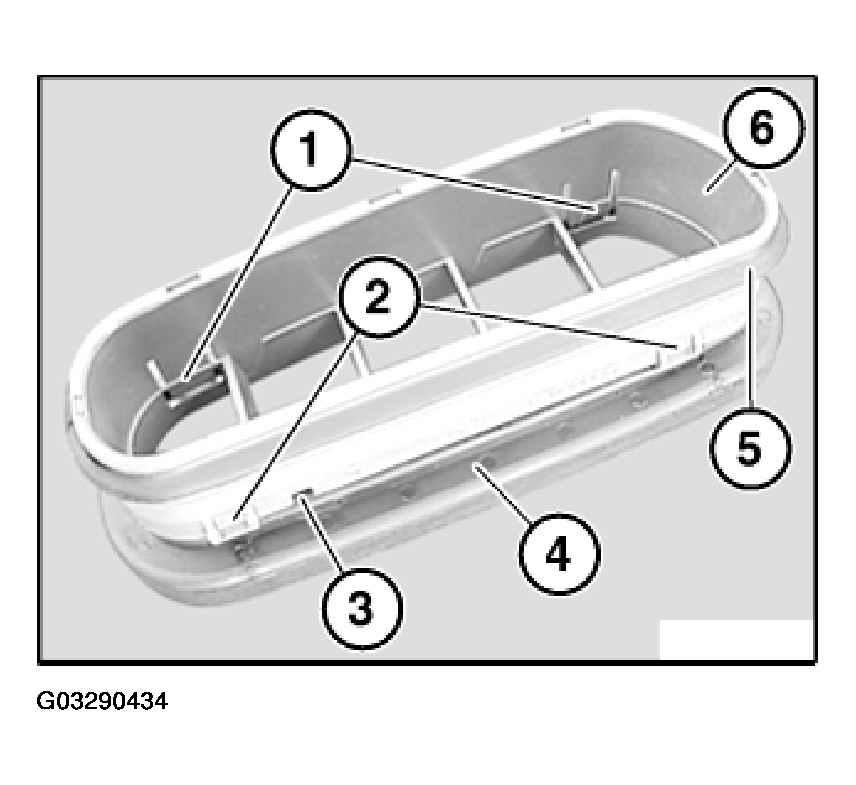

Following parts of air outlet trim (6) must not be damaged:

(1) Locks
(2) Guides
(4) Seal
(5) Seal

Fig 2: Identifying Locks, Seal And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Coding (3) must be correctly seated in air outlet trim (6).
