Air Inlet Trim:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release welded joint (1).

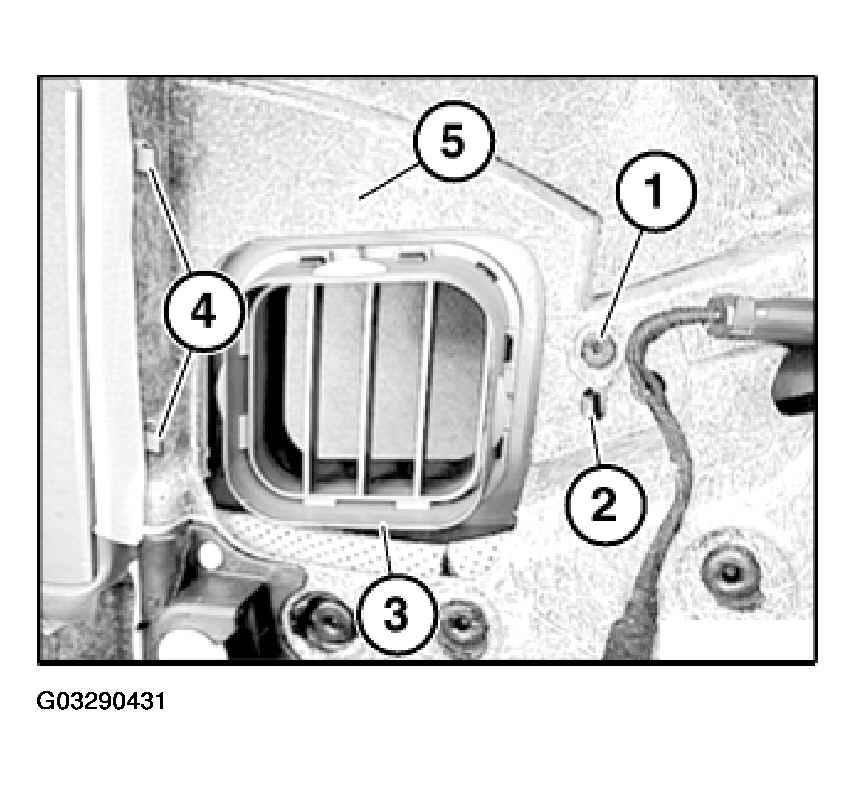

Fig 1: Removing Air Inlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lever air inlet trim (3) out of door trim (5) as follows:

Release lock (2)
Lever out guides (4) of air inlet trim (3) towards front

Installation:

Following parts of air inlet trim (4) must not be damaged:

Guides
Lock

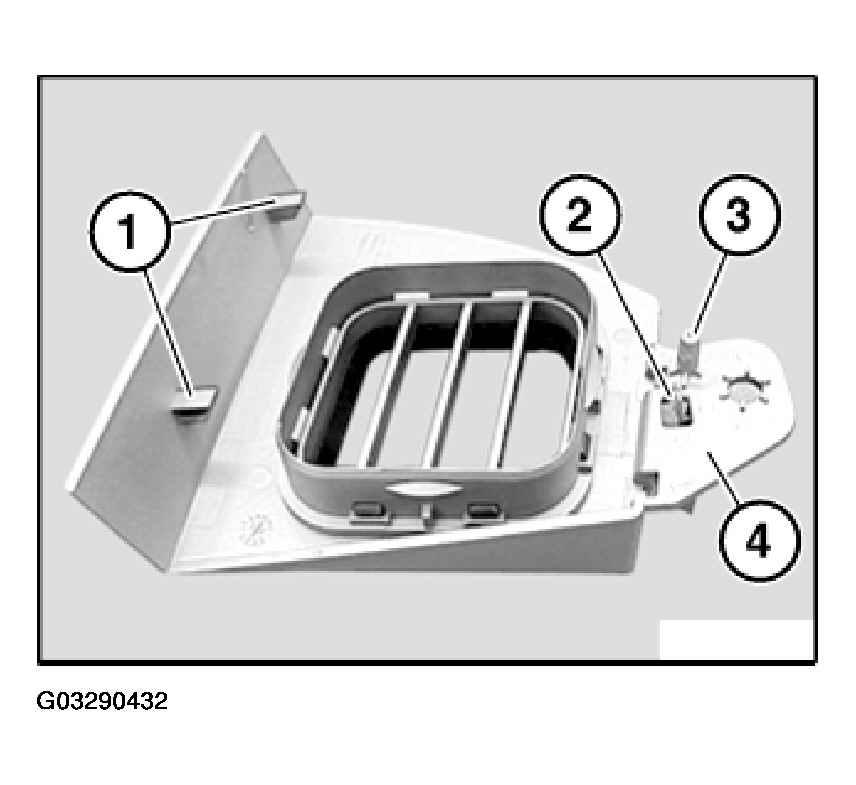

Fig 2: Inserting Air Inlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Insert air inlet trim (4) in reverse order, refer to one work step previously.

Air inlet trim (4) is secured by screwing a metal nut onto plastic pin (3).

Tightening torque 51 41 7AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
