Air Duct:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove air duct (1) from door trim (4) as follows:

  1. At front pull off in direction of arrow from air inlet trim (2)
  2. At rear pull off in direction of arrow from air outlet trim (3)

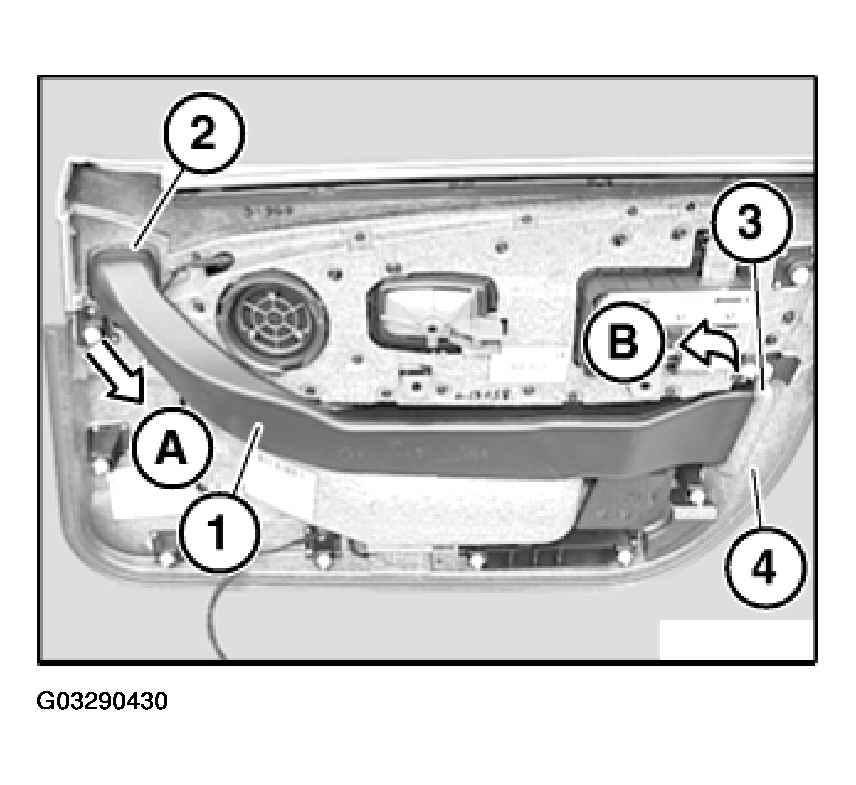

Fig 1: Removing Air Duct From Door Trim
G03290430Courtesy of BMW OF NORTH AMERICA, INC.
