51 41 018 Replacing speaker frame on front left or right door trim panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Detach plastic welded joints (1) and remove speaker frame (2).

Installation:

Foam ring (3) must not be damaged.

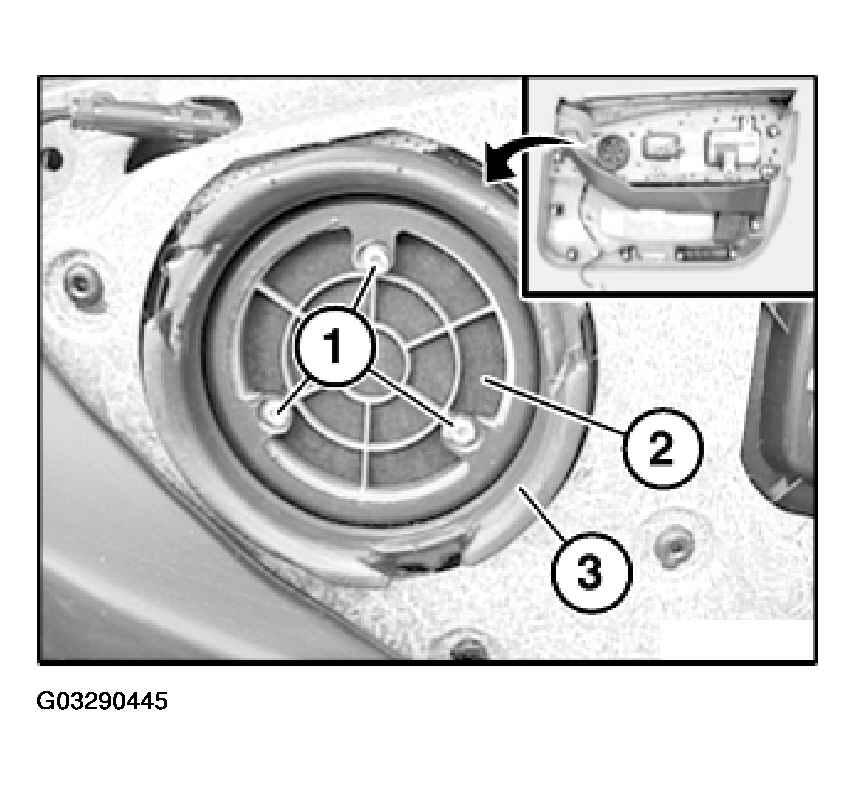

Fig 1: Removing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) on plastic pin (2) is at top.

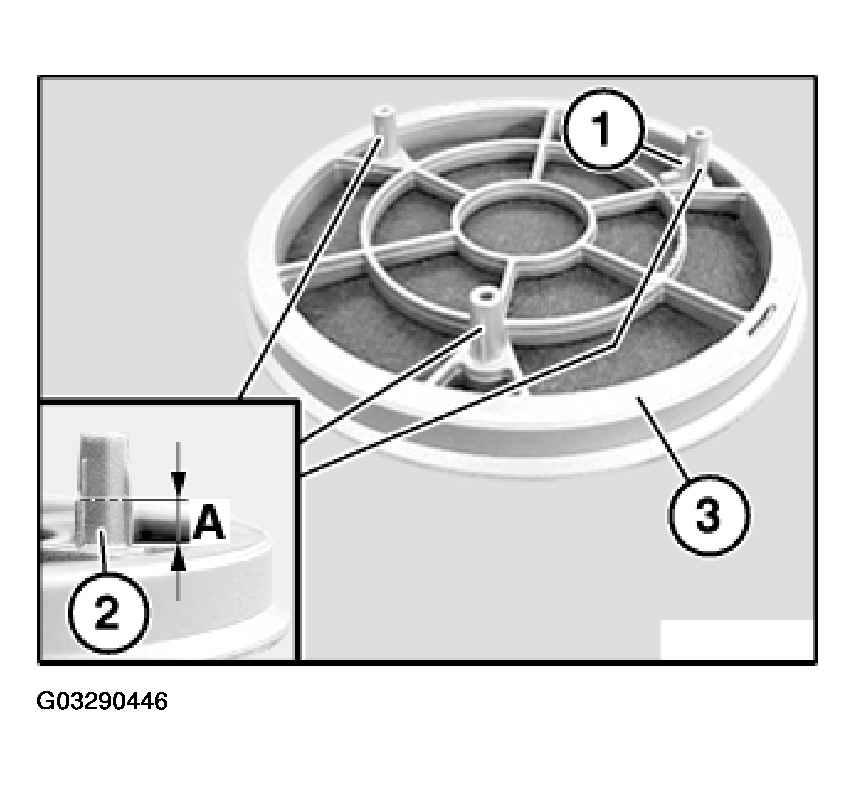

Fig 2: Installing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Shorten all plastic pins (2) down to measurement (A).

Install speaker frame (3) and mount with repair screws.

Tightening torque 51 41 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

A= 4.6_-0.2ace; mm
