51 21... Releasing door retainer from left or right door pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

41 1 120

IMPORTANT: Cover ball head below door retainer (1) (damage to paintwork).

Detach door retainer (1) with special tool 41 1 120 towards top from ball head.

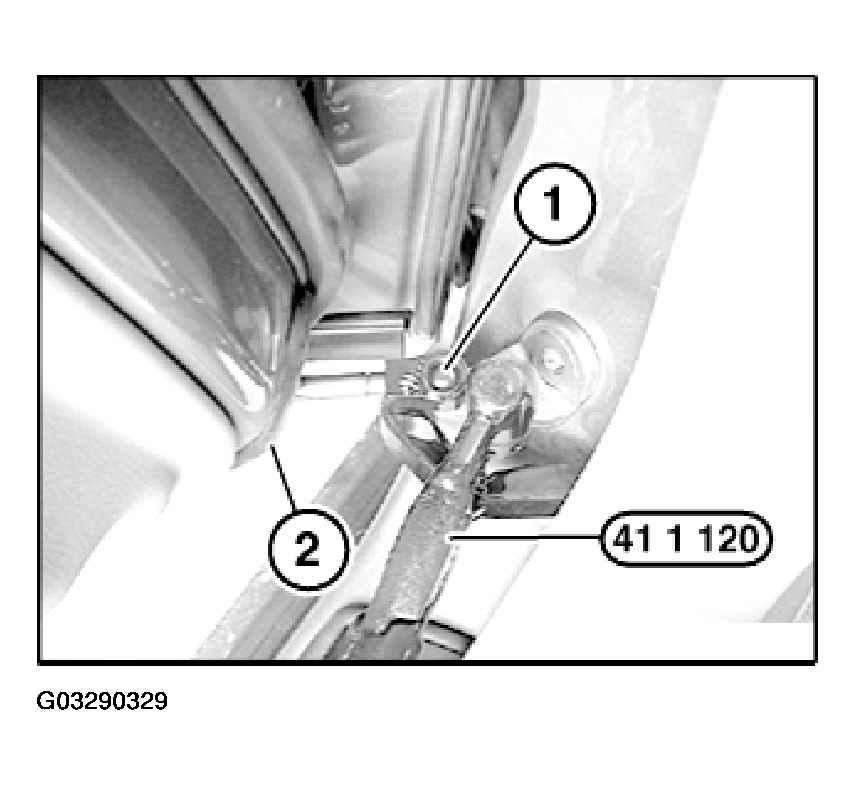

Fig 1: Detaching Door Retainer With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To remove door retainer or door seal, feed out seal (2) inwards.
If necessary, push piston rod into door retainer (risk of damage).

Installation:

Seal must not be damaged.

Door outer skin must be situated between outer lip (1) and inner lip (2).

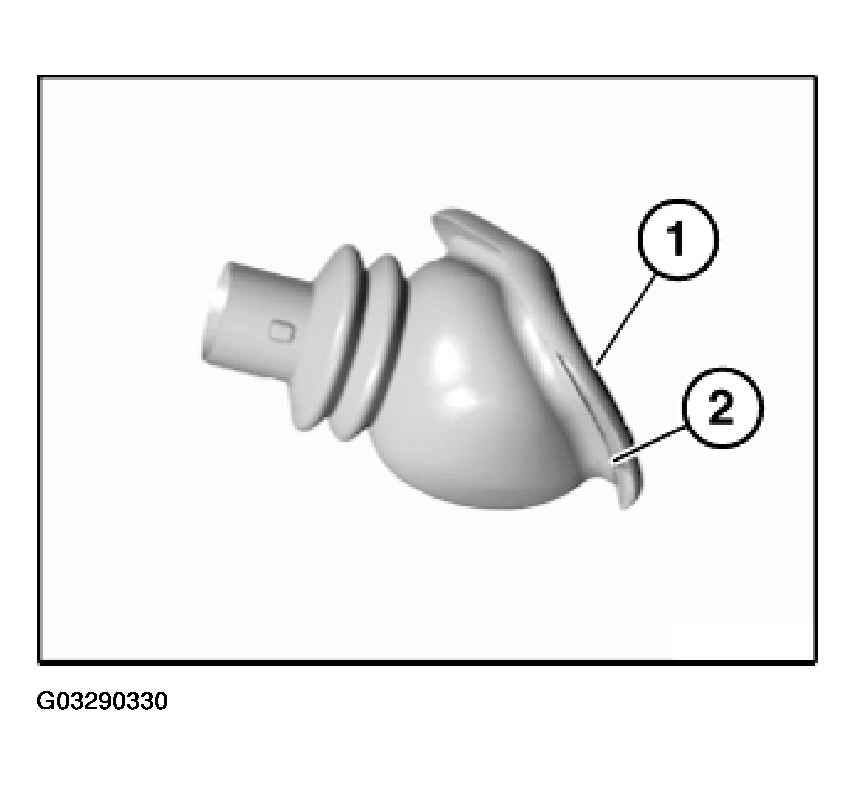

Fig 2: Identifying Outer Lip And Inner Lip

Courtesy of BMW OF NORTH AMERICA, INC.
