51 11... Removing and installing/replacing cover for headlight washer system on left: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove body molding for bumper, refer to 51 11 170 Replacing Body Molding For Left Or Right Bumper

Build date up to 03/2005:

Release screws (1).

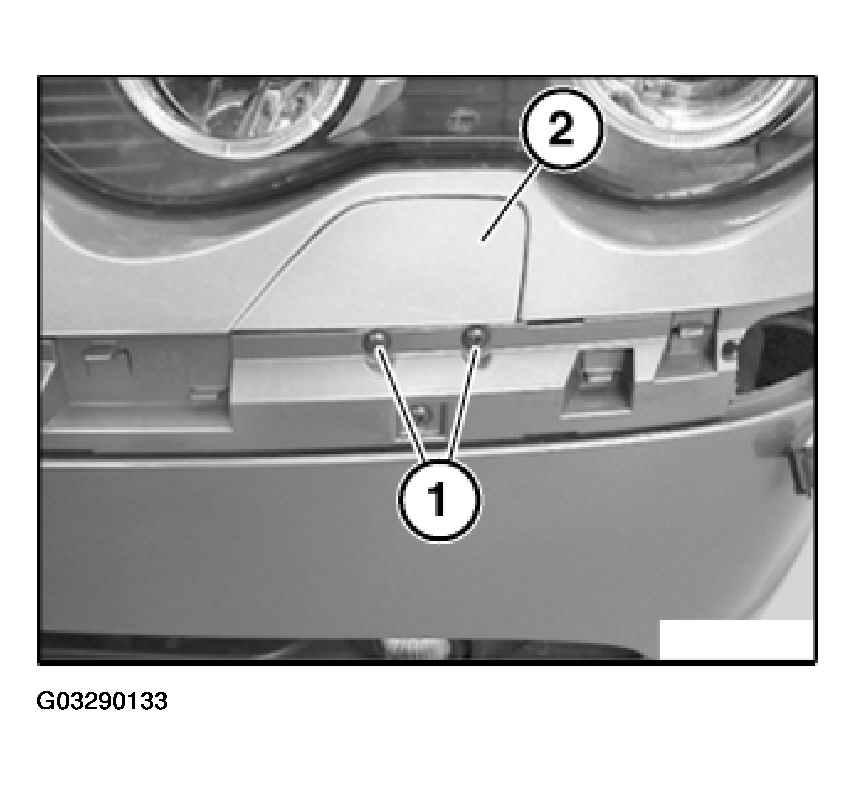

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2) towards top.

Build date from 03/2005:

Release screws (1).

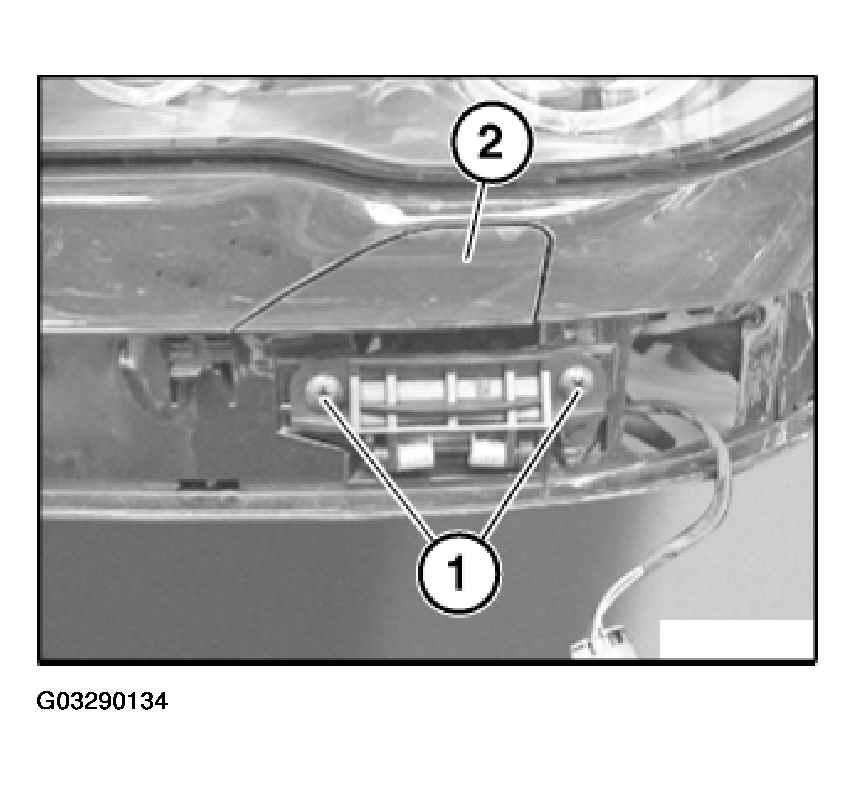

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2) towards front.
