Windlass With Double Coil:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

For use with small windows.

Attach windlass firmly to window so that both coils are turned away from application point of wire

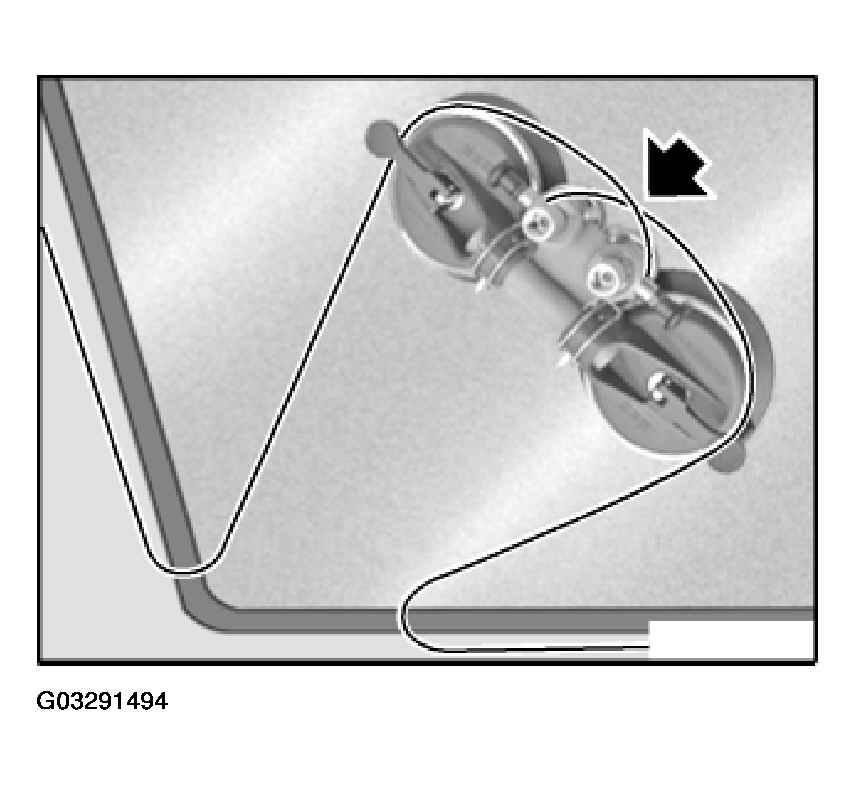

Fig 1: Attaching Windlass Firmly To Window
Courtesy of BMW OF NORTH AMERICA, INC.
Feed either the upper wire end into the lower coil or the lower wire end into the upper coil
Fit reversible ratchet on coil and tension wire
Cut through approx. 10 cm of bonding joint
Feed other wire end into free coil so that the wires cross

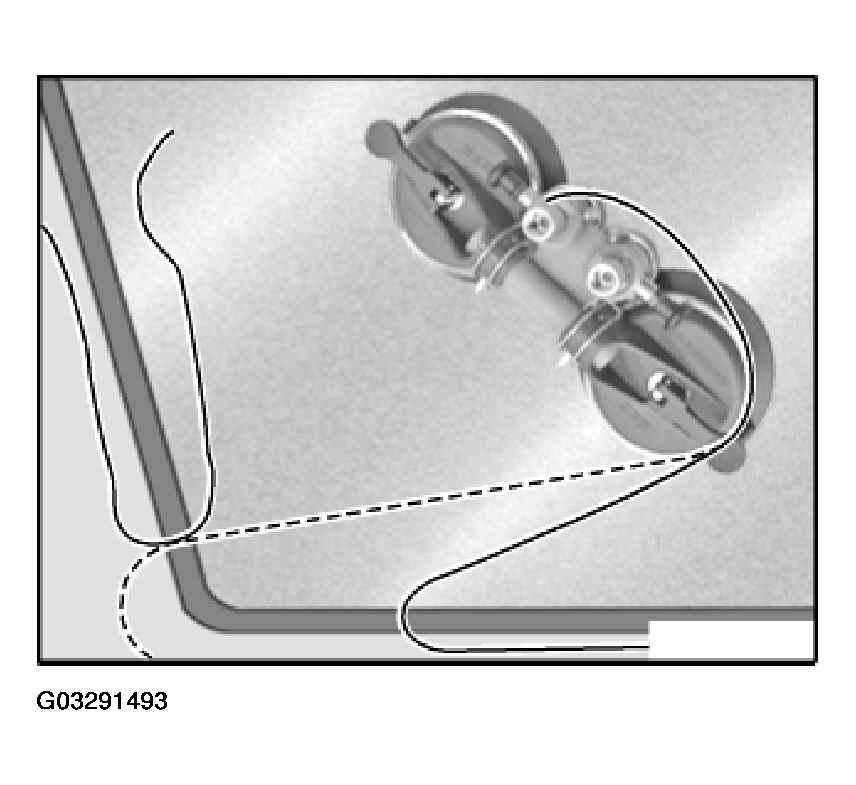

Fig 2: Feeding Other Wire End Into Free Coil
Courtesy of BMW OF NORTH AMERICA, INC.
Continue cutting bonding joint by alternately using the coils
Both wires meet ahead of both coils when removal is completed
Remove "Roll Out 2000"
