Laying Cutting Wire Around Windscreen:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

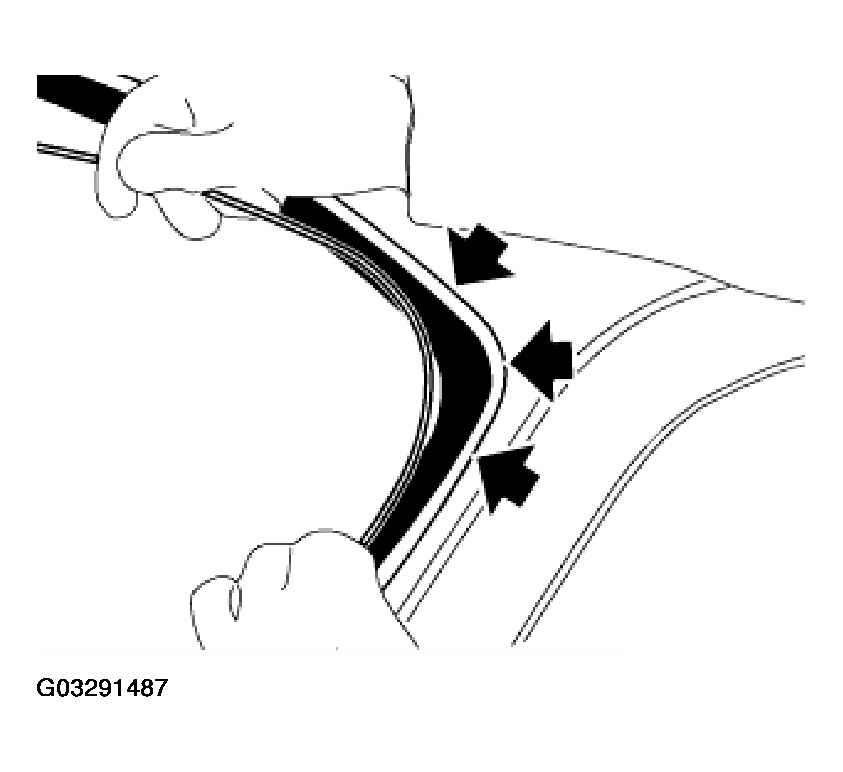

IMPORTANT: Make sure the cutting wire is located at all four corner points below the windscreen.
Check that the cutting wire is not caught on retainers or body.
Secure window on outside with adhesive tape against slipping

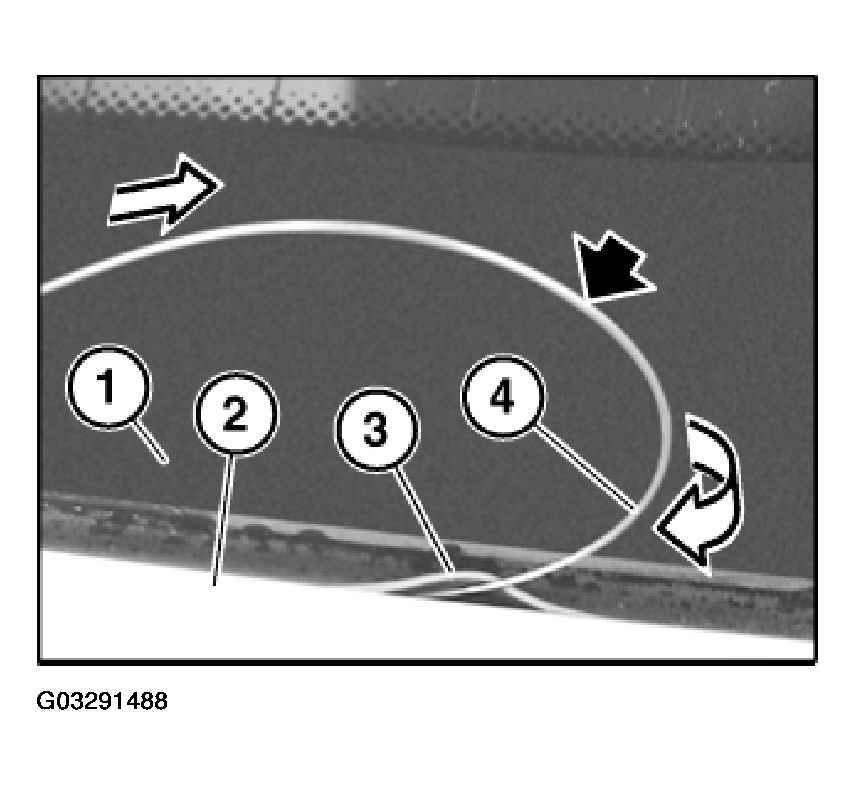

NOTE: Windows (1) with fitted seals (3) or sprayed-on surrounds:
  • Moisten cutting wire (4) and seals (3) on window (1) with water
  • Insert cutting wire (4) in bend (without kinking) between window (1) and body cutout (2)
Fig 2: Inserting Cutting Wire
G03291488Courtesy of BMW OF NORTH AMERICA, INC.
