51 31 241 Replacing rubber frame (top) for rear window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both trim strips from roof frame. Refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT

CAUTION: Rubber frame (1) has an aluminum section insert (2).
Carefully unwind rubber frame (1) (rear window breakage).

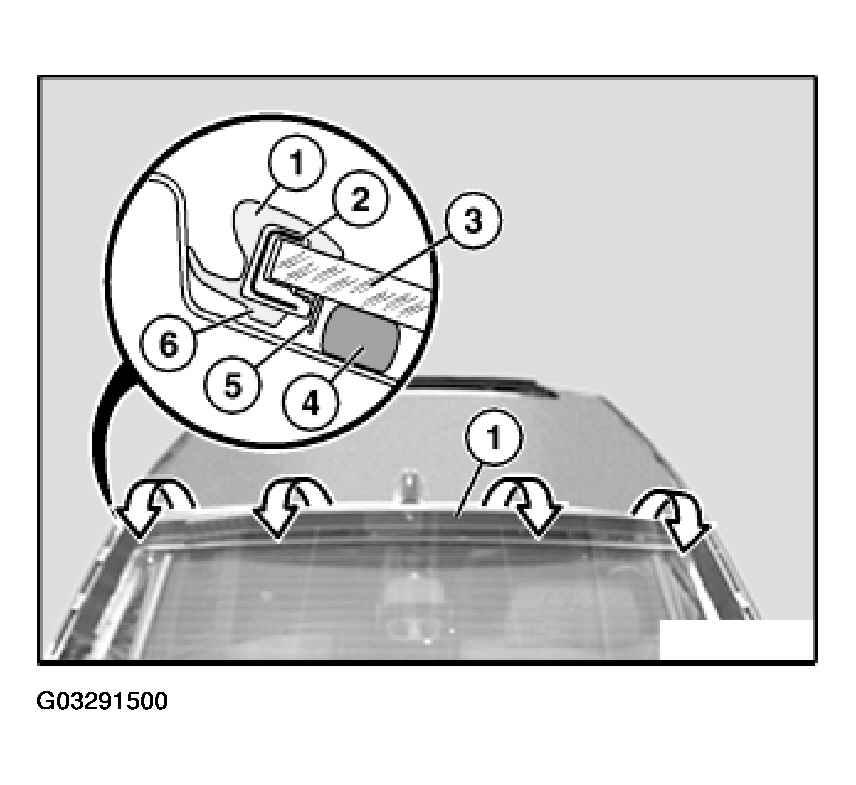

Fig 1: Identifying Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tear-off lip (5) can be bonded to adhesive (4).
When rubber frame (1) is removed, tear-off lip (5) may tear off and remain in vehicle.

(3) Rear window

(6) Bridge

Installation:

There is no tear-off lip (3) in area (A) on left/right.

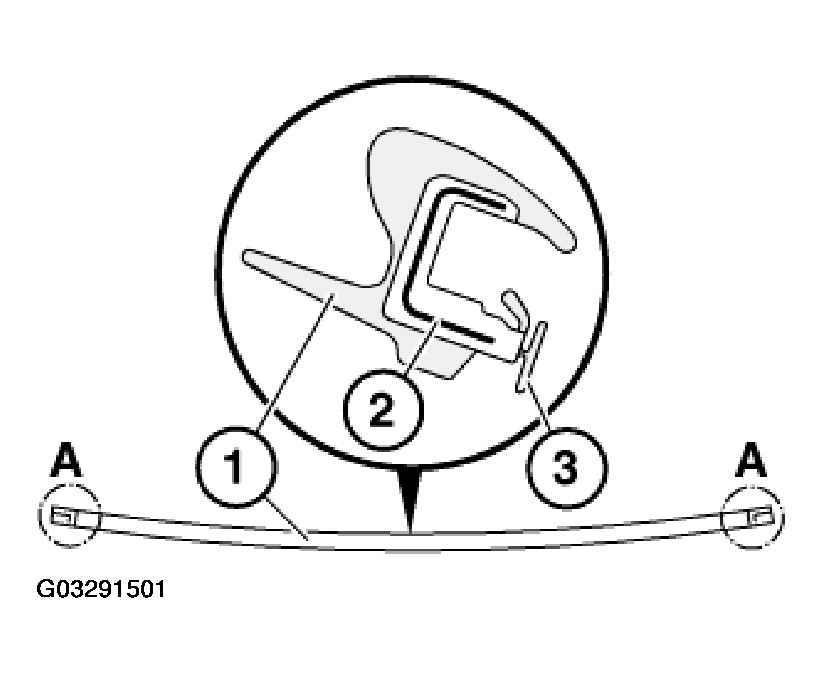

Fig 2: Detaching Tear-Off Lip From Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of rubber frame without rear window removal:

Detach tear-off lip (3) from rubber frame (1).

If adhesive above tear-off lip (3) has managed to get onto bridge, this area must be cut out partially.

To facilitate installation, moisten rubber frame (1) and body cutout with water.

Replacement of rubber frame with removed or new rear window:

Fit rubber frame (1) with tear-off lip (3).

(2) Aluminum strip
