51 31 021 Removing and installing / replacing rubber frame for windscreen (top): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both trim strips on roof frame, refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT

IMPORTANT: Rubber frame (1) features an aluminum section inlay (2).
If necessary, detach adhesive tape (8) between rubber frame (1) and roof outer skin.
Remove the 4 fitted spacer buffers (7).
Carefully wind out rubber frame (1) (windscreen breakage).

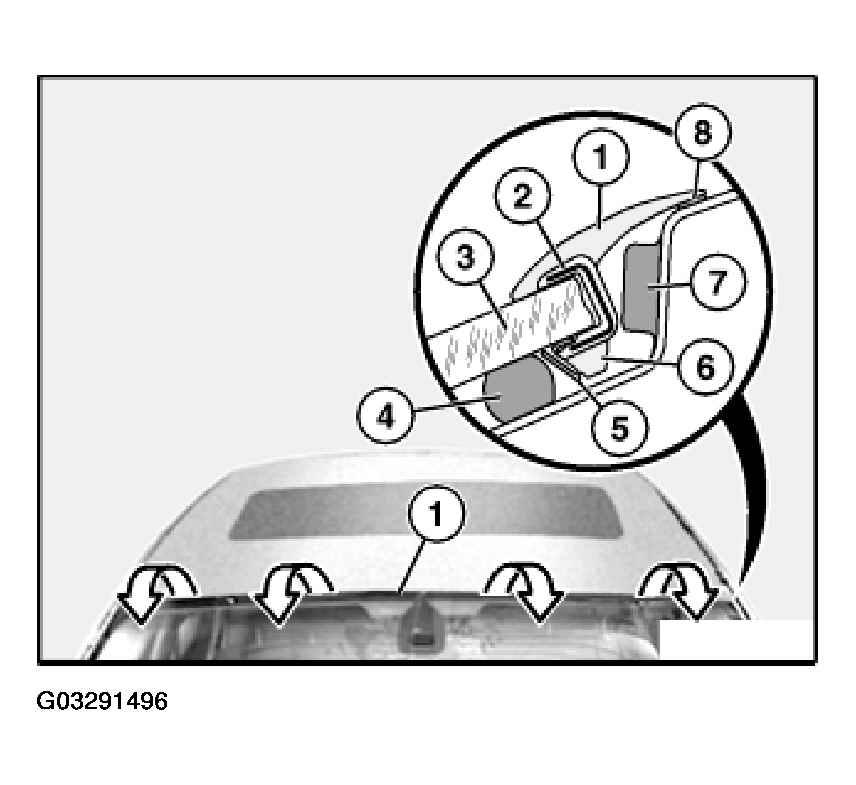

Fig 1: View Of Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tear-off lip (5) may be stuck to adhesive (4).
When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

(3) Windscreen

(6) Bridge

Installation:

If necessary, remove adhesive residue from roof outer skin.

After installing rubber frame, fit 4 new spacer buffers (1) *:

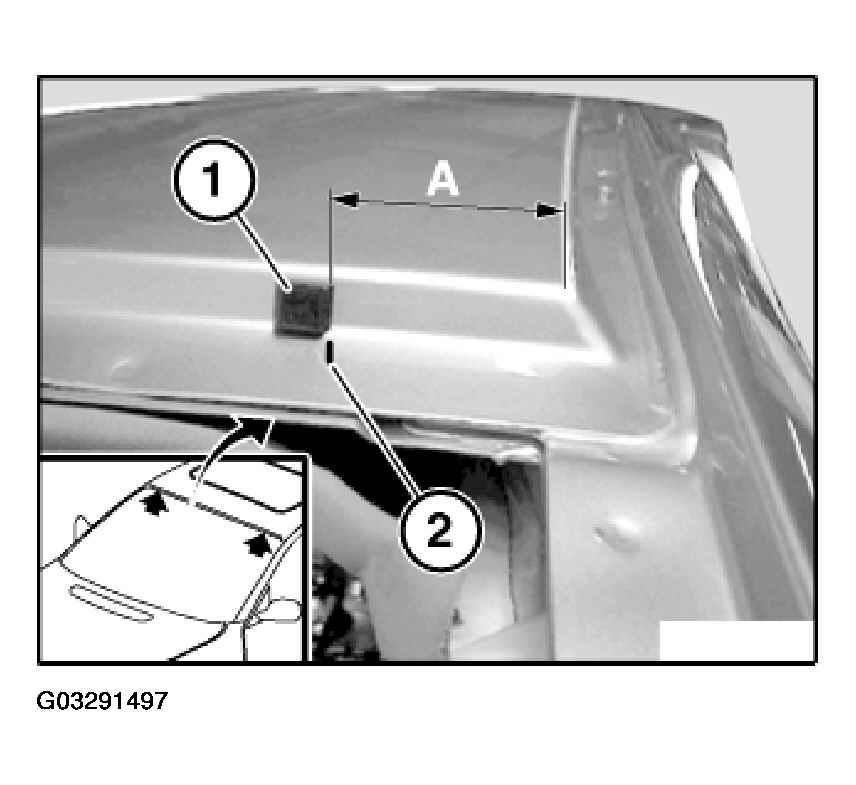

Fig 2: Identifying Spacer Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

Shape B** in mm, square 12.7 x 10 x 3.8h
150 mm and 450 mm on left/right from centre

* Sourcing reference: BMW Parts Service

** Repair kit for windscreens
