Installation Of Rubber Frame Without Removed Windscreen:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

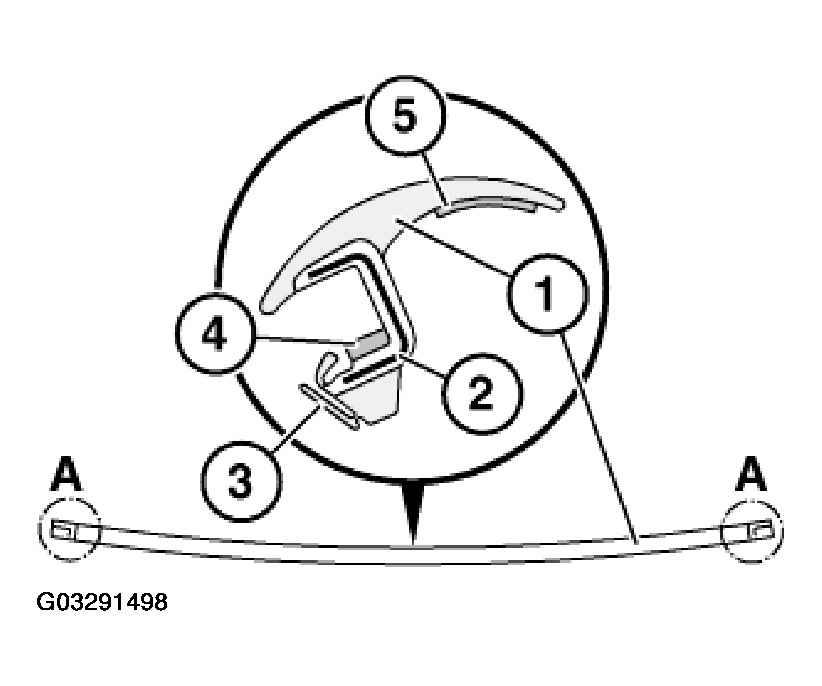

There is no tear-off lip (3) in area (A) on left/right.
Detach tear-off lip (3) from rubber frame (1).
If adhesive leaks over tear-off lip (3), this area must be cut out partially.
To facilitate installation, coat rubber frame (1) and body cutout with water.
Install rubber frame (1).
If necessary, pull liner* off adhesive tape (5) and press rubber frame (1) down firmly on roof outer skin.
(2) Aluminum strip
(4) Butylene tape
* Liner is the protective film on adhesive tape (5).
