Installation Of Rubber Frame With Removed Or New Windscreen:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

There is no tear-off lip (3) in area (A) on left/right.

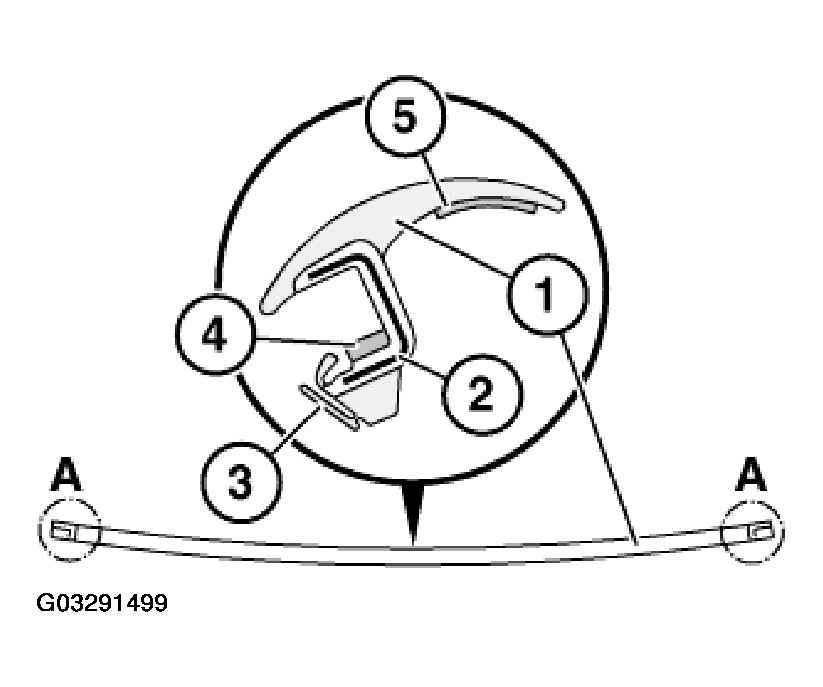

Fig 1: Fitting Rubber Frame With Tear-Off Lip

Courtesy of BMW OF NORTH AMERICA, INC.

Fit rubber frame (1) with tear-off lip (3).

After installing windscreen: If necessary, pull liner* off adhesive tape (5) and press rubber frame (1) down firmly on roof outer skin.

(2) Aluminum strip

(4) Butylene tape

* Liner is the protective film on adhesive tape (5).
