51 47 490 Removing and installing / replacing front underbody protection: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release expansion rivet (1).

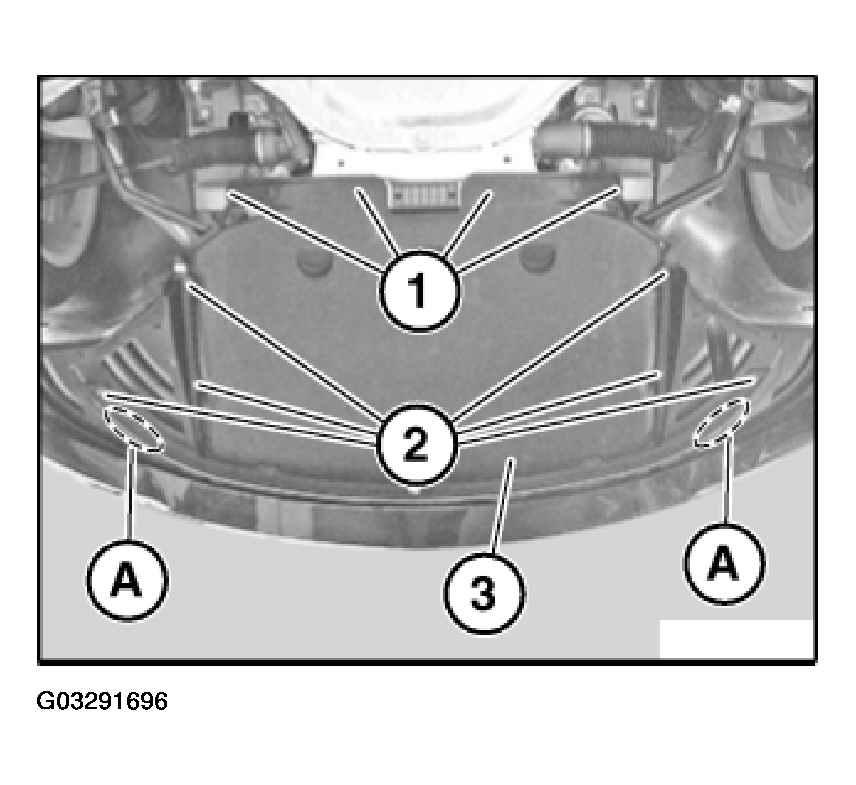

Fig 1: Removing Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and then catches in area (A).

Remove underbody protection (3) towards rear.

Installation:

Ensure correct seating.

Centre underbody protection (3) and secure.

Version with bad weather package:

Release screws (1).

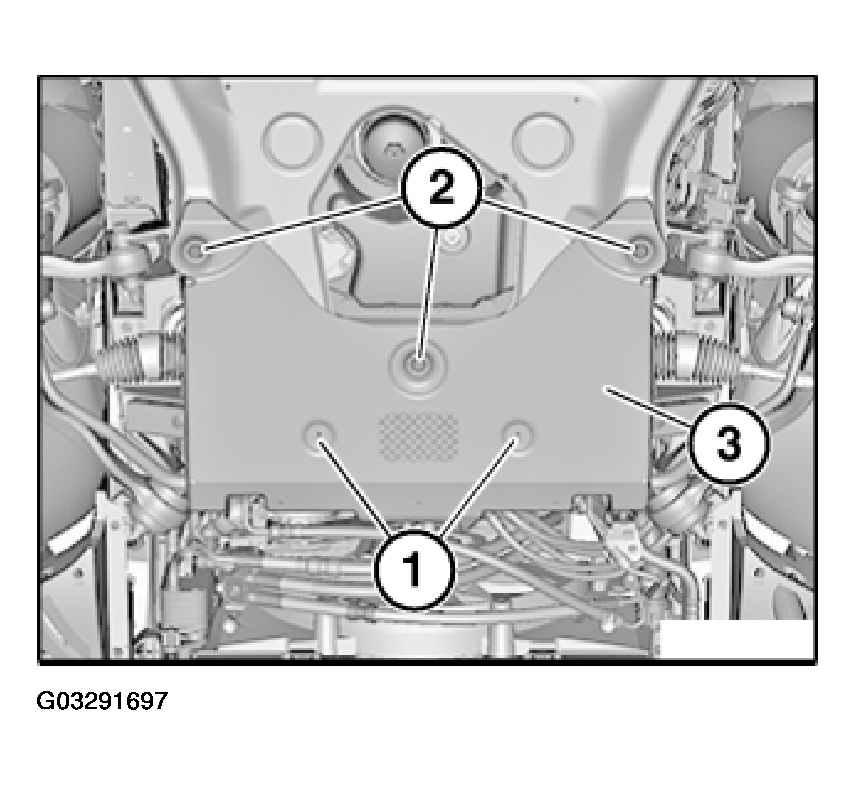

Fig 2: Removing Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove underbody protection (3) downwards

Installation:

Replace screws (2).

Tightening torque, 56 Nm with Torque angle of 90°.
