51 72 000 Replacing mucket for left or right front door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front entrance cover strip, refer to 51 47 000 REMOVING AND INSTALLING / REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT

Release screw (1).

Remove ventilation grille (2) from B-pillar (3).

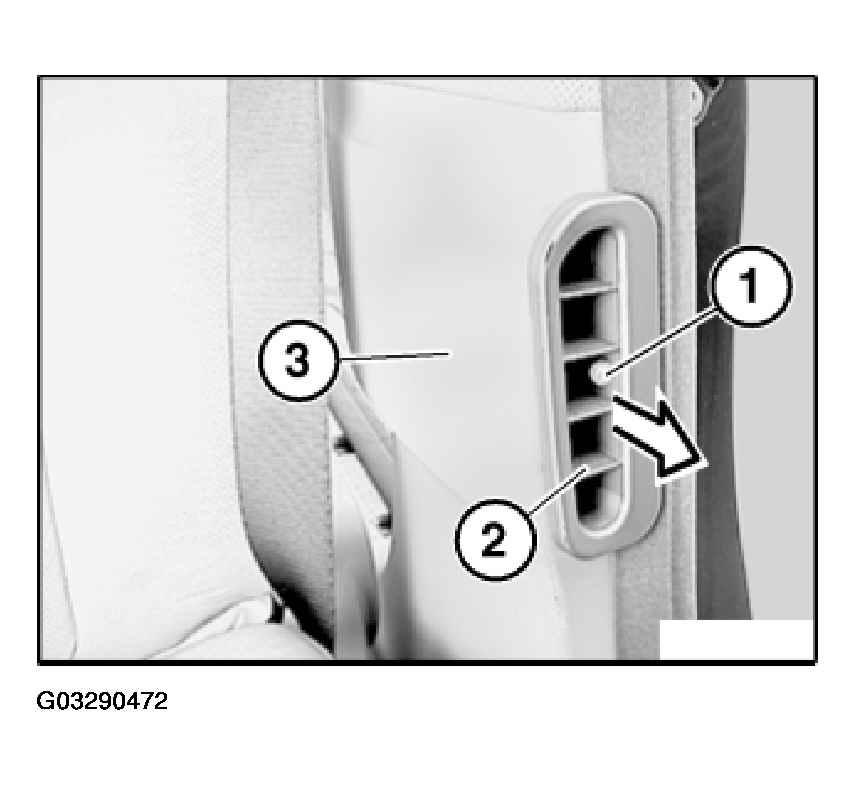

Fig 1: Removing Ventilation Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket (1).

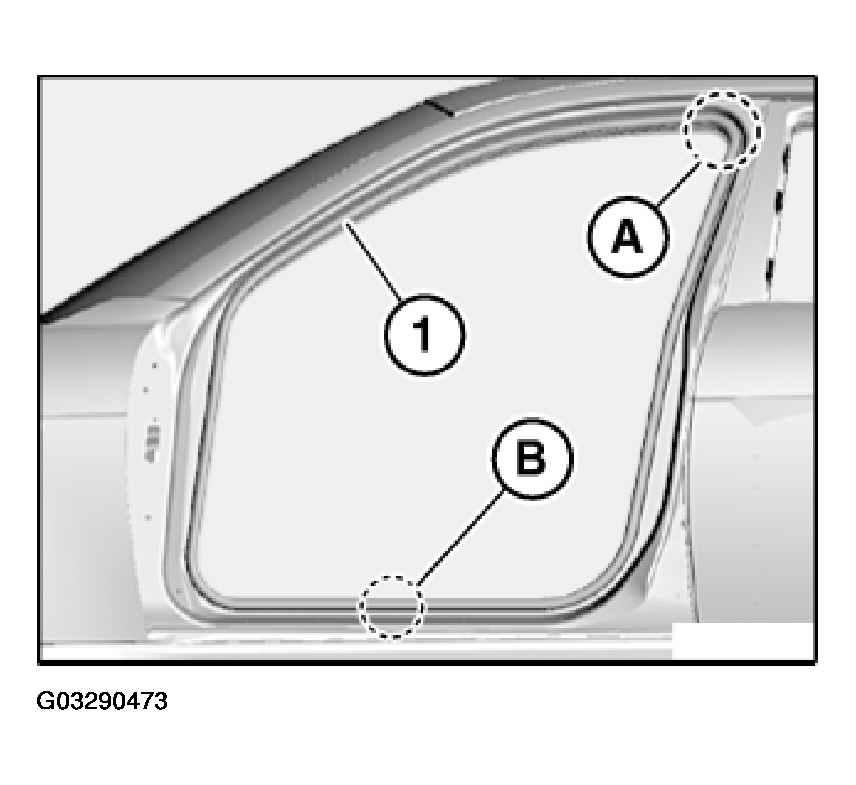

Fig 2: View Of Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Muckets (1) for left and right sides are identical parts and are distinguished by OR/OL markings.

OR marking for right side
OL marking for left side

Attach mucket (1) with OR or OL marking starting in area "A".

When installed, the location of joint of mucket (1) must be in area "B".

Pull off mounting cord starting in area "B".
