51 14... Instructions for attaching number/letter designation combination: Removing:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Coat nylon string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1) from rear lid (2).

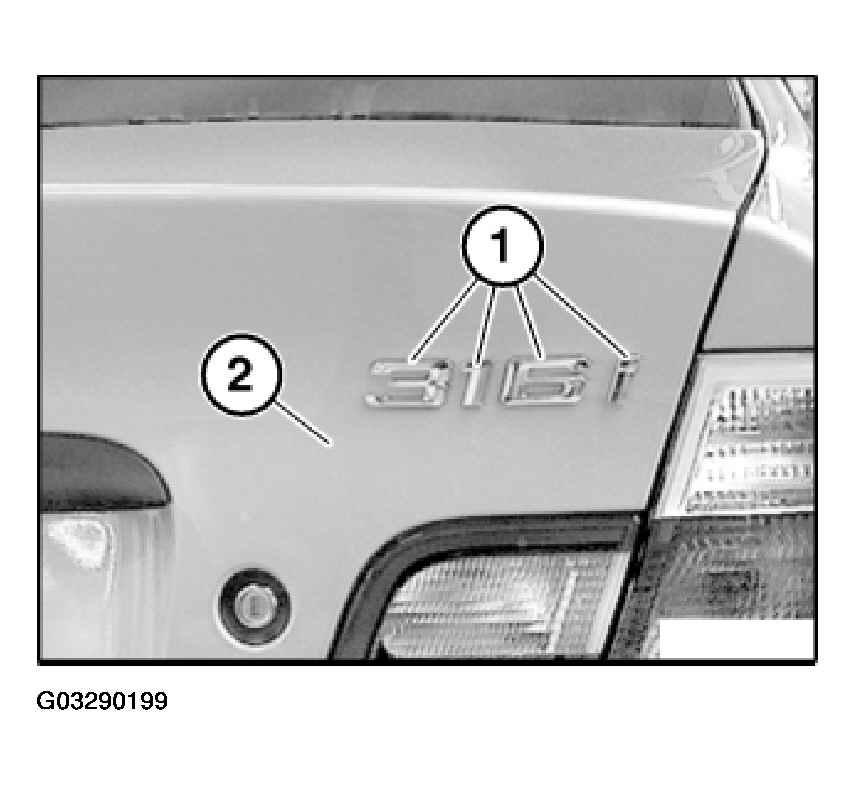

Fig 1: Removing Model Designation From Rear Lid
G03290199Courtesy of BMW OF NORTH AMERICA, INC.

Remove remainder of adhesive layer with adhesive remover.
