51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

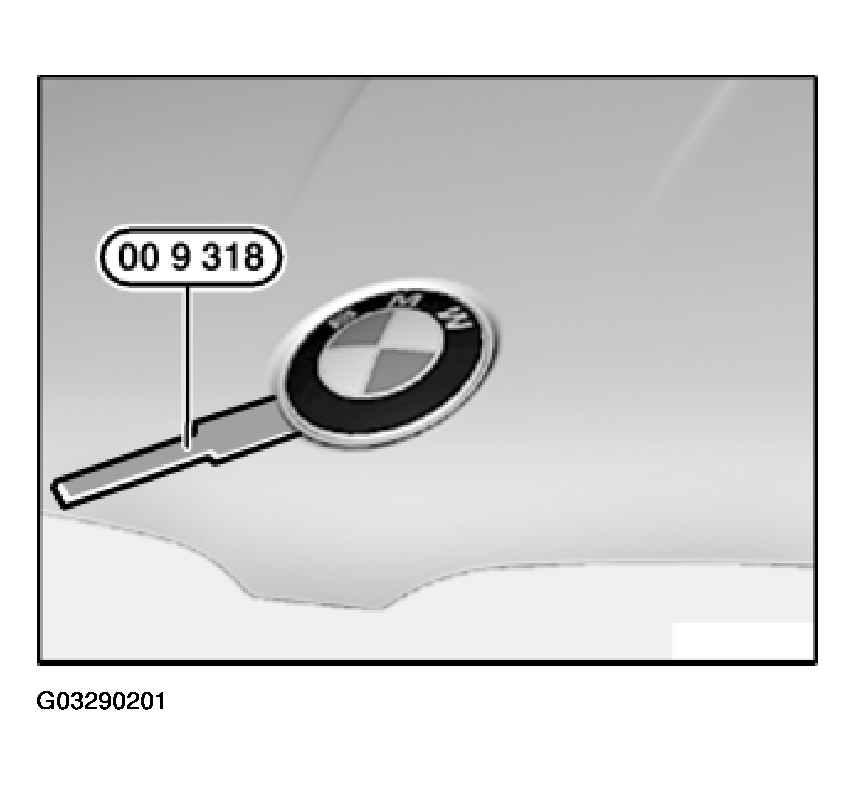

Lever out badge with special tool 00 9 318 and remove towards top.

Fig 1: Removing Badge
G03290201Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

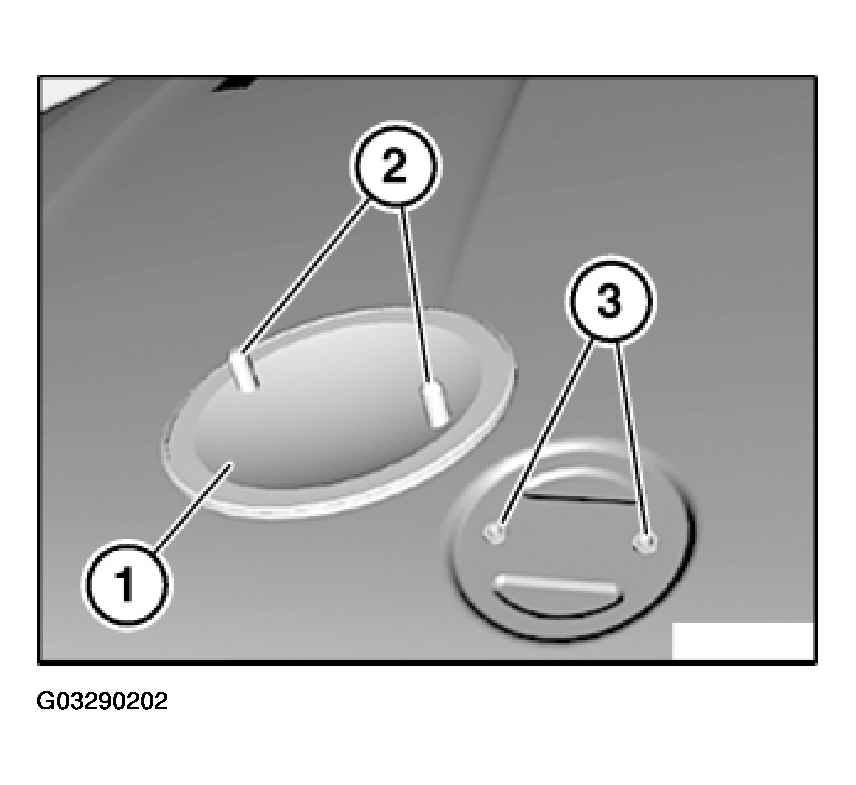

Following parts of badge (1) must not be damaged or missing:

2 Guide pins

3 Grommets

Fig 2: Identifying Guide Pins And Grommets
G03290202Courtesy of BMW OF NORTH AMERICA, INC.
