36 11 522 Removing and installing/replacing front receiving antenna for RDC

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Observe safety instructions on raising the vehicle. Refer to 00 .. ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Front left

Remove front left wheel arch trim (1).

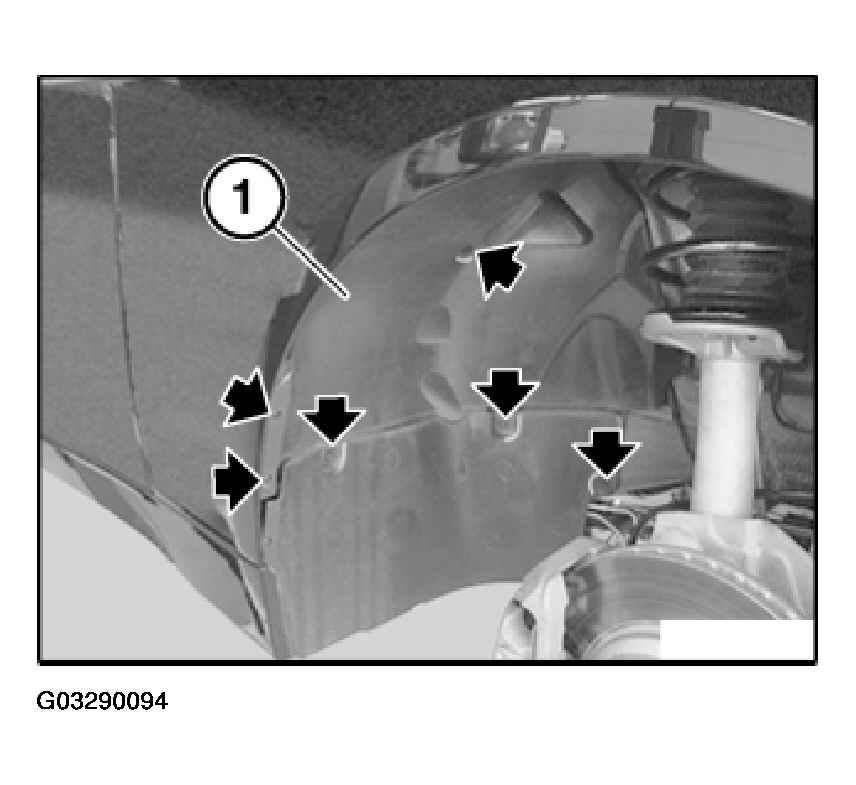

Fig 1: Removing Front Left Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Front right

Partially detach front right wheel arch trim (1).

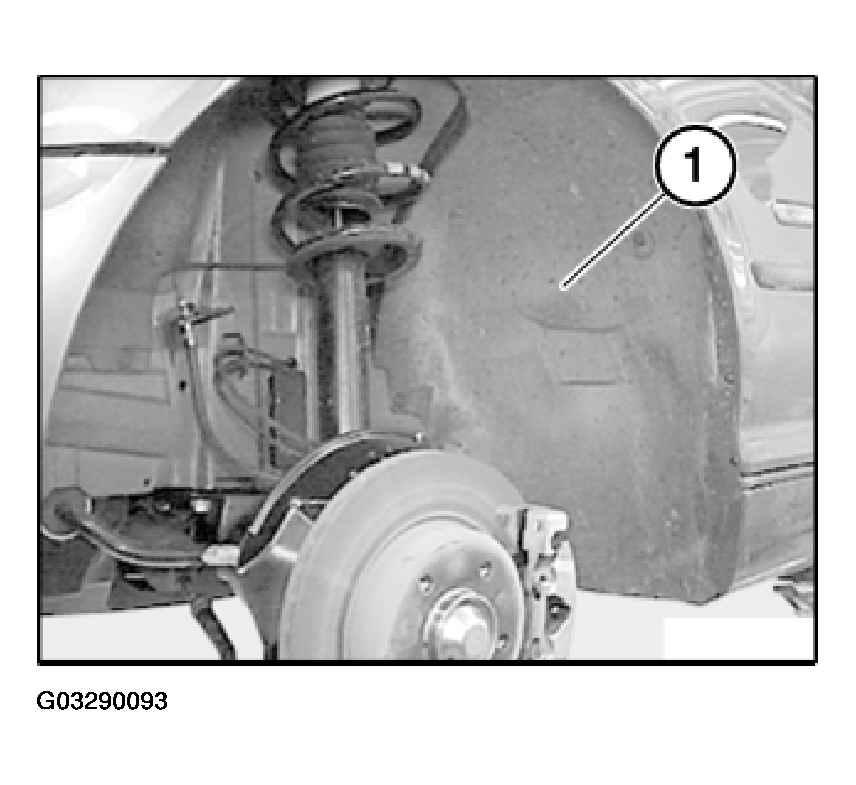

Fig 2: Detaching Front Right Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operations for removing and installing receiving antenna at front left or right are identical.

Unfasten plug connection (1) and disconnect.

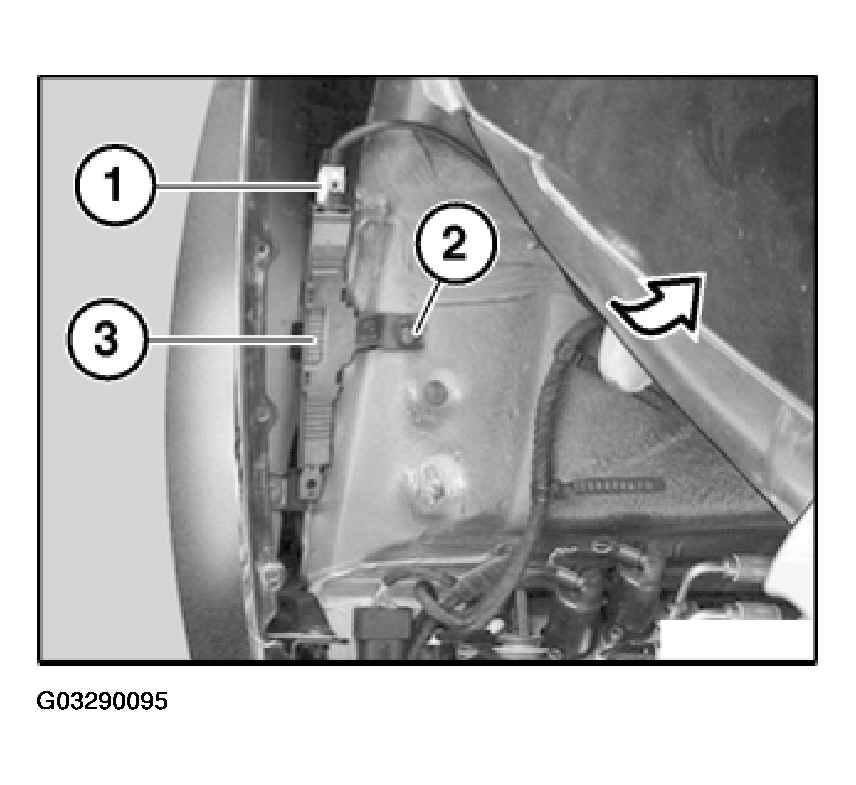

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screw (2) and remove receiving antenna (3) to left or right.
