35 40 001 Removing and installing/replacing accelerator pedal module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew screw.

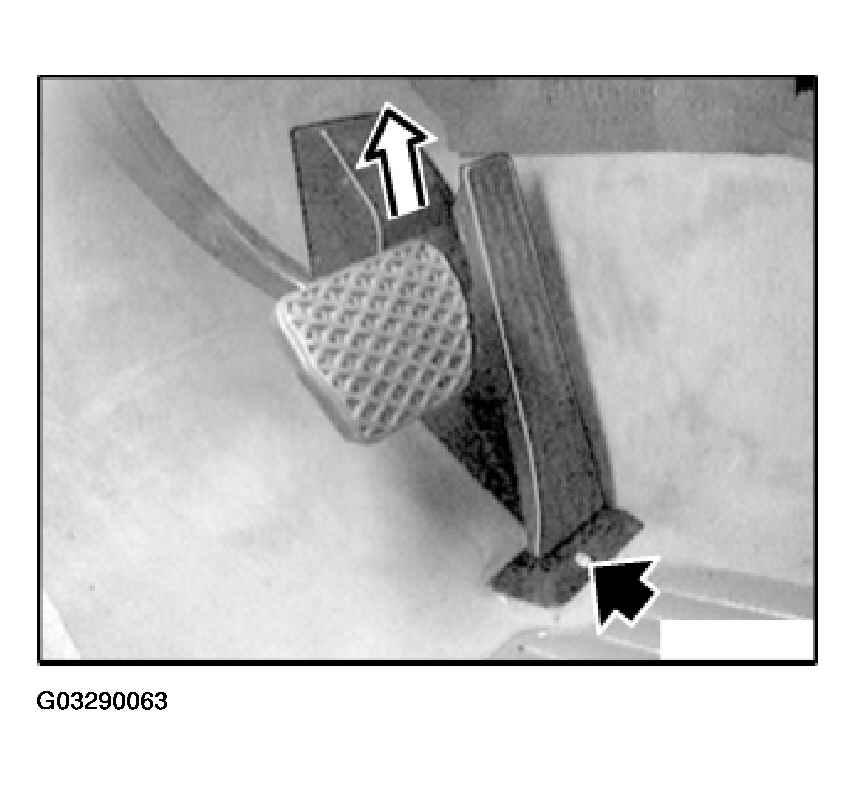

Fig 1: Pulling Accelerator Pedal Module Up

Courtesy of BMW OF NORTH AMERICA, INC.

Pull accelerator pedal module upwards out of fixture.

Installation:

Tightening torque, 35 40 1AZ. Refer to PEDALS - TIGHTENING TORQUES .

Pull off plug (1).

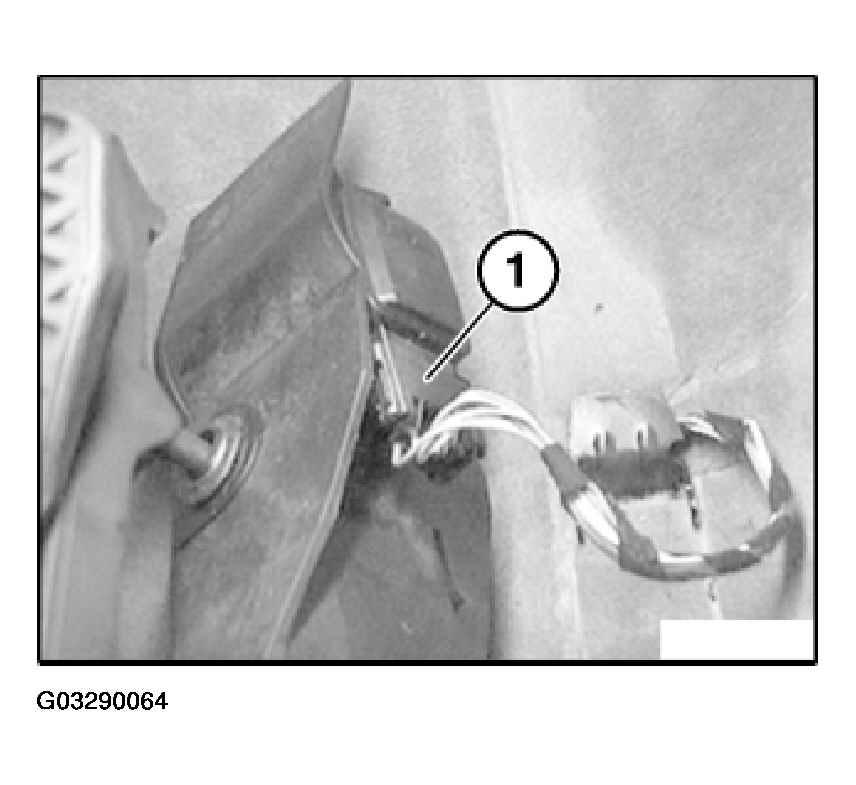

Fig 2: Removing Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

Remove accelerator pedal module.

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
