17 11 370 Removing and installing/replacing cooling loop for power steering

Remove design cover.

Remove fan clutch.

Remove fan cowl. Refer to 17 11 031 Replacing fan cowl (N62) .

Remove front underbody protection.

Recycling:

Catch and dispose of hydraulic fluid.

Observe country-specific waste-disposal regulations.

Draw off hydraulic fluid.

Installation:

Top up hydraulic fluid.

Bleed power steering. Refer to BLEEDING POWER STEERING SYSTEM .

Check fluid level in power steering fluid reservoir; top up if necessary.

Unlock connection (1) on left and detach.

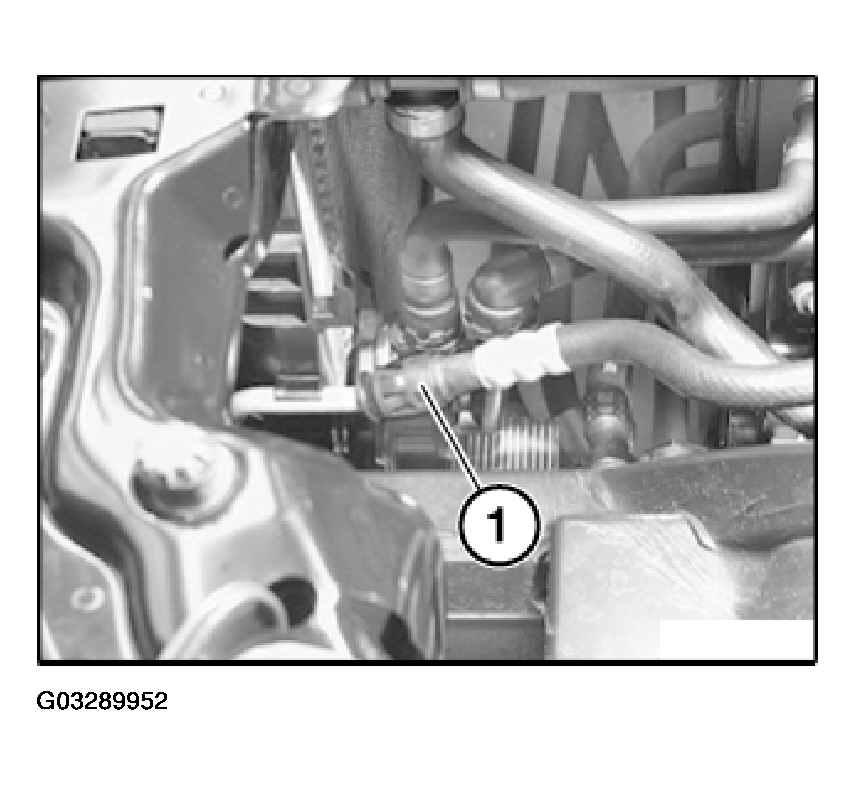

Fig 1: Unlocking Connection On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connection (1) on right and detach.

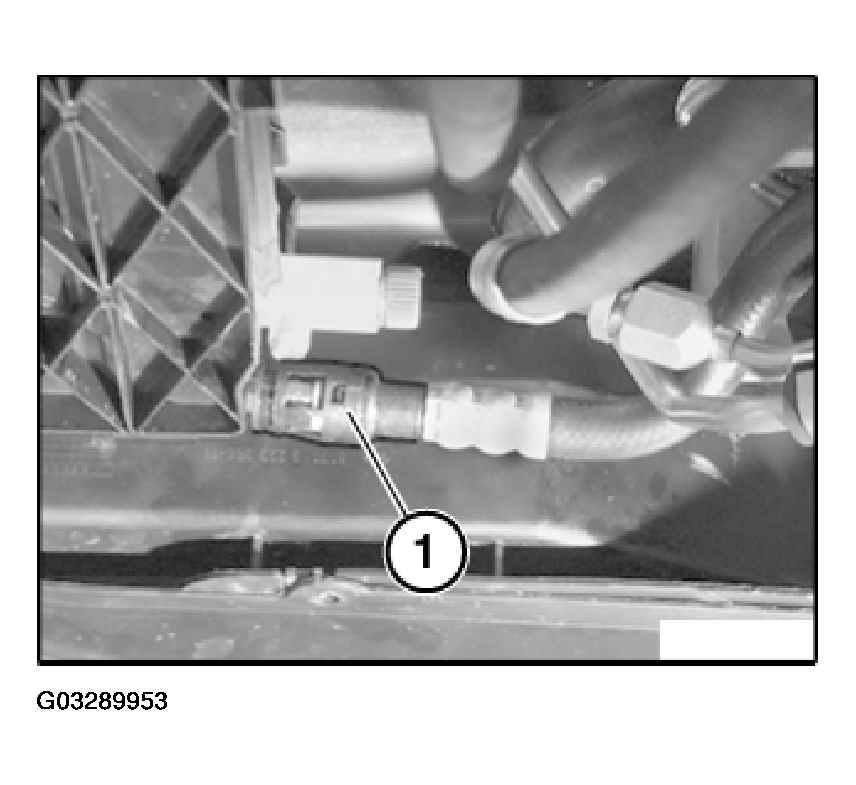

Fig 2: Unlocking Connection On Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove module carrier (1) with radiator and A/C condenser from rubber mounts and push at bottom approx. 5 cm towards rear.

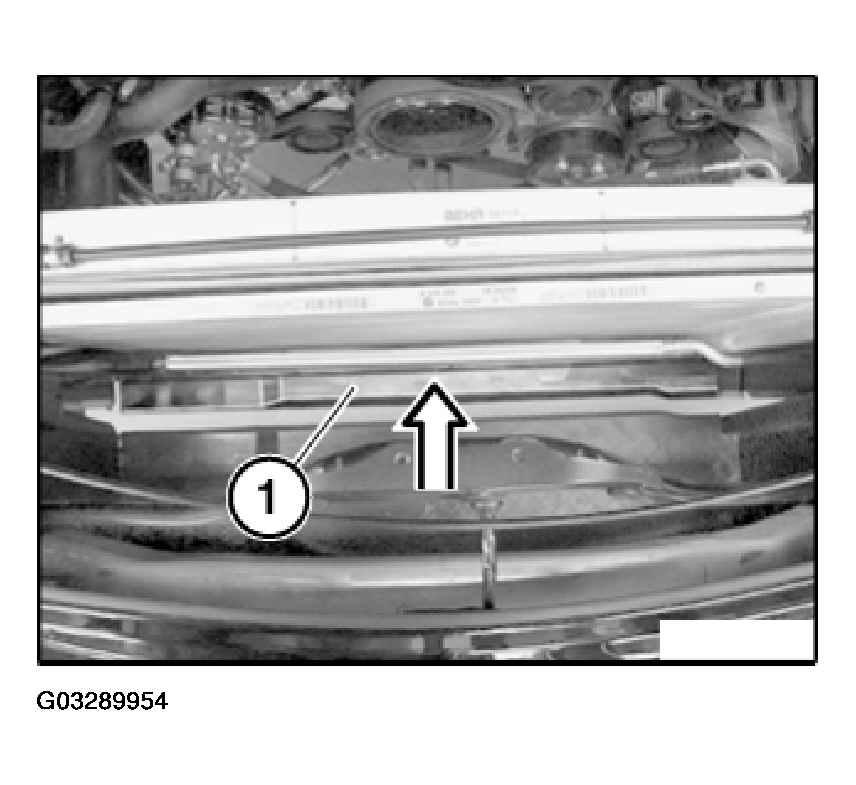

Fig 3: Removing Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber mounts fall out easily, ensure correct installation position.

Release retaining clip (1) on left.

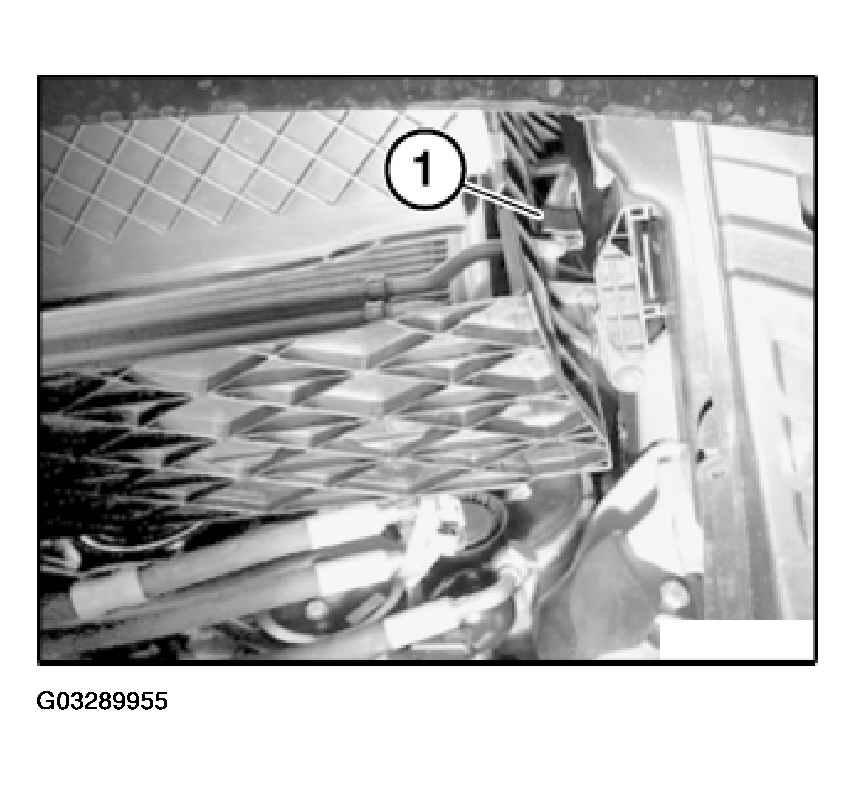

Fig 4: Releasing Retaining Clip On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1) on right.

Fig 5: Releasing Retaining Clip On Right

Courtesy of BMW OF NORTH AMERICA, INC.

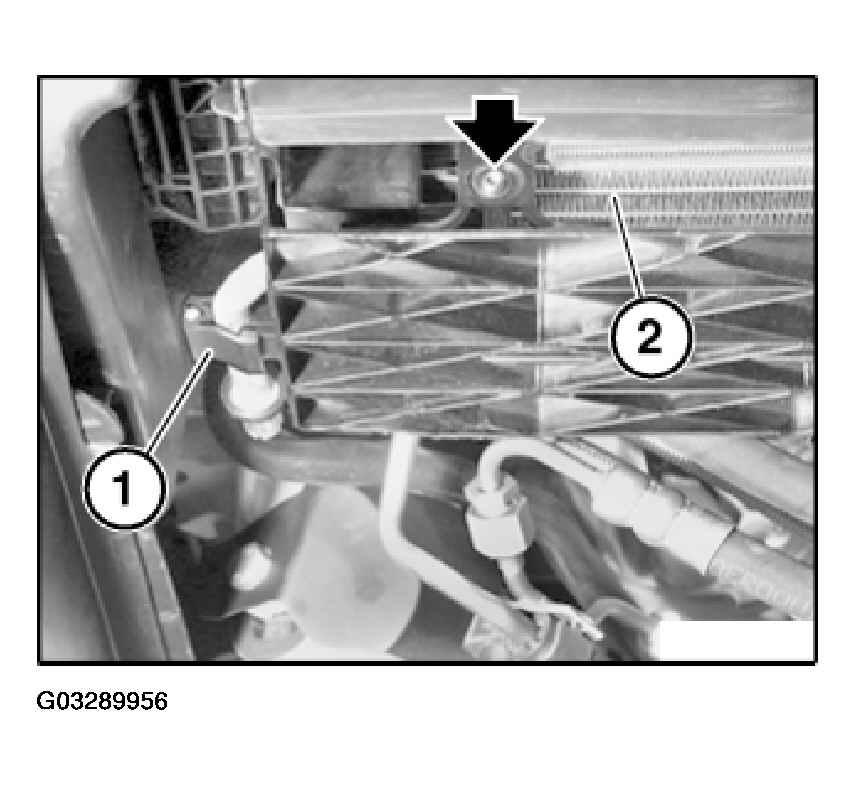

Release screw and remove power steering cooling loop (2) towards bottom.
