Draining coolant:

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Open cap (1) on coolant expansion tank.

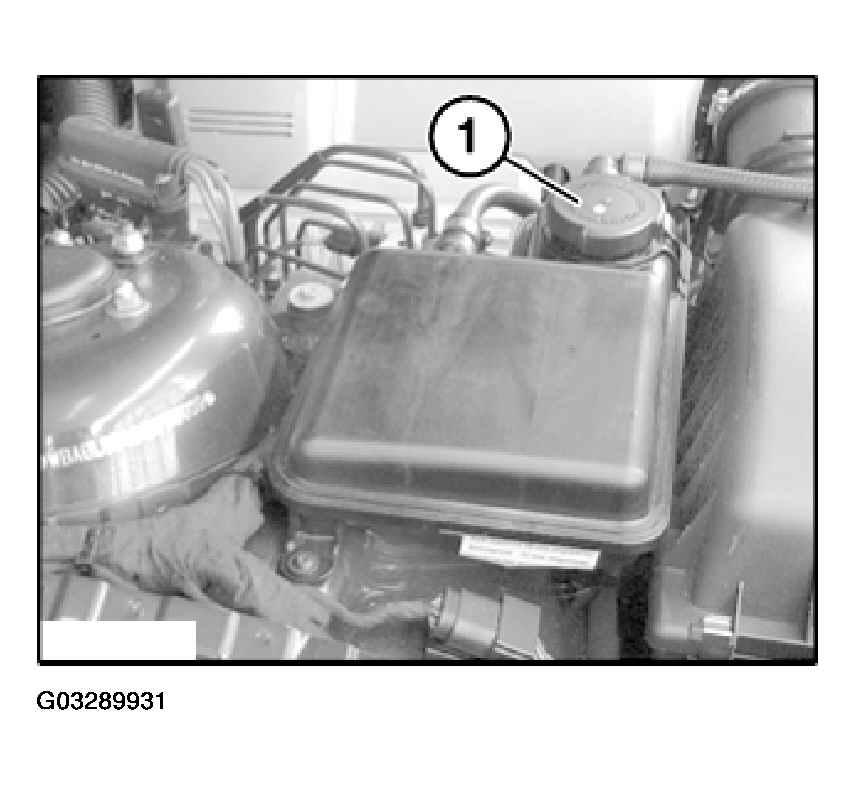

Fig 1: Opening Cap On Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front splash guard.

Drain, catch and dispose of coolant from radiator.

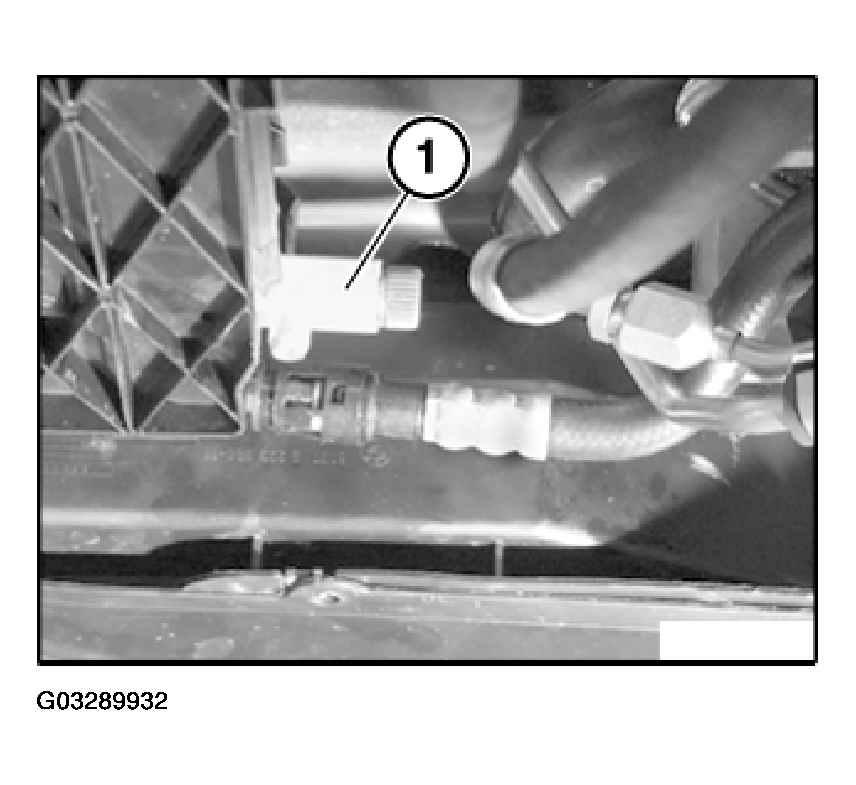

Fig 2: Draining Coolant From Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Remove reinforcement plate.

Installation:

Replace screws and captive nuts. Tighten screws to 56 Nm with a torque angle of 90°.

Open drain plug (1) on engine block.

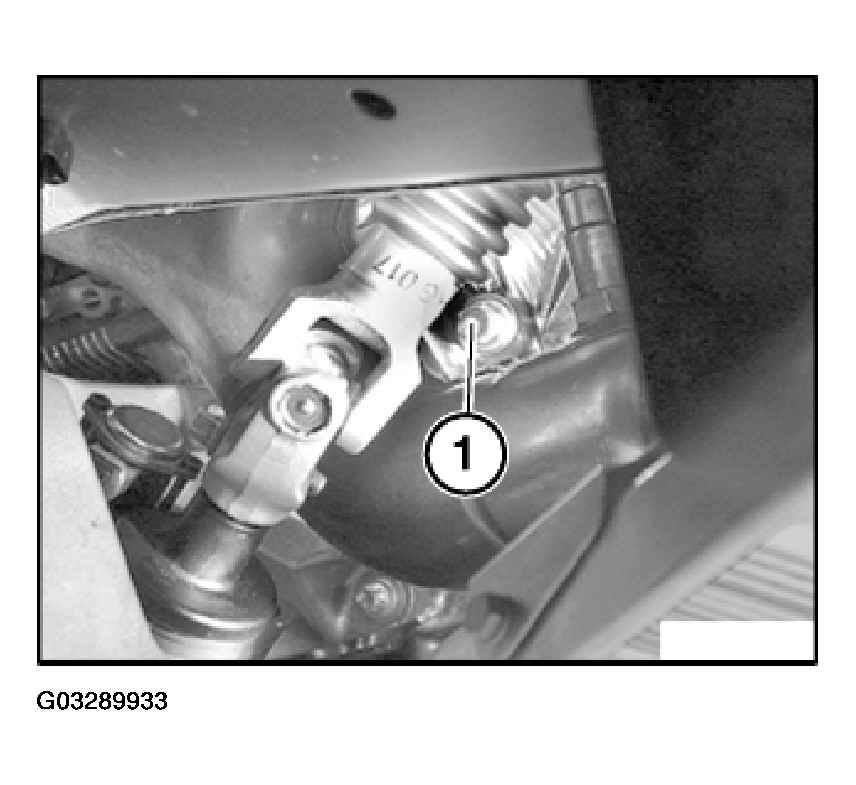

Fig 3: Opening Drain Plug On Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

Drain, catch and dispose of coolant.

Installation:

Replace sealing ring.

Tightening torque, 11 11 5AZ. Refer to ENGINE - TIGHTENING TORQUES .
