13 54 030 Removing and installing/sealing throttle assembly (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Remove air intake hose, refer to 13 54 250 Replacing air intake hose (between air-mass flow sensor and throttle valve assembly) (N62)

Unlock plug (1) and remove.

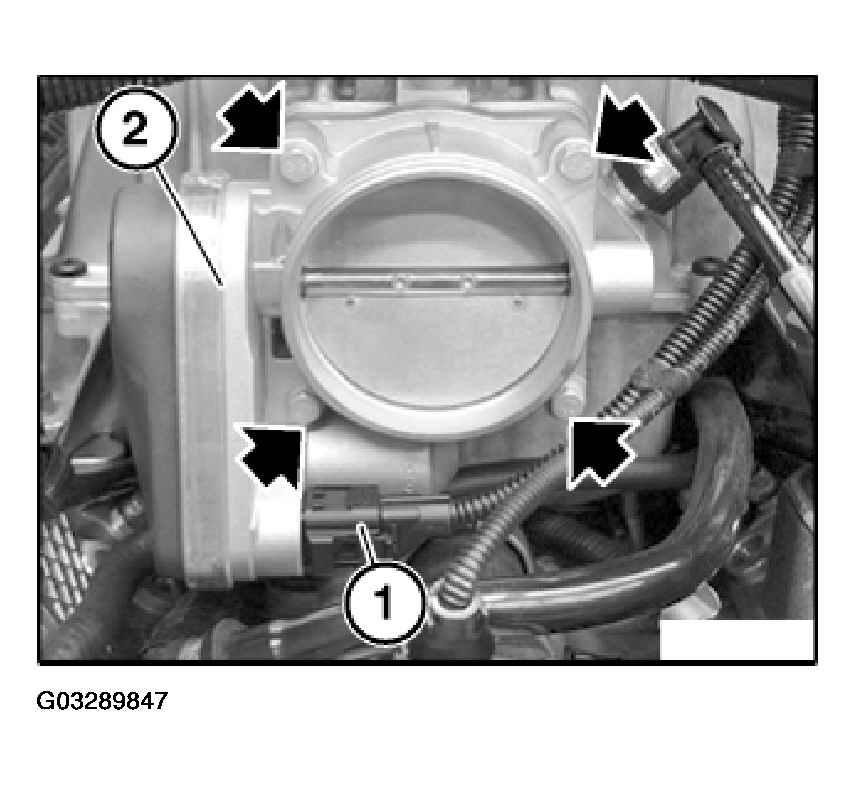

Fig 1: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove throttle assembly (2).

Installation:

Replace sealing ring (1) of throttle assembly (2).

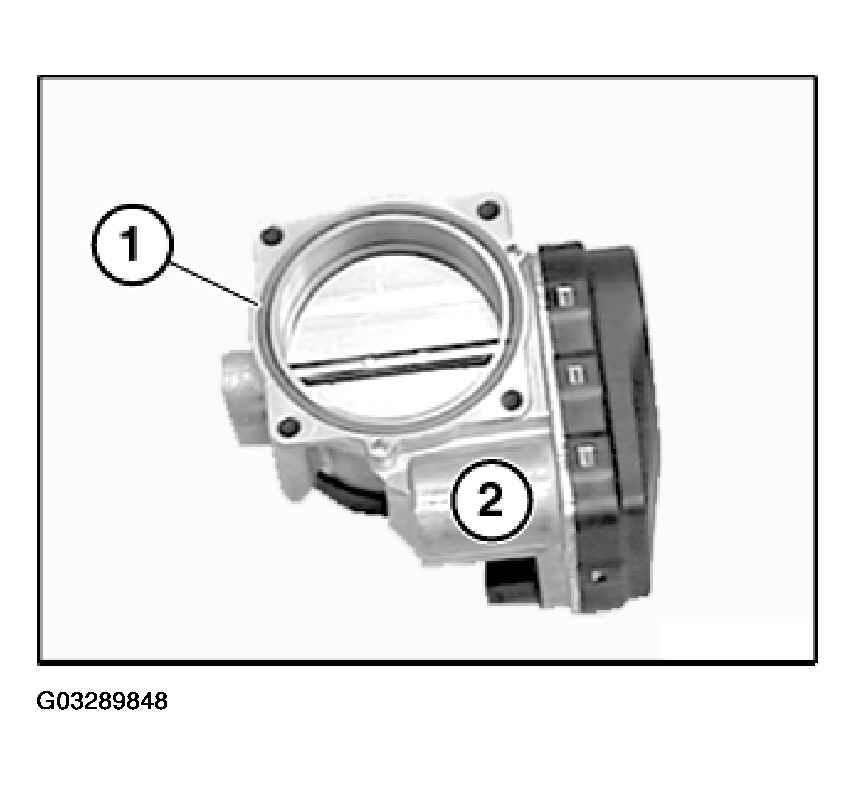

Fig 2: Replacing Sealing Ring Of Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check stored fault messages.

Now clear the fault memory.
