12 41 020 Removing and installing/replacing starter motor (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Follow instructions for disconnecting and connecting battery, refer to 12 00... Instructions for disconnecting and connecting battery .
Disconnect battery negative lead and cover
Remove reinforcement plate, tightening torque, 56 Nm
E60/E63/64/E65/E66 only: Remove right exhaust manifold, refer to 18 40 020 REMOVING AND INSTALLING/REPLACING RIGHT EXHAUST MANIFOLD (N62)

Release screw and nut.

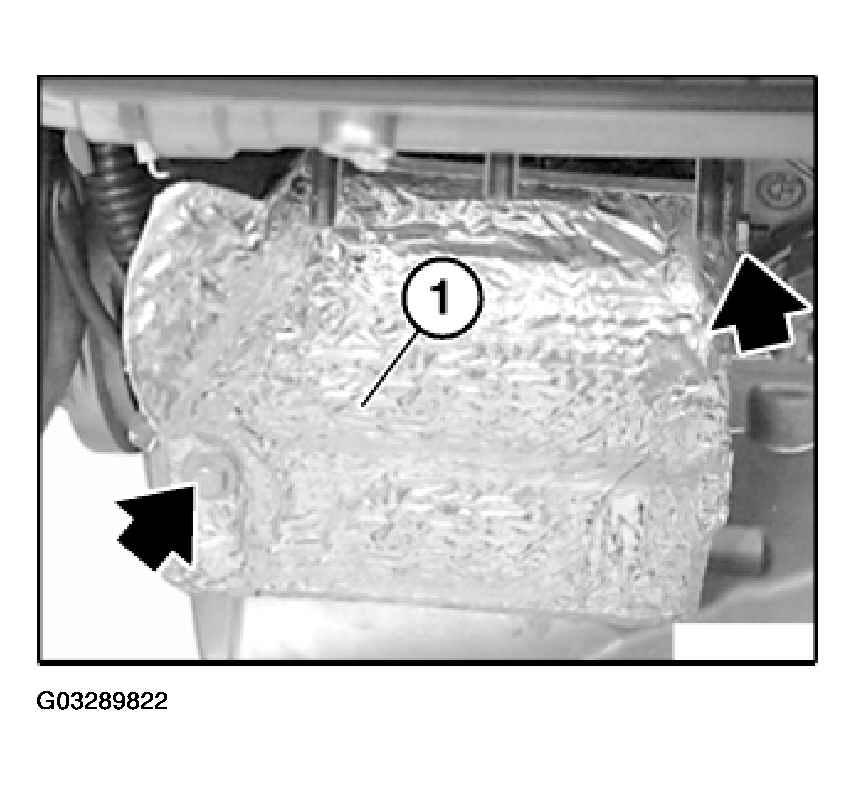

Fig 1: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (1).

Unfasten nut.

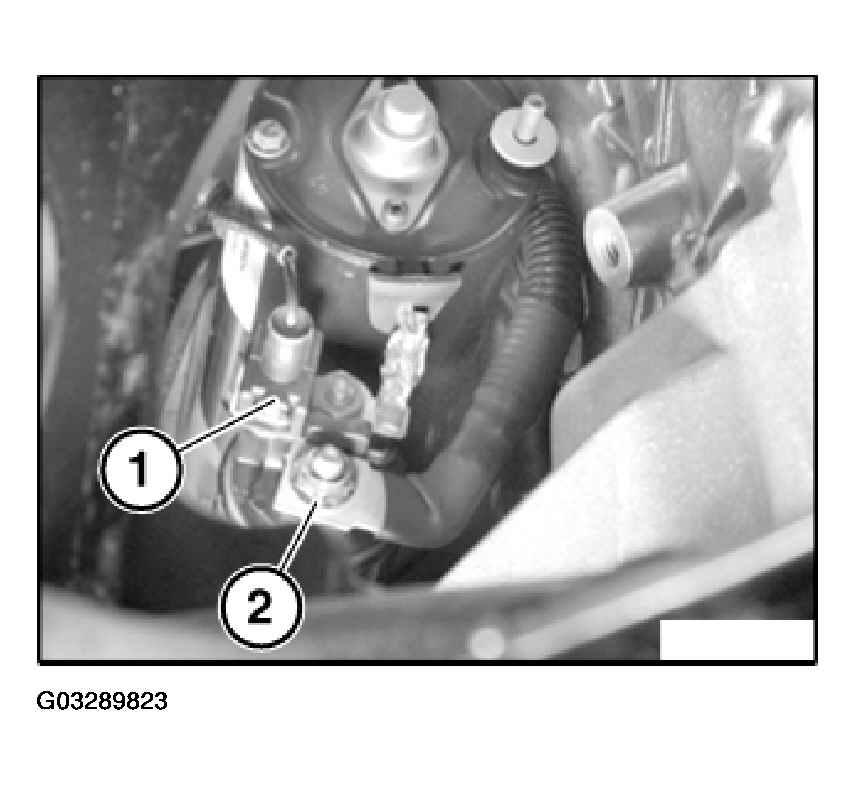

Fig 2: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 12 41 4AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Unlock plug (1) and remove.

Release screws and pull release out of transmission mounting and remove.

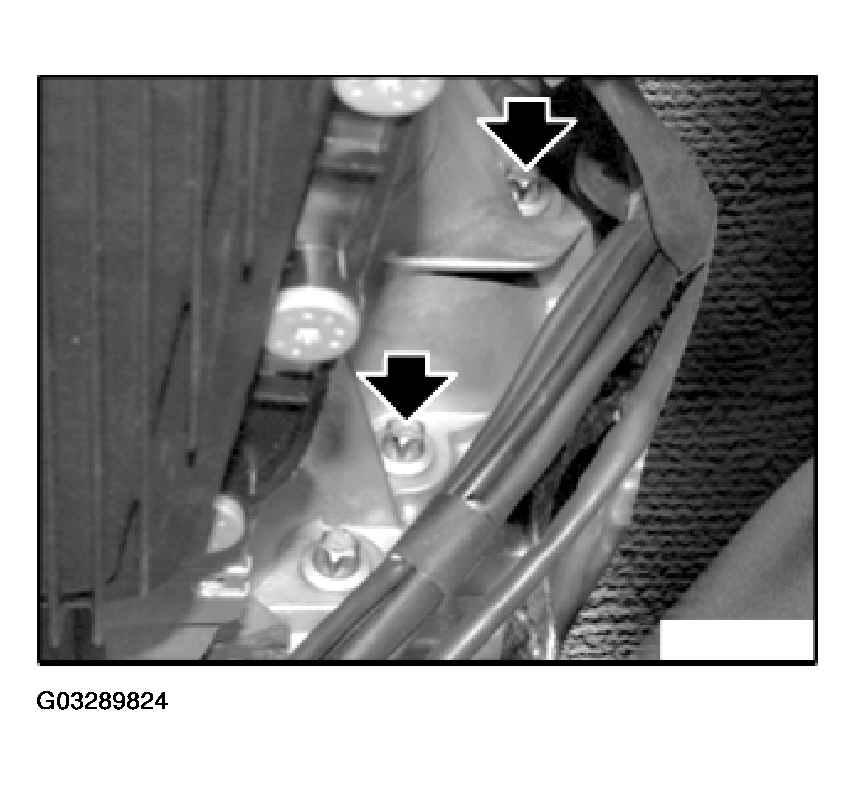

Fig 3: Removing Release From Transmission Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 12 41 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Installation:

Check starter pinion and ring gear for damage, replace damaged parts if necessary.
