12 52 005 Removing and installing/replacing integrated supply module (N62)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Read and print out fault memory with MoDiC or BMW DIS.
Switch off ignition.
Follow instructions for disconnecting and connecting battery. Refer to 12 00... Instructions for disconnecting and connecting battery .
Disconnect battery.
CAUTION:
Follow instructions for removing and installing electronic control units. Refer to 12 00... Instructions for removing and installing electronic control units .
Remove right fresh air duct. Refer to 64 31 056 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRESH-AIR DUCT (AUTOMATIC A/C HIGH) .

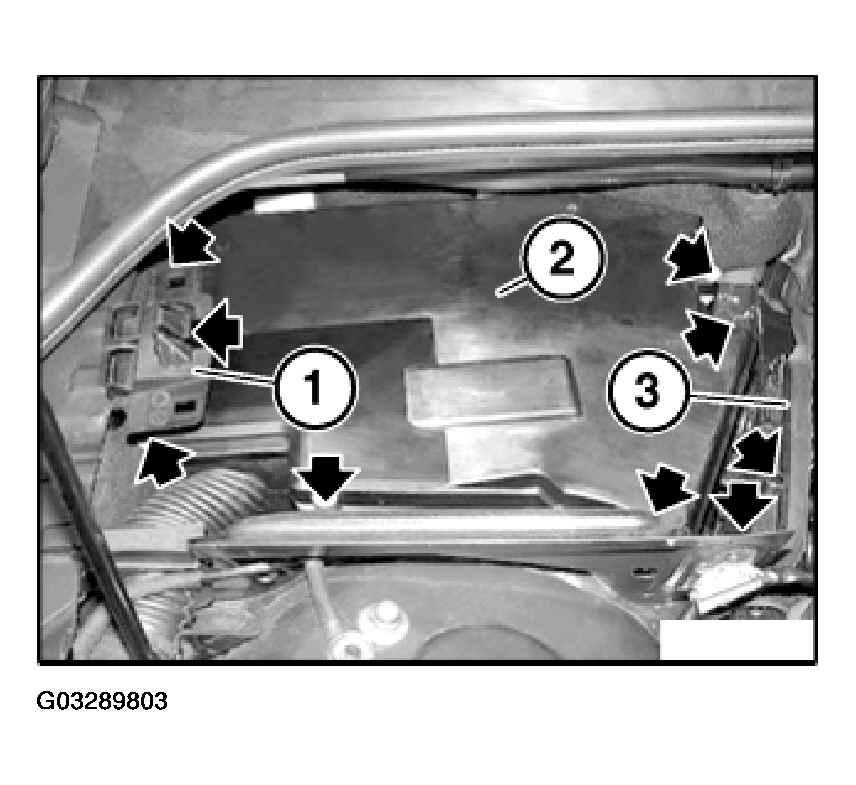

Release screw and remove holder (1).
Release screws and remove cover (2) from control unit box.
NOTE:
Release screws on seal (3) only when removing wiring harness.
Installation:

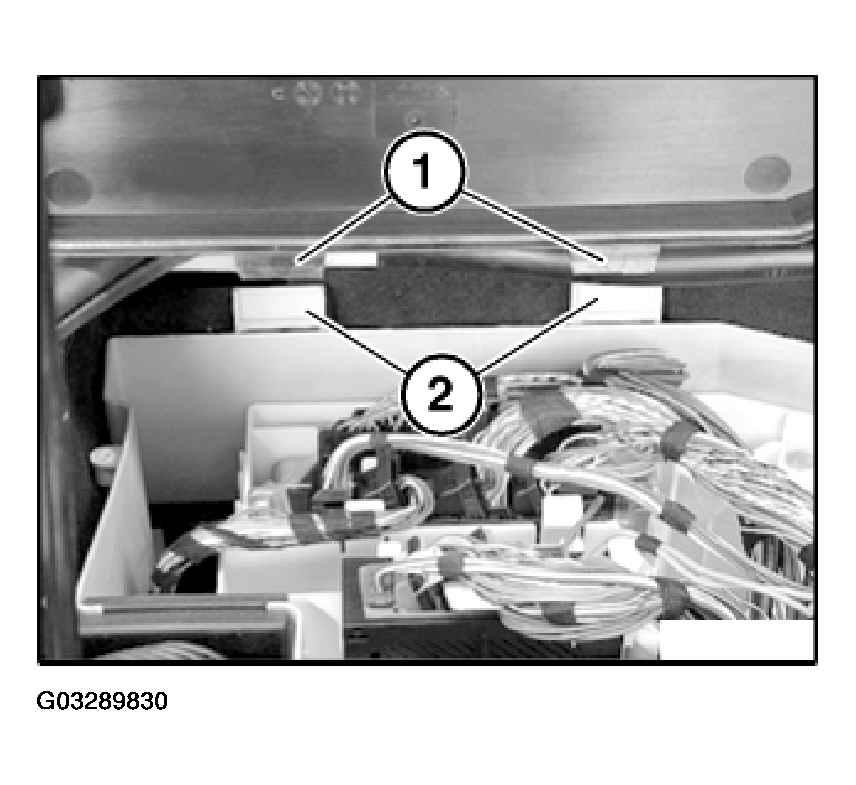

Insert tabs (1) in openings (2) and close cover.

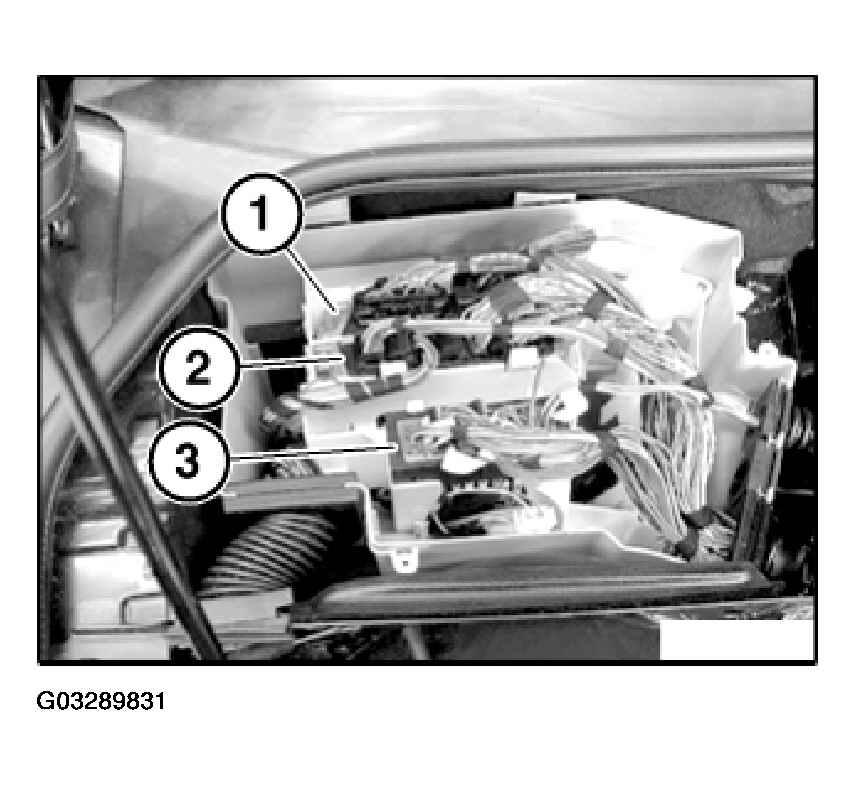

Unlock and detach plug connections on supply module (3).
Remove supply module (3).
Read out fault memory of control unit of Digital Motor Electronics (DME).
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
