12 31... Replacing alternator belt pulley

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

12 7 110

Remove and install alternator drive belt.

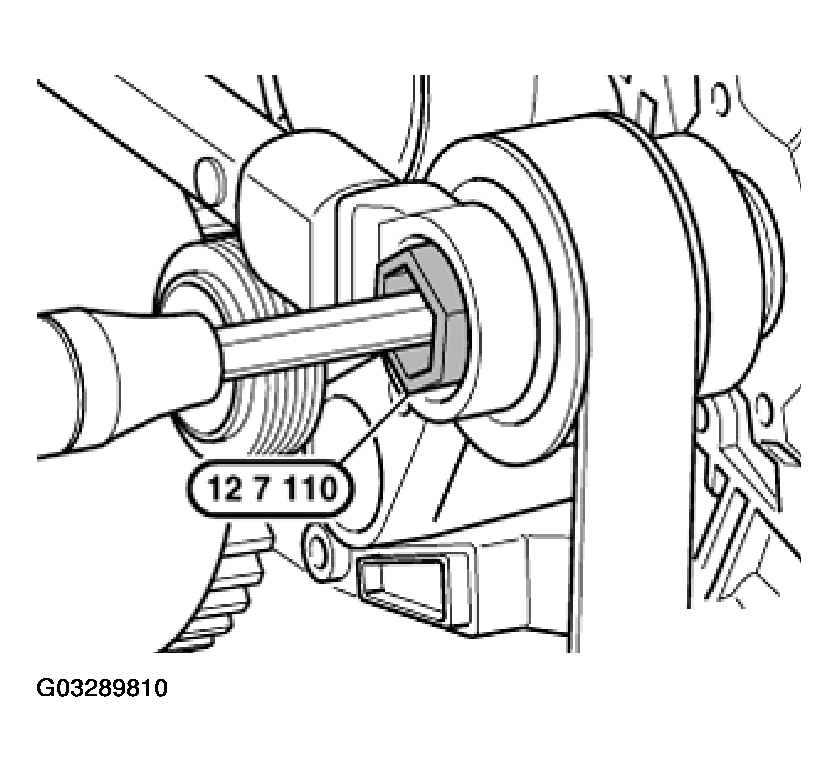

Fig 1: Removing Alternator Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on alternator type, grip shaft with:

hexagon socket
multi-tooth socket or
Torx socket wrench

Release nut with special tool 12 7 110.

Installation:

Tightening torque, 12 31 2AZ / 12 31 3AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
