Oscillogram for a faulty alternator:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

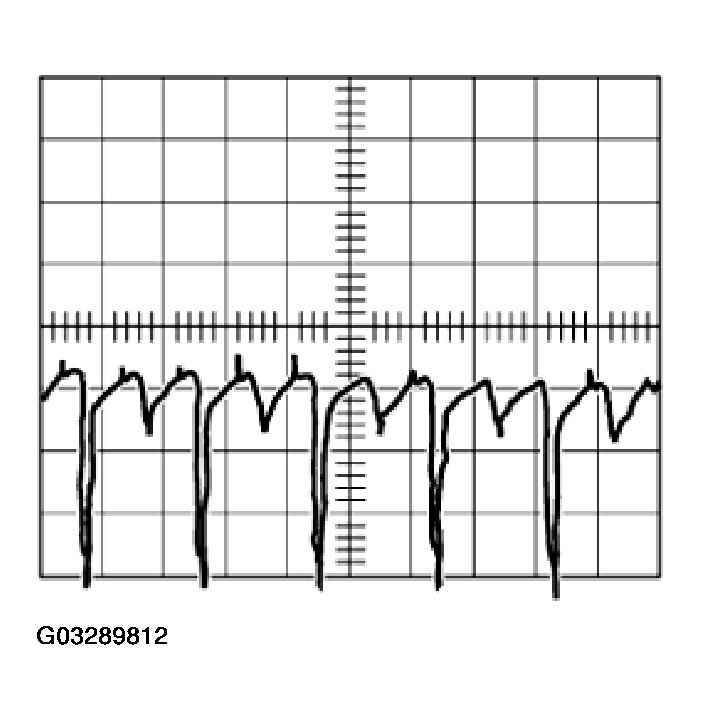

Fig 1: One Phase Interrupted
G03289812Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

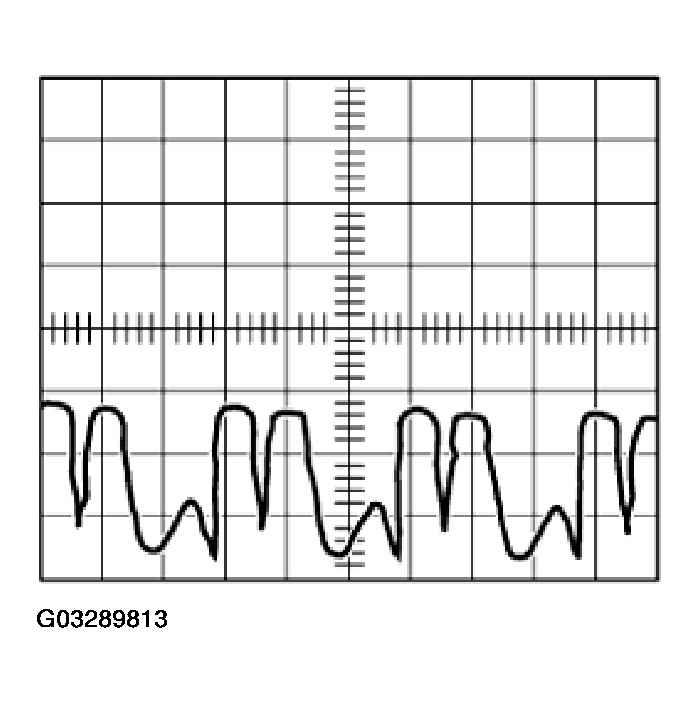

Fig 2: Interturn Fault
G03289813Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

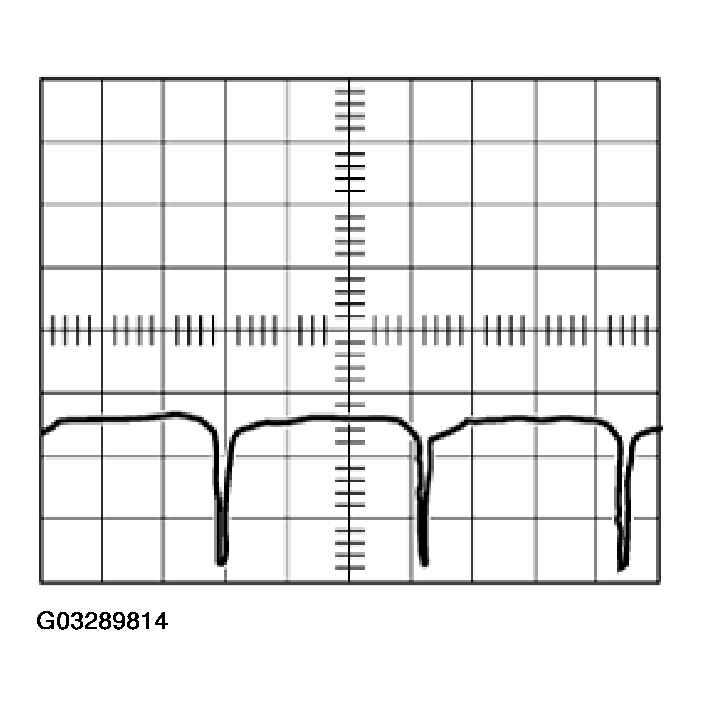

Fig 3: Open Circuit In Negative Diode
G03289814Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

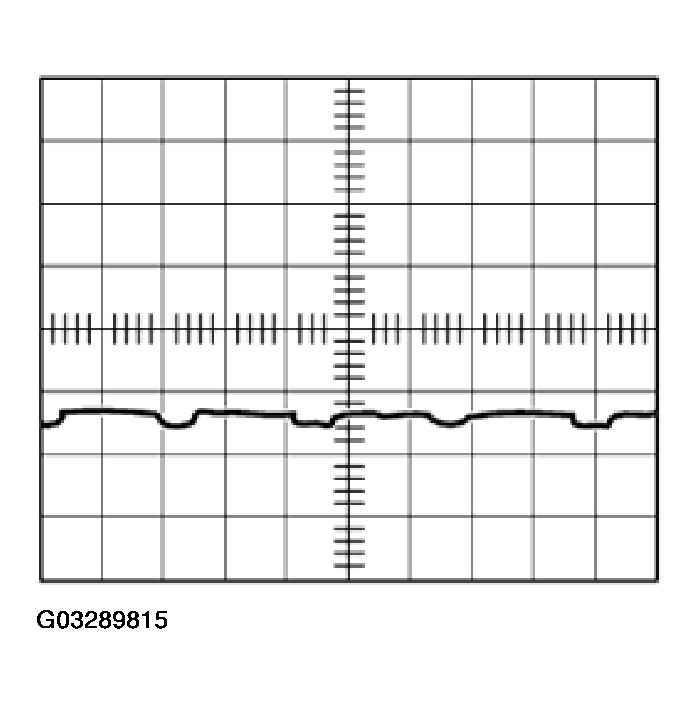

Fig 4: Short Circuit In Positive Diode
G03289815Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

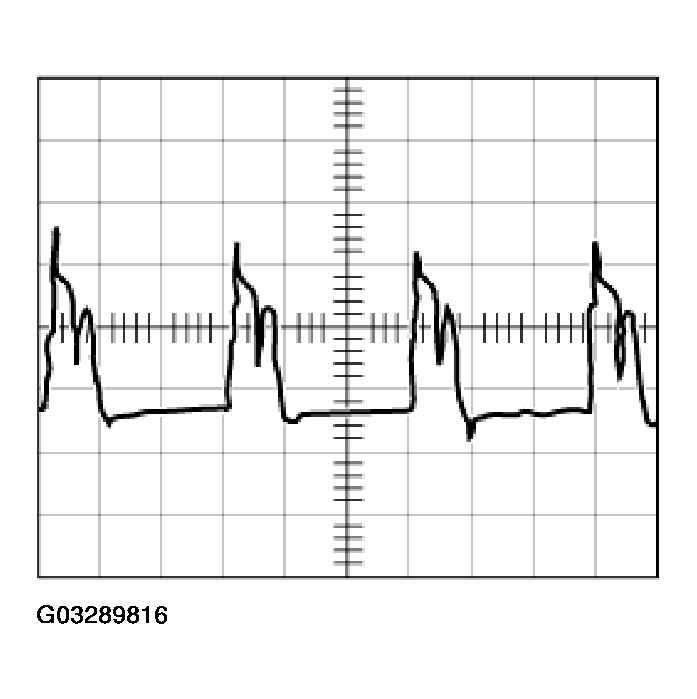

Fig 5: Open Circuit In Positive Diode
G03289816Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

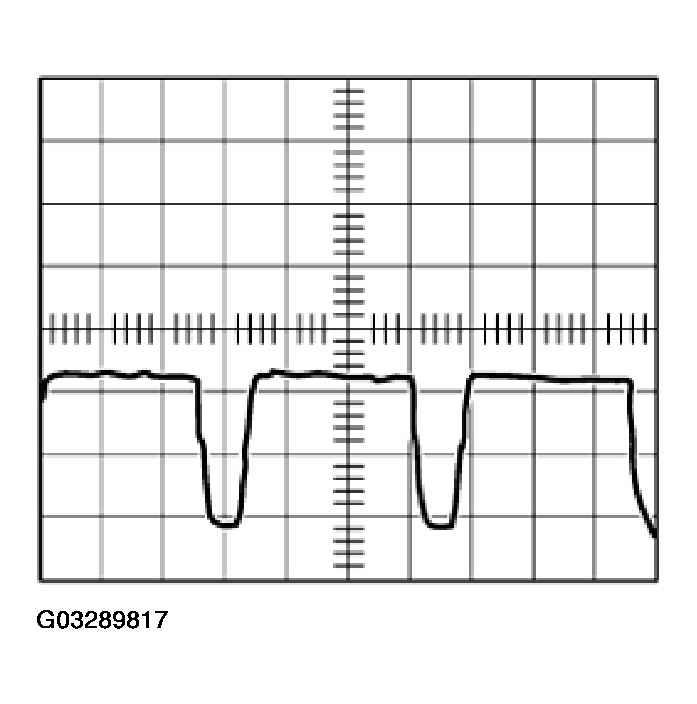

Fig 6: Open Circuit In Exciter Diode
G03289817Courtesy of BMW OF NORTH AMERICA, INC.

Repair/exchange alternator.

Assemble engine.

Check function of DME/DDE.
