11 23 010 Removing and installing/replacing vibration damper (N62): Installation:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

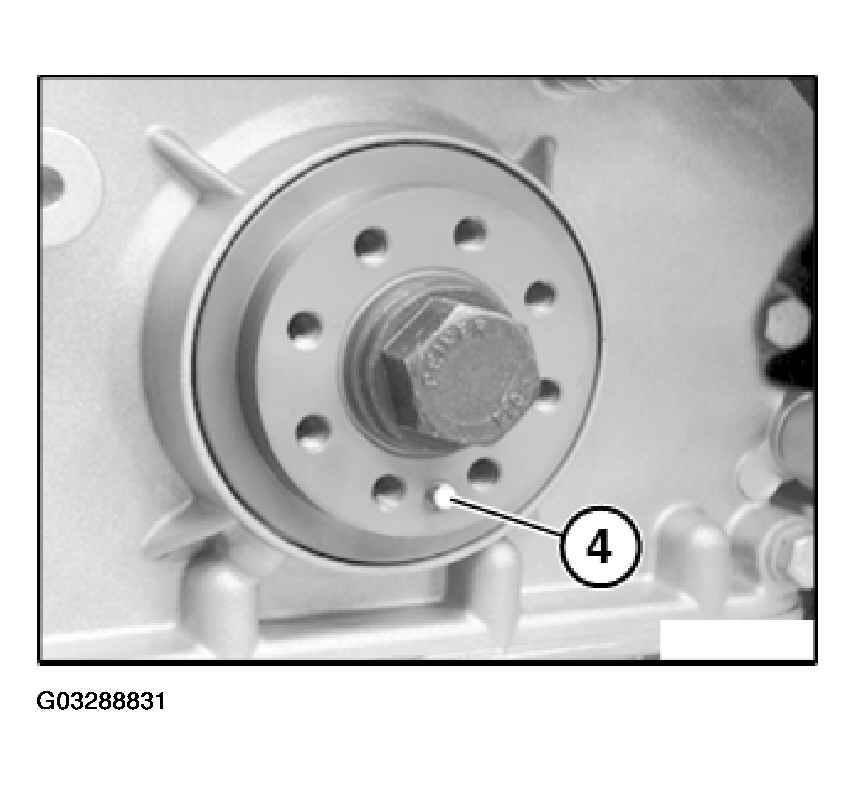

Vibration damper is secured on hub with an alignment pin (4).

Fig 1: Identifying Alignment Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit bore (2) in vibration damper (1) on alignment pin in hub.

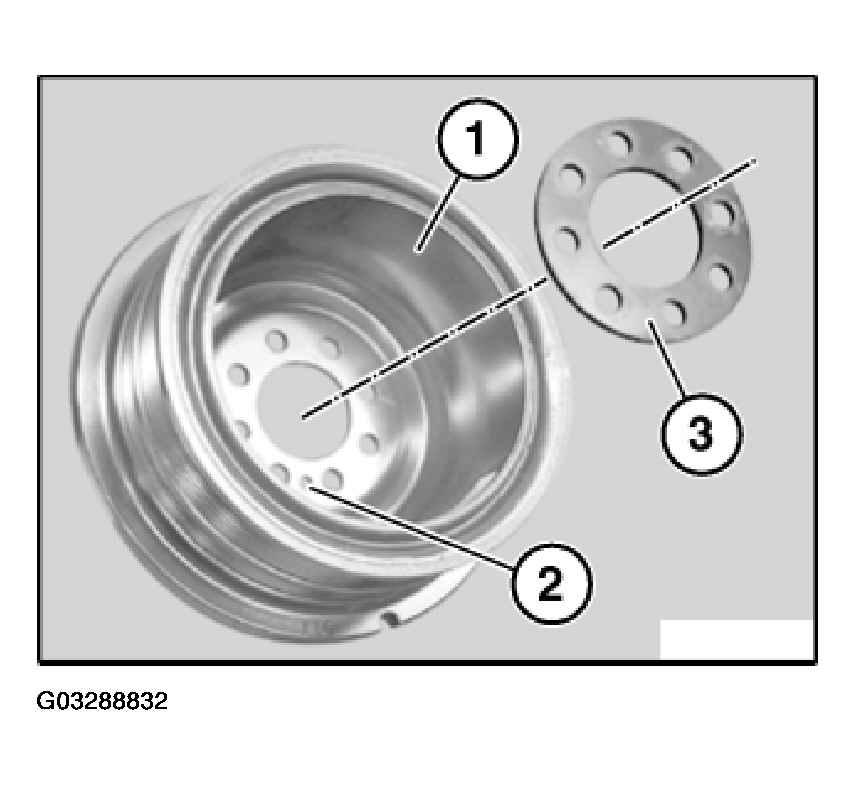

Fig 2: Fitting Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Fit washer (3).

Replace screws.

Tightening torque 11 23 3AZ. Refer to ENGINE - TIGHTENING TORQUES .
