11 37 035 Removing and installing/replacing left eccentric shaft sensor (N62)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
(cylinder bank 5 to 8)
Remove left cylinder head cover. Refer to 11 12 005 Removing and installing / sealing left cylinder head cover (N62 / N62TU) .

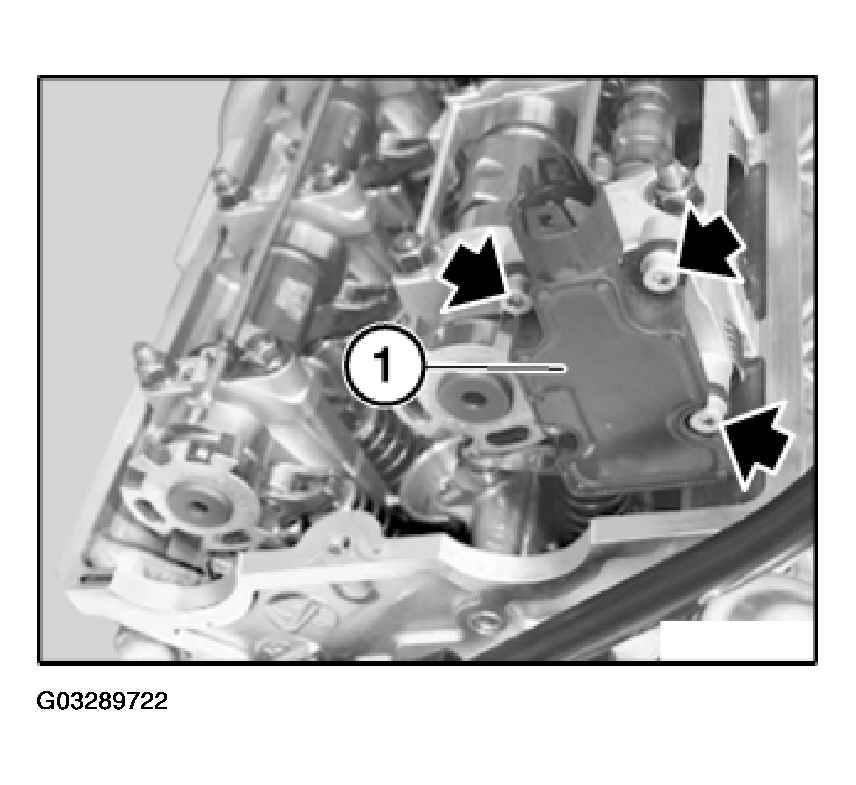

Unfasten screws.
Remove eccentric shaft sensor (1).
Installation:
Read out fault memory of control unit of Digital Motor Electronics (DME).
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
