11 37 008 Removing and installing/replacing right eccentric shaft (N62 to 9/03): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Installation of eccentric shaft is described separately from removal.

IMPORTANT: Danger of mix-up:

Version up to 2/03 of cylinder bank 1 to 4:

In the version up to 2/03, the eccentric shafts are different for cylinders 1 to 4 and 5 to 8 and must not be mixed up.

The eccentric shaft of cylinder bank 1 to 4 has the part number 7 513 754 stamped between cylinders 3 and 4 and a "flat area" on the collar between cylinders 1 and 2.

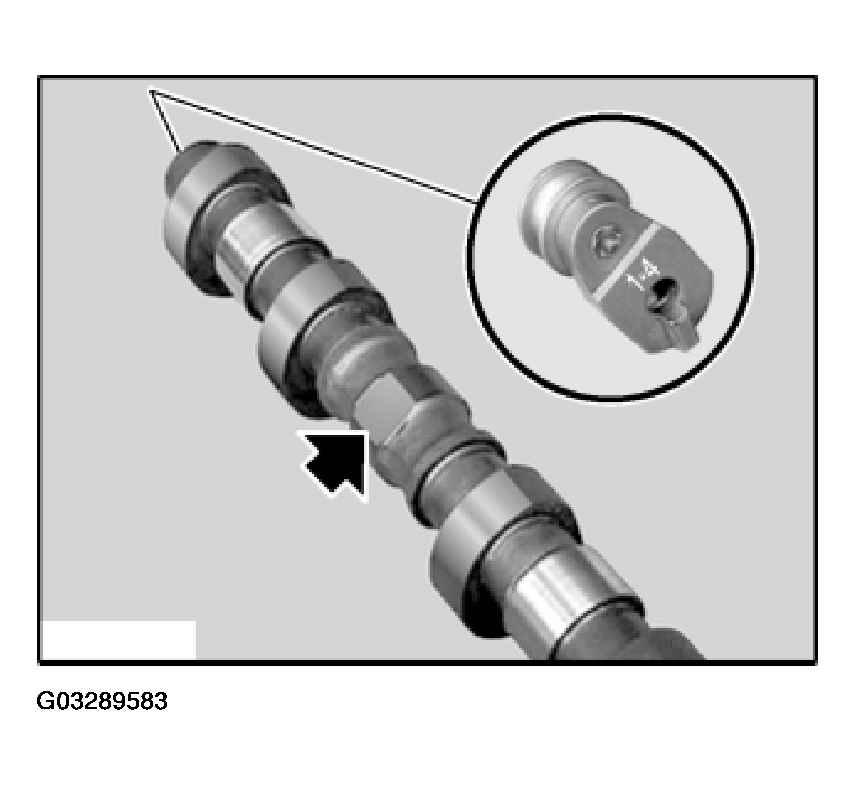

Fig 1: Identifying Identification Mark On Eccentric Shafts
G03289583Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Danger of mix-up:

Version up to 2/03 of cylinder bank 5 to 8:

The eccentric shaft of cylinder bank 5 to 8 has the part number 7 513 755 stamped between cylinders 5 and 6 and has no "flat area" on the collar between cylinders 5 / 6 and 7 / 8.

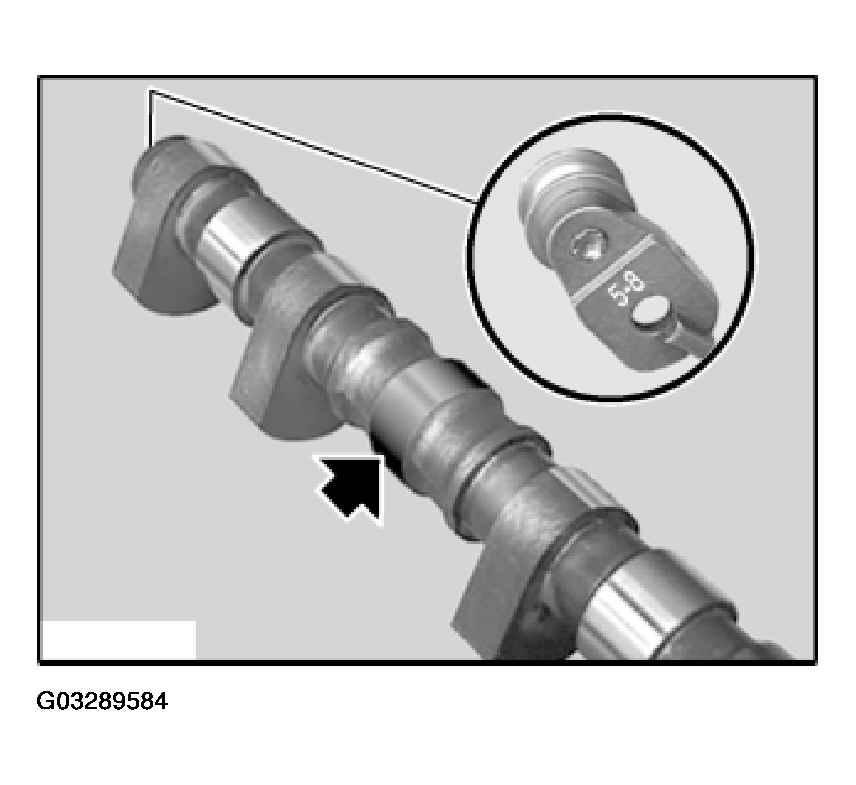

Fig 2: Identifying Identification Mark On Eccentric Shaft
G03289584Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Danger of mix-up:

If none of the markings described above are present, then the eccentric shaft will be a new-version shaft.

The new-version eccentric shafts are identical parts.

Depending on the side on which the lever for the torsion spring and the magnet wheel are fitted, the eccentric shafts are used for cylinders 1 to 4 or 5 to 8.

NOTE: Lubricate eccentric shaft at bearing positions.
Replace needle bearing (1).
IMPORTANT: Needle bearings break off very easily when installed.

Carefully press needle bearings (1) apart at split position only to such an extent that they can be fitted over eccentric shaft.

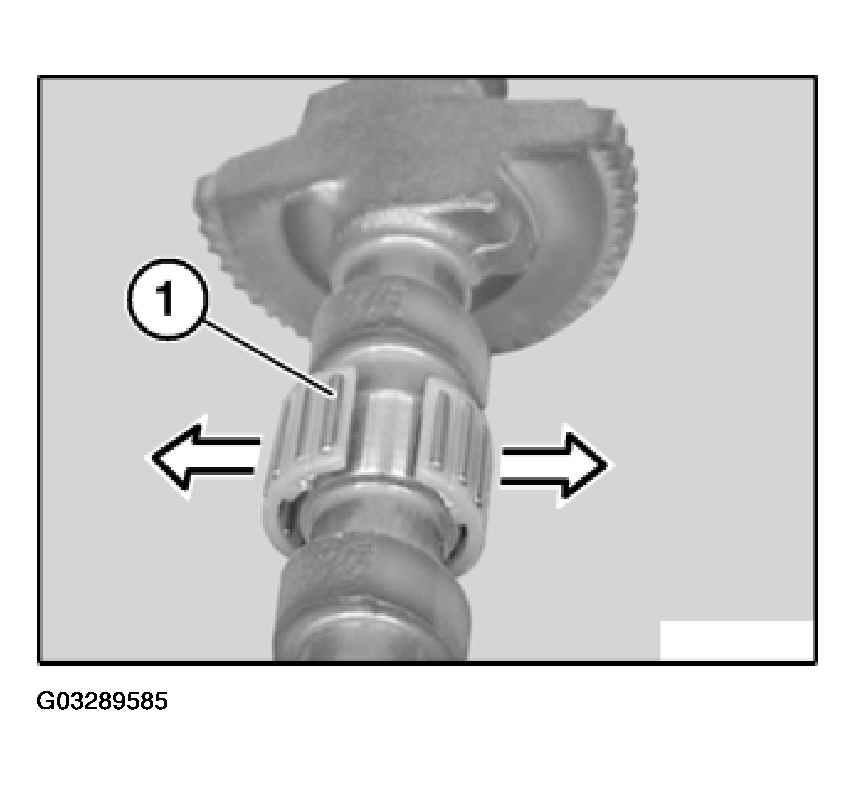

Fig 3: Installing Needle Bearing
G03289585Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Levers with rollers of cylinders 1 to 4 and 5 to 8 are different and must not be mixed up.

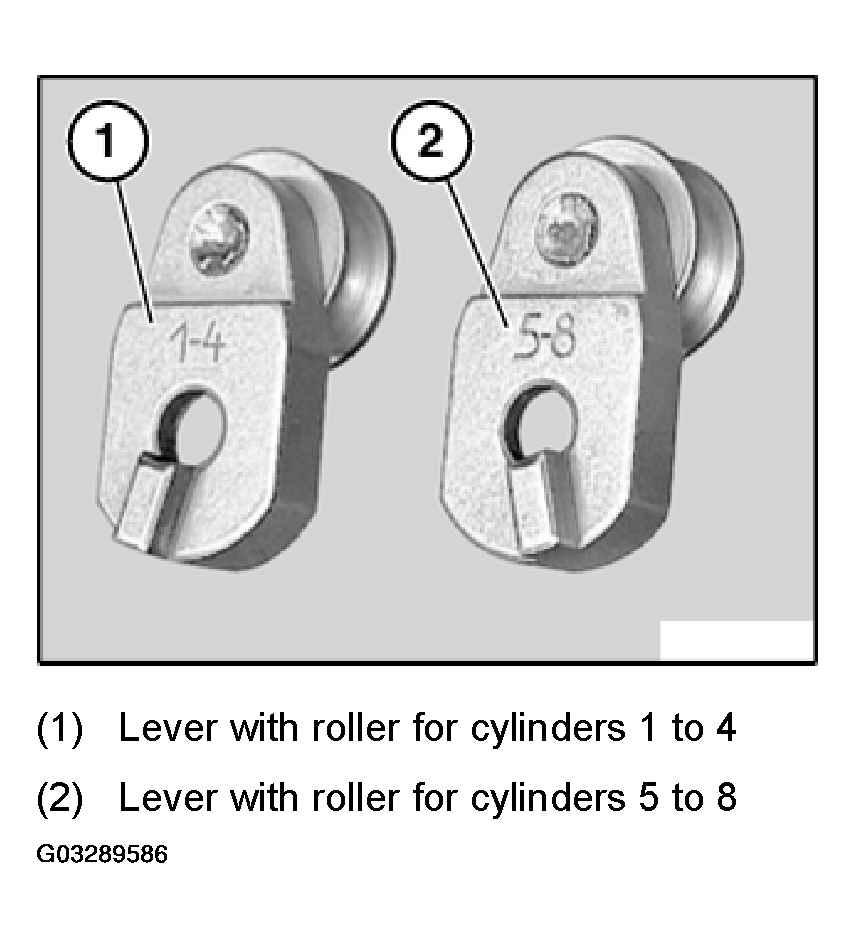

Fig 4: Identifying Levers With Rollers
G03289586Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: The position of the eccentric (3) is crucial to fitting the lever (1) and the installation direction in the bearing bridge described later.
Incorrect assembly will result in engine damage.

Cylinder bank 1 to 4:

As shown in the illustration, the machined surface (3) on the eccentric must point left and the groove in the eccentric shaft must be pointed upwards at an angle.

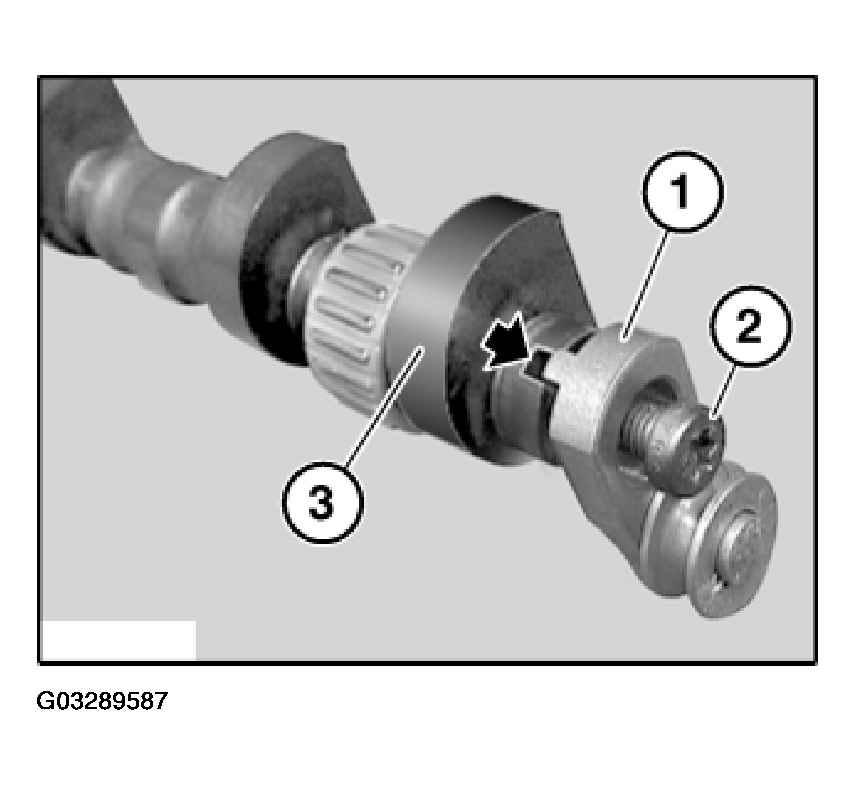

Fig 5: Identifying Position Of Eccentric
G03289587Courtesy of BMW OF NORTH AMERICA, INC.

Align lever (1) with digits 1-4 pointing to groove in eccentric shaft and insert. Insert screw (2).

Grip lever (1) with roller at dihedral.

Tighten down screw (2).

Installation of magnet wheel:

NOTE: Roller (1) must not rest against vise.
Clamp eccentric shaft (2) with front jaws on dihedral in a vise.

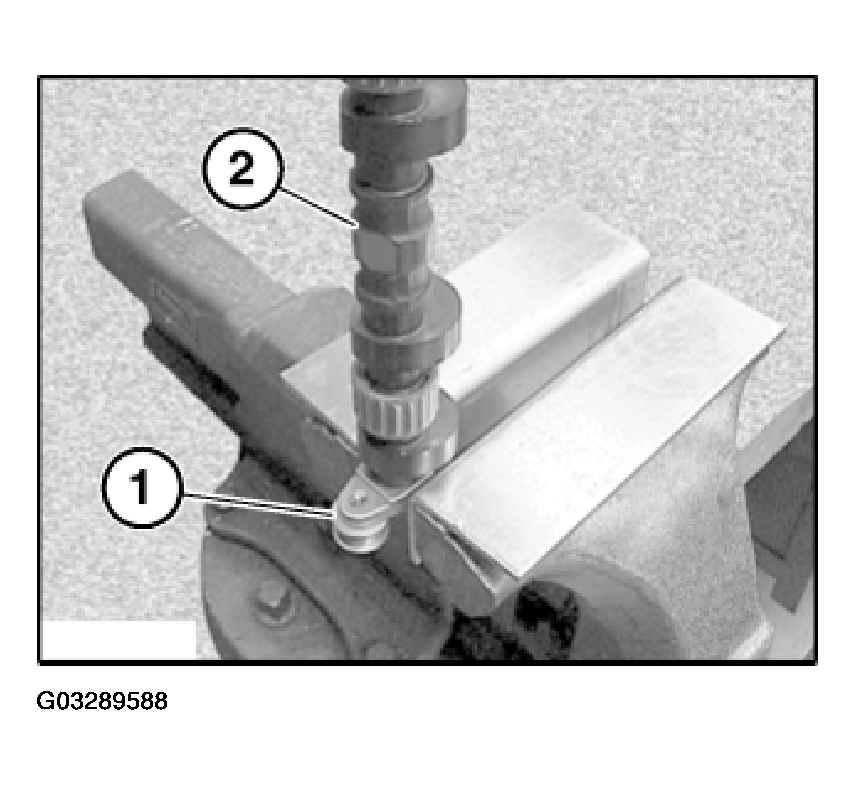

Fig 6: Clamping Eccentric Shaft In Vice
G03289588Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: The position of the eccentric is crucial to fitting the magnet wheel (1) and the installation direction in the bearing bridge described later.
Incorrect assembly will result in engine damage.

Magnet wheel (1) is secured with a lug in groove in eccentric shaft.

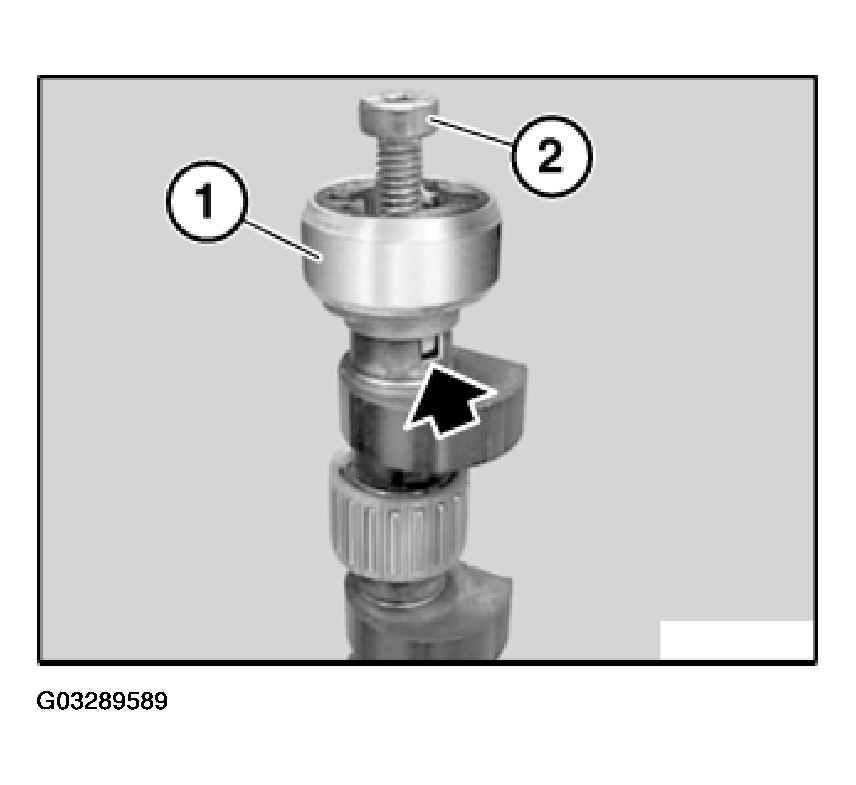

Fig 7: Inserting Screw
G03289589Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Only install original antimagnetic screw (2).

Insert screw (2) and tighten down.

Tightening torque, 1137 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

NOTE: Replace bearing shells (1) of needle bearings.
IMPORTANT: Bearing shells (1) must be installed in such a way that ends of bearing shells (1) face each other as shown in illustration.

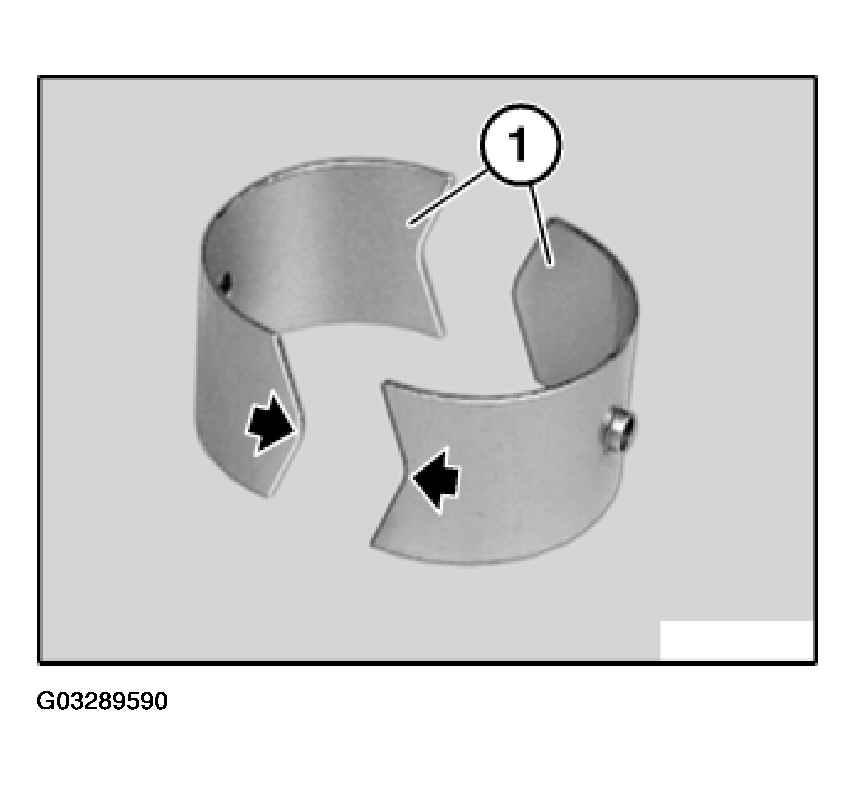

Fig 8: Identifying Bearing Shells
G03289590Courtesy of BMW OF NORTH AMERICA, INC.

Insert bearing shells (1) into bearing bracket so that it is secured in bore (2).

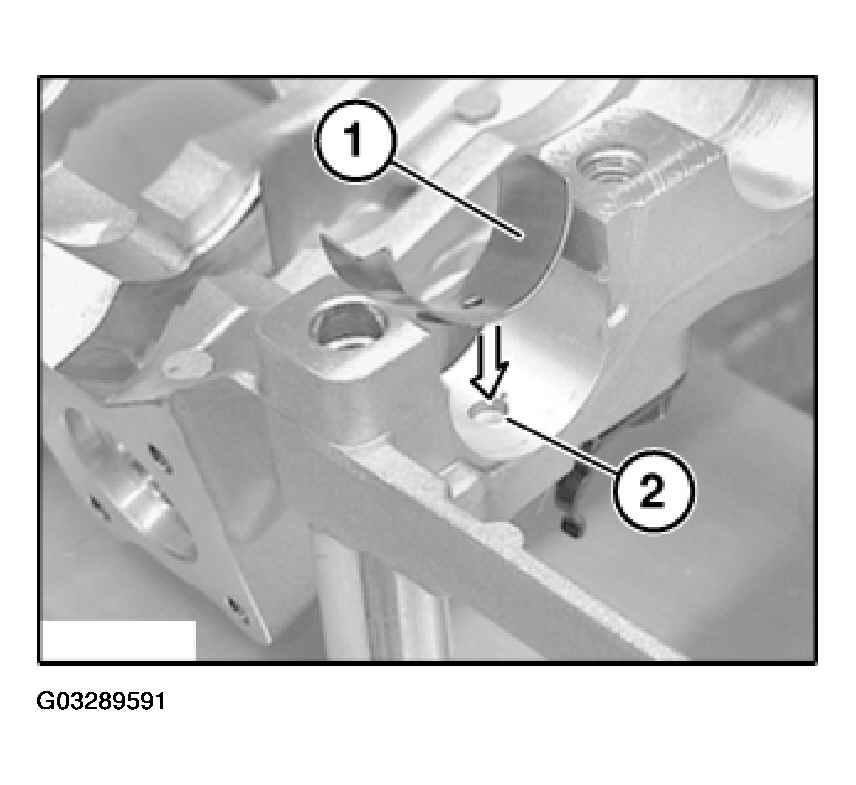

Fig 9: Inserting Bearing Shells Into Bearing Bracket
G03289591Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate bearing shells (1) with engine oil.

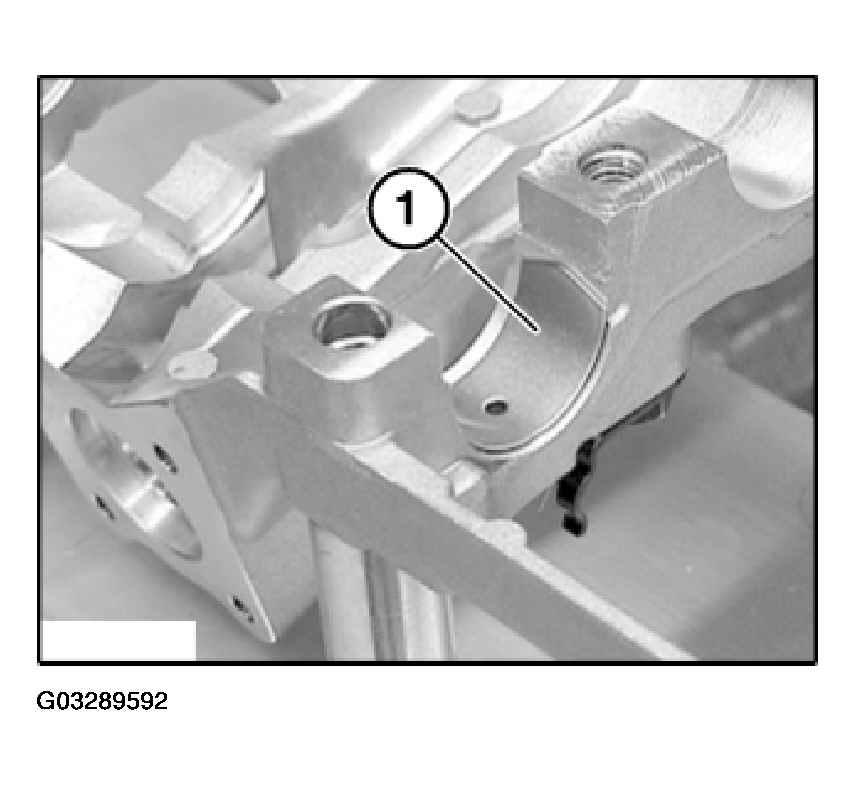

Fig 10: Lubricating Bearing Shells
G03289592Courtesy of BMW OF NORTH AMERICA, INC.

Cylinder bank 1 to 4:

IMPORTANT: There is a danger of mixing up battery leads:
Machined curvature of eccentric points inwards.

Lever (1) with roller points towards front.

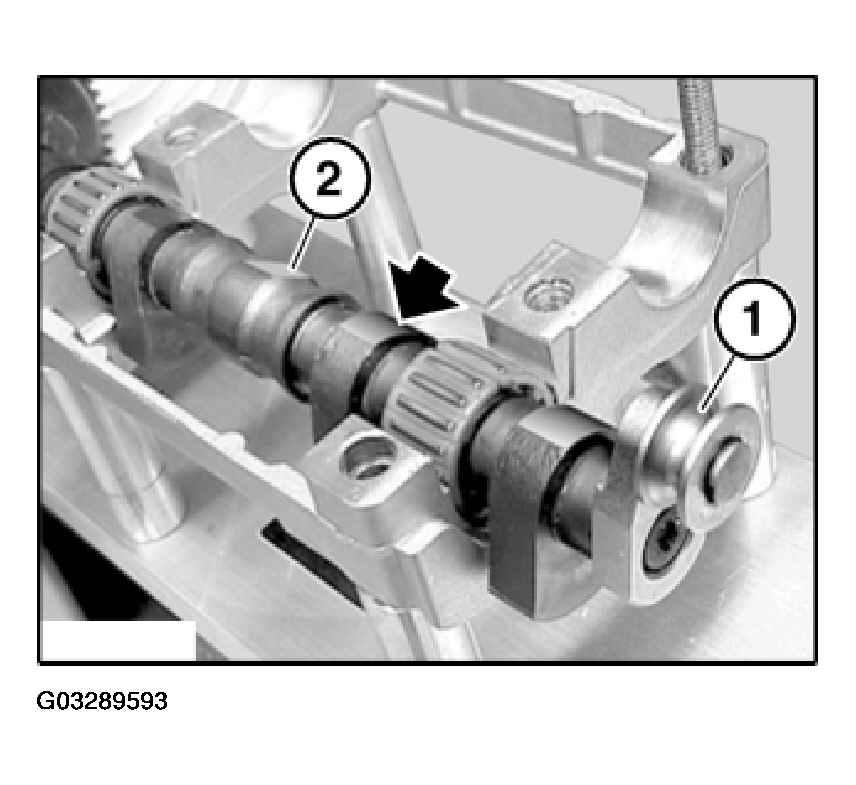

Fig 11: Installing Eccentric Shaft
G03289593Courtesy of BMW OF NORTH AMERICA, INC.

Install eccentric shaft as shown in illustration.

Version up to 2/03:

Eccentric shaft of cylinder bank 1 to 4 has a "flat area (2)" on collar between cylinders 1 and 2.

Lubricate bearing shells (1) with engine oil.

Install bearing shells (1).

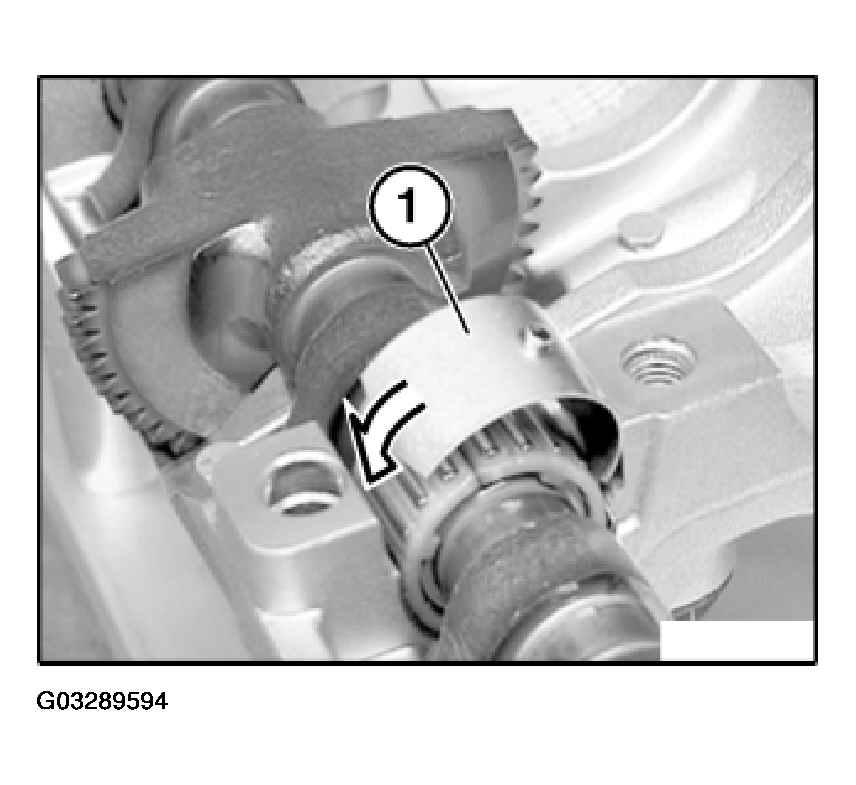

Fig 12: Installing Bearing Shells
G03289594Courtesy of BMW OF NORTH AMERICA, INC.

Bearing shells (1) must snap audibly into place.

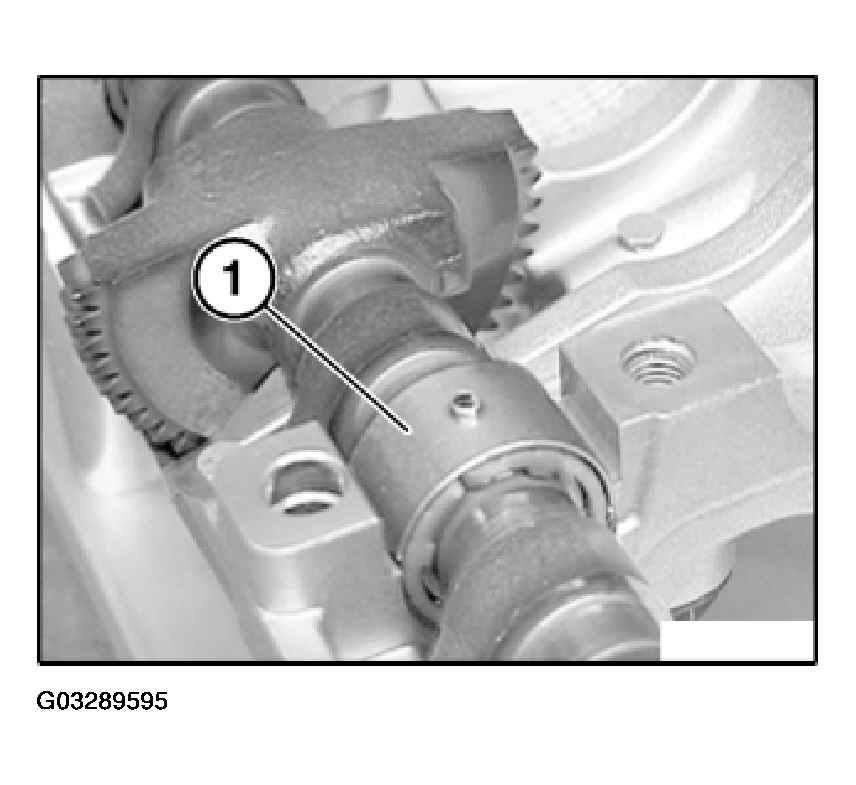

Fig 13: Checking Correct Position Of Bearing Shells
G03289595Courtesy of BMW OF NORTH AMERICA, INC.

Check correct position of bearing shells (1).

Install right inlet camshaft. Refer to 11 31 034 Removing and installing/replacing right inlet camshaft (N62 from 9/03) .

Assemble engine.
