11 28 050 Replacing A/C compressor drive belt with belt tensioner (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

113 340

Necessary preliminary tasks:

Remove alternator drive belt. Refer to 11 28 010 Replacing alternator drive belt (N62) .
Remove engine splash guard.

NOTE: If the drive belt is to be reused:
Mark direction of travel and reinstall drive belt in same direction of travel.

Pretension belt tensioner slowly and carefully with a Torx socket as far as it will go and secure with special tool 11 3 340.

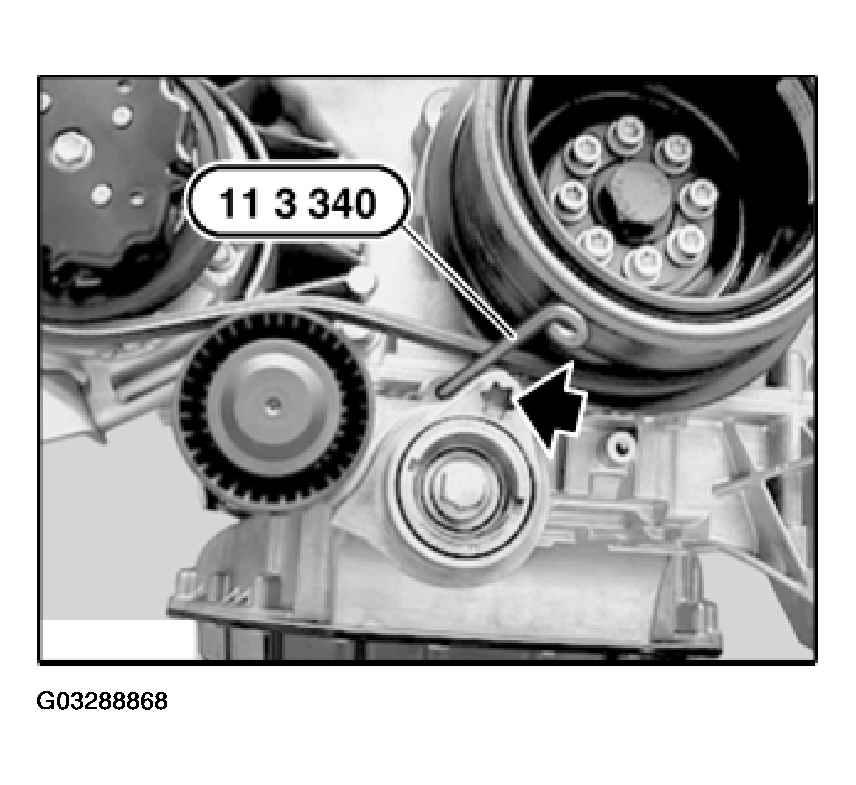

Fig 1: Removing Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive belt.

IMPORTANT: If contaminated with hydraulic fluid: Replace drive belt.

Put on the drive belt.

Remove special tool 11 3 340.

Installation:

Check that drive belt is correctly positioned on pulleys.

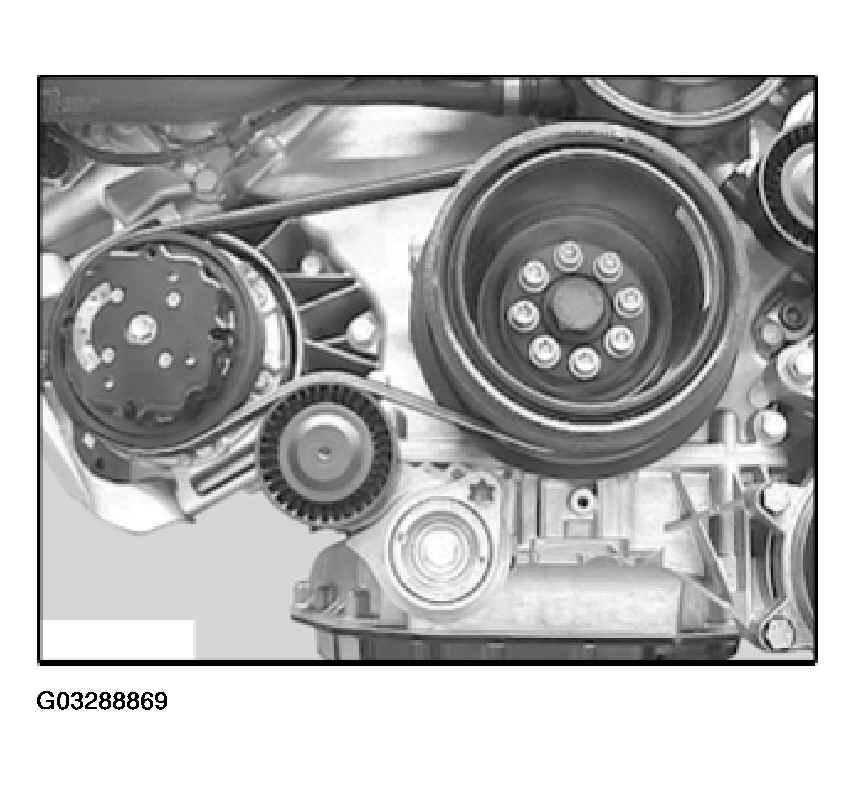

Fig 2: Installing Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.
