11 40 000 Checking engine oil pressure: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 4 050
- 13 3 061
- 13 3 063
- 13 6 051
- 13 6 054
NOTE:
To check the engine oil pressure, the oil pressure switch must be removed and the special tools installed and connected.
NOTE:
A small amount of oil will emerge when the oil pressure switch is removed. Have a cleaning cloth ready.
Make sure no oil runs onto belt drive.
Remove any remnants of oil immediately with cleaning cloth.
Make sure no oil runs onto belt drive.
Remove any remnants of oil immediately with cleaning cloth.
Remove oil pressure switch.
Installation:
Tightening torque, 12 61 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

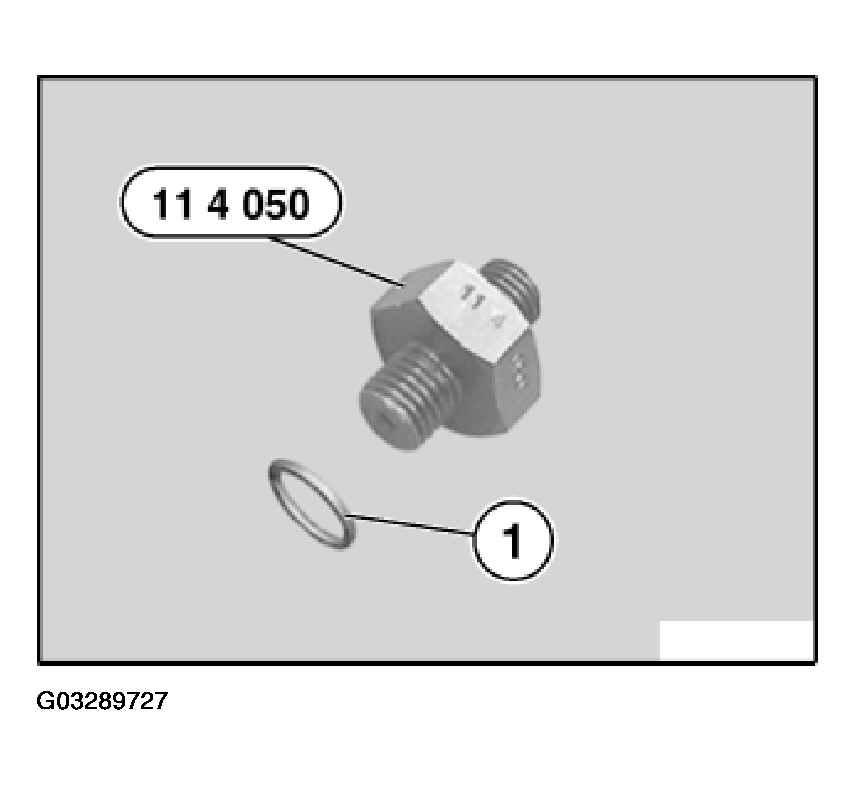

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.
