11 13 020 Removing and installing/replacing oil sump bottom section (N62): Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove reinforcement plate. Refer to SUSPENSION - FRONT .
Remove oil drain plug and drain engine oil. Refer to 00 00 610 Engine oil service (N62) .

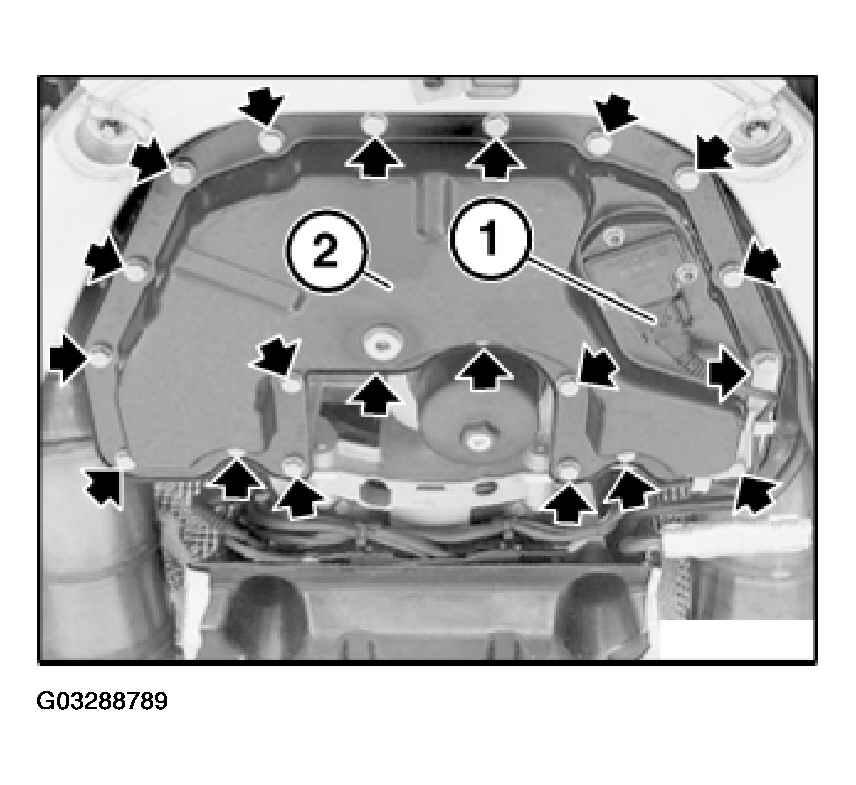

Unlock plug connection (1) from oil level sensor and disconnect.
Release screws and remove oil sump bottom section (2).
Tightening torque 11 13 2AZ. Refer to ENGINE - TIGHTENING TORQUES .
