11 22 000 Removing and installing/replacing flywheel (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 180
11 9 260
11 9 262
11 9 263
11 9 264

Necessary preliminary tasks:

Remove automatic transmission.
Remove manual transmission.
Remove clutch.

Automatic transmissions only:

Block flywheel (1) with special tools 11 9 260 / 11 9 263 / 11 9 264. Unfasten flywheel screws.

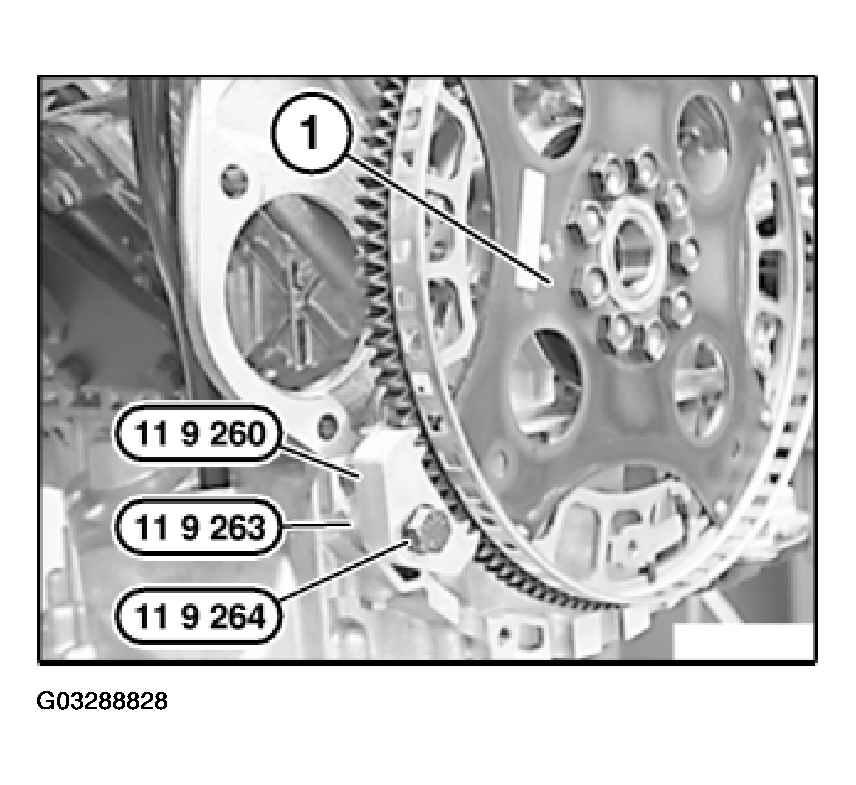

Fig 1: Blocking Flywheel With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Remove flywheel (1).

Installation:

Clean threads on flywheel screws in crankshaft.

Flywheel (1) is secured with an alignment pin.

Fit flywheel (1).

Fit new flywheel screws.

Tightening torque 11 22 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Manual transmissions only:

Block flywheel (dual-mass) with special tools 11 9 260/11 9 262/ 119 263.

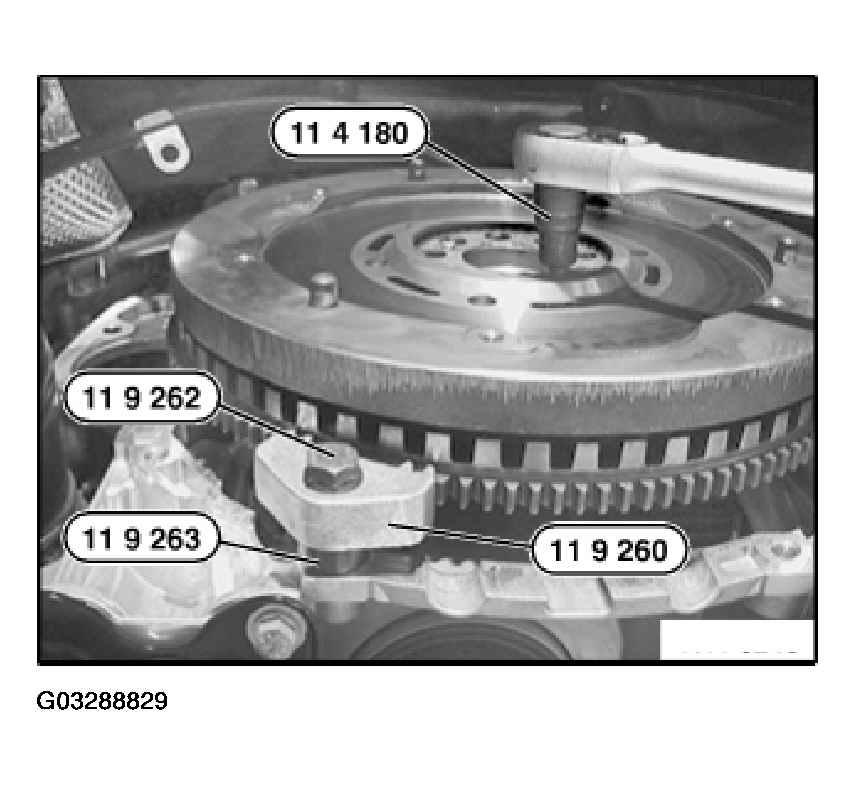

Fig 2: Removing Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Release flywheel screws with special tool 11 4 180.

Installation:

Flywheel (1) is secured with an alignment pin.

IMPORTANT: Do not use screw locking varnish.

Tightening torque 11 22 1AZ. Refer to ENGINE - TIGHTENING TORQUES .
