11 78 533 Replacing right oxygen control sensor (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 030

(cylinder bank 1 to 4)

Switch off ignition.

WARNING: Scalding hazard!
Only perform this task on an engine that has cooled down.

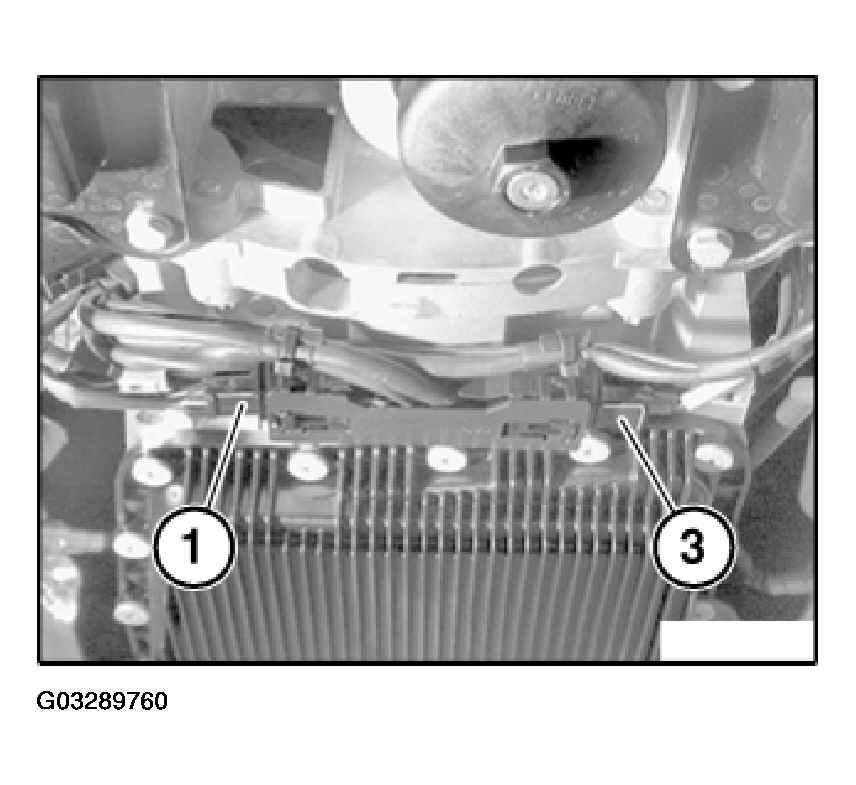

Unlock and detach plug connection (1).

Fig 1: Detaching Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip oxygen control sensor cable.

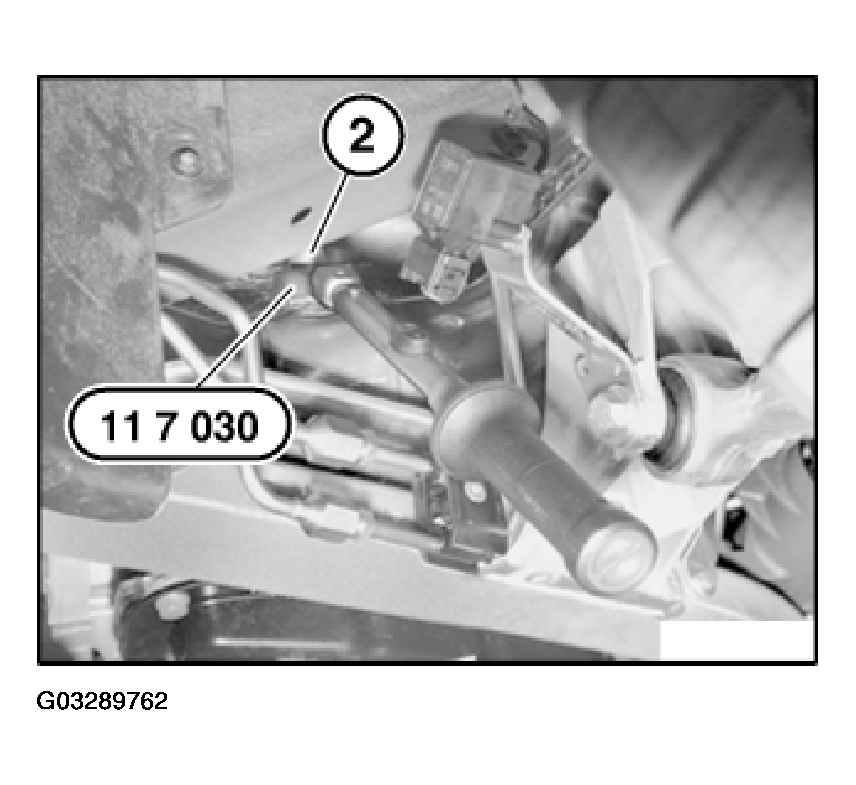

Release oxygen control sensor (2) with special tool 11 7 030.

Fig 2: Releasing Oxygen Control Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads of new oxygen sensors are already coated with Never Seez compound.

If an oxygen sensor is reused, only apply a thin and uniform coat of Never Seez compound to thread.

Oxygen sensor section projecting into exhaust system branch must not be cleaned or come into contact with lubricant.

Installation:

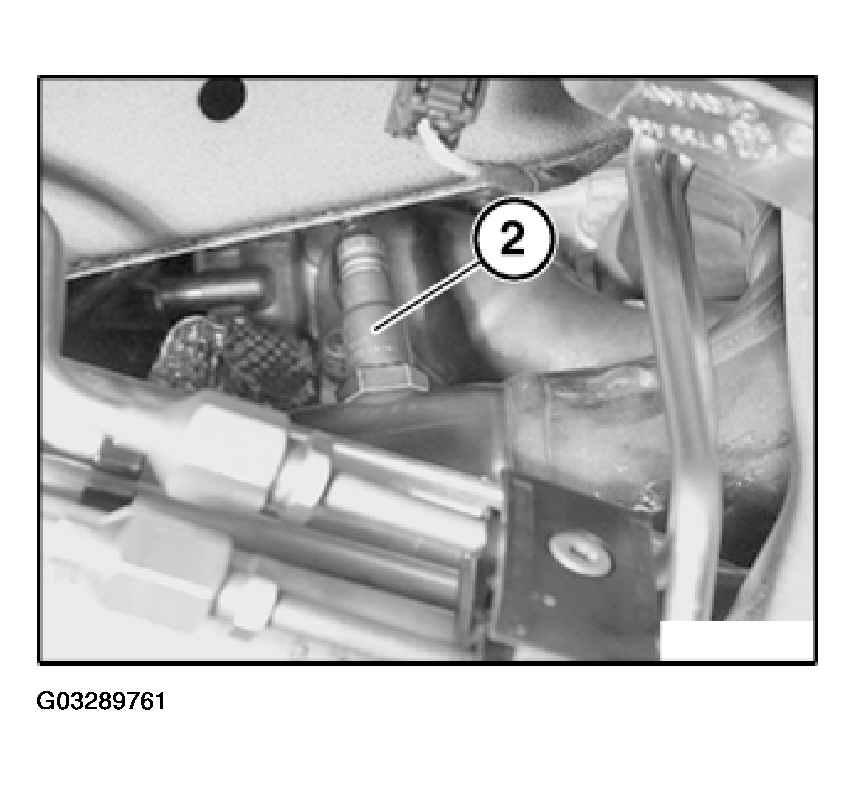

Tighten down oxygen control sensor (2) with special tool 11 7 030.

Fig 3: Tightening Down Oxygen Control Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 78 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Pay attention to cable routing of oxygen control sensor.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
