11 12 719 Milling cylinder head sealing Face (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head dismantled)

Check evenness of cylinder head sealing surface with a standard straight-edge (1).

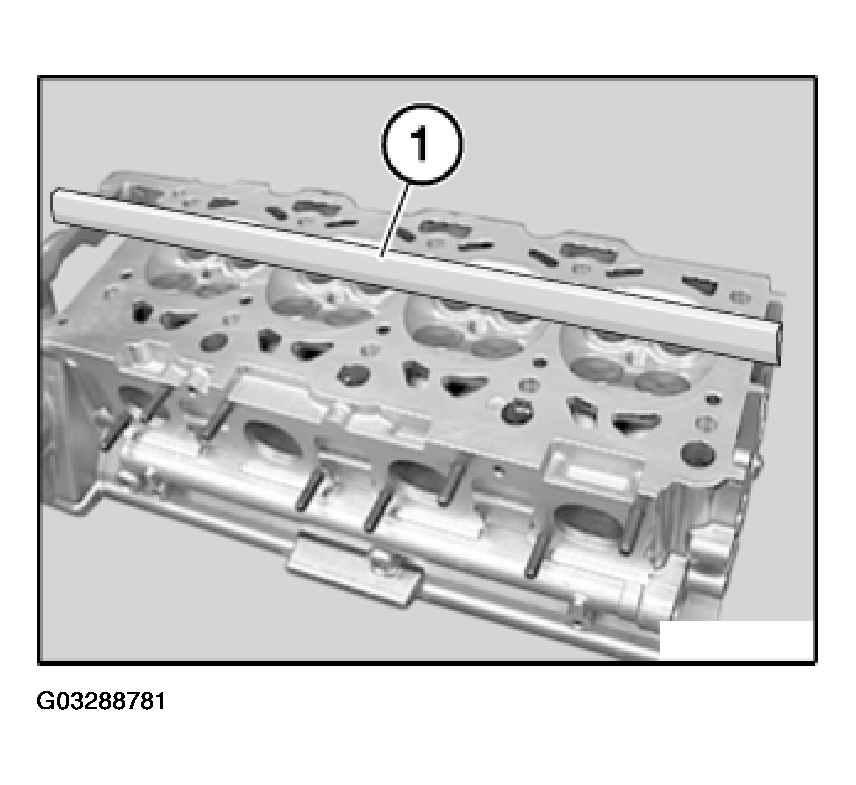

Fig 1: Checking Evenness Of Cylinder Head Sealing Surface - Maximum Plane

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum plane deviation: longitudinal 0.10 mm.

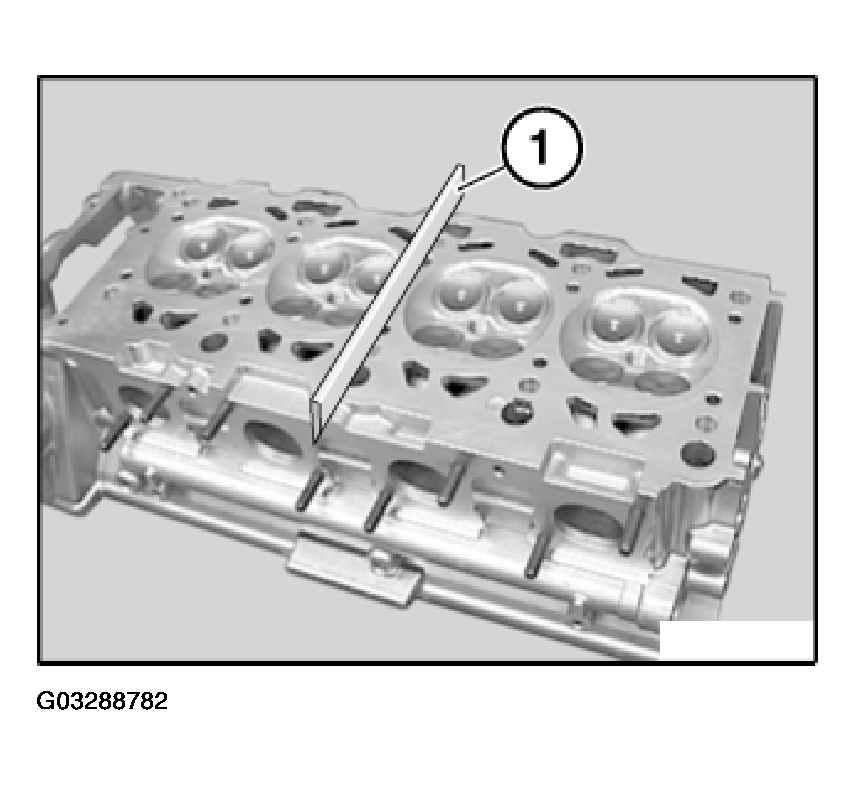

Fig 2: Checking Evenness Of Cylinder Head Sealing Surface - Transversal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum plane deviation: transversal 0.05 mm.

Machining limit, refer to ENGINE - TECHNICAL DATA .

NOTE: A cylinder head seal 0.3 mm thicker than usual can be obtained for machined (milled) cylinder heads.

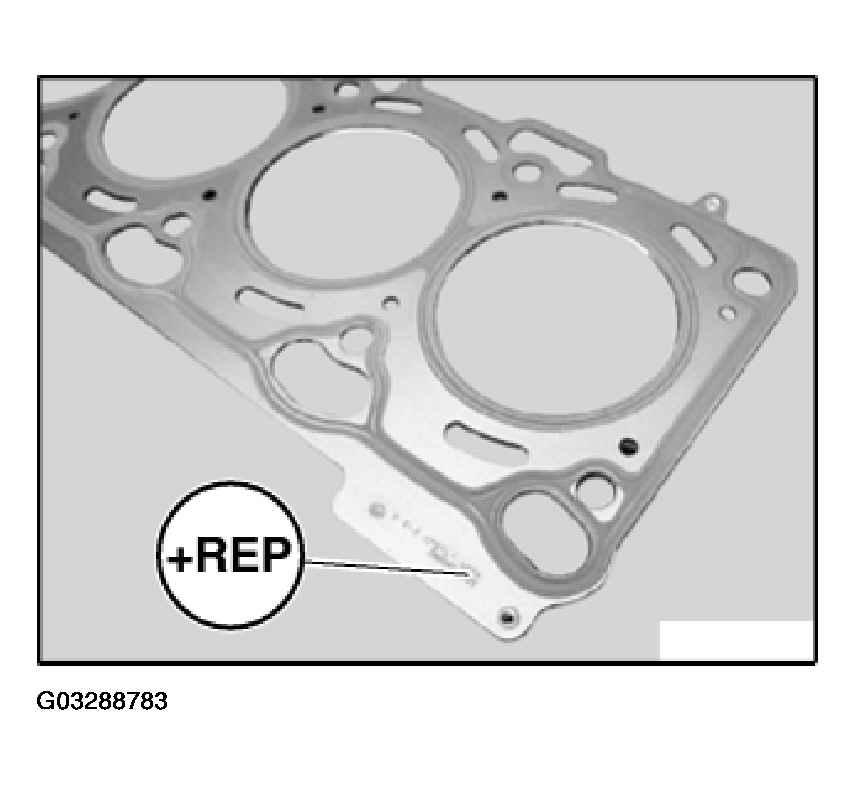

Fig 3: Identifying Cylinder Head Seal

Courtesy of BMW OF NORTH AMERICA, INC.
