11 12 105 Removing and installing left cylinder head (N62 from 9 / 03: Removal:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Removal of cylinder head is described separately from installation.

Remove inlet and exhaust adjustment unit on left side. Refer to 11 36 047 Removing and installing/replacing inlet and exhaust adjustment units on left side (N62) .

NOTE: Illustration with engine removed.

Remove eccentric shaft sensor (2).

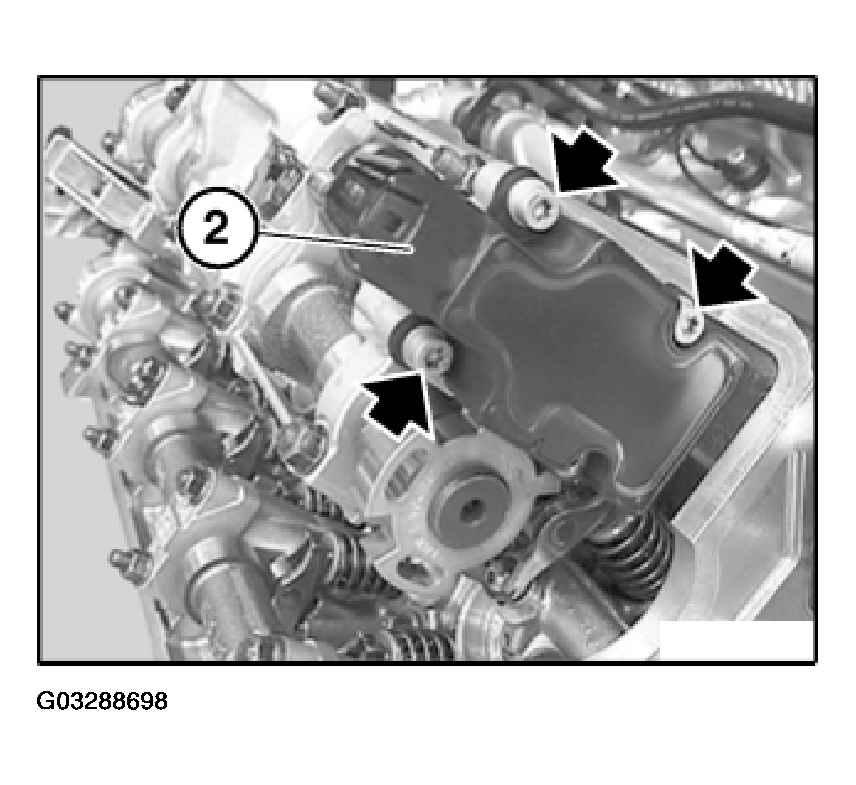

Fig 1: Removing Eccentric Shaft Sensor
G03288698Courtesy of BMW OF NORTH AMERICA, INC.

Detach guide rail from cylinder head.

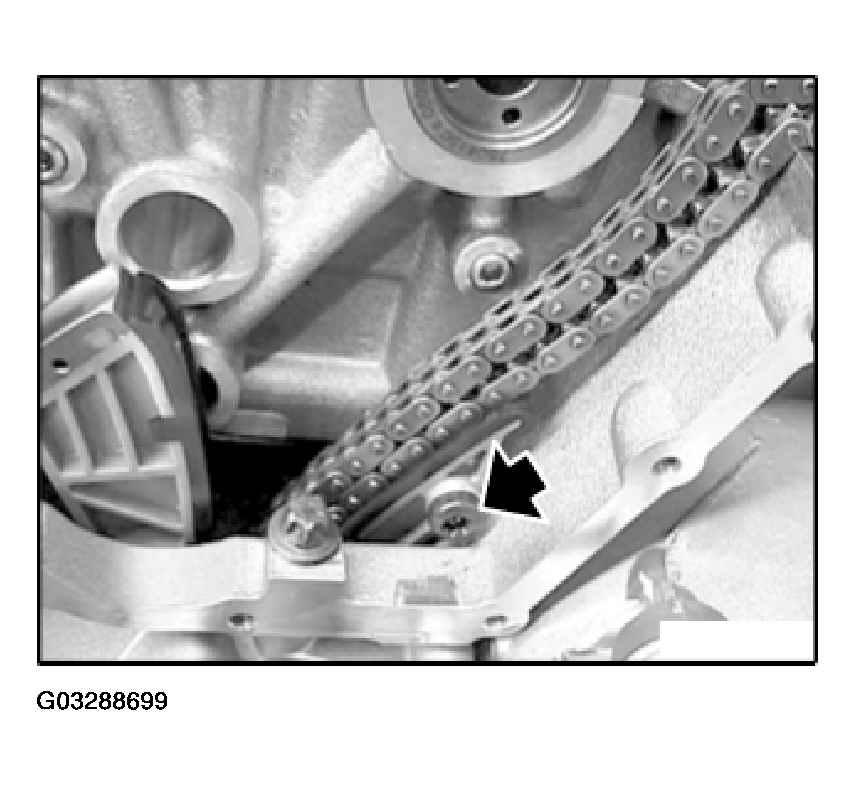

Fig 2: Detaching Guide Rail From Cylinder Head
G03288699Courtesy of BMW OF NORTH AMERICA, INC.

Release screws between cylinder head and timing case cover.

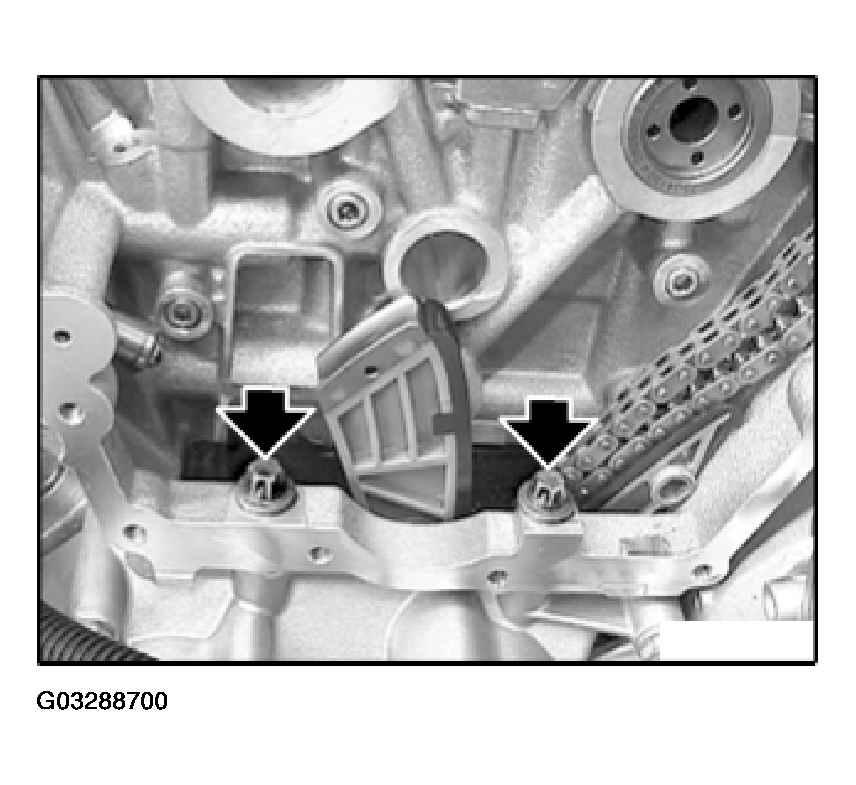

Fig 3: Locating Screws Between Cylinder Head And Timing Case Cover
G03288700Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: At narrow points, use a socket with 3/8" drive and a short extension.

Release cylinder-head bolts in sequence 10 ... 1.

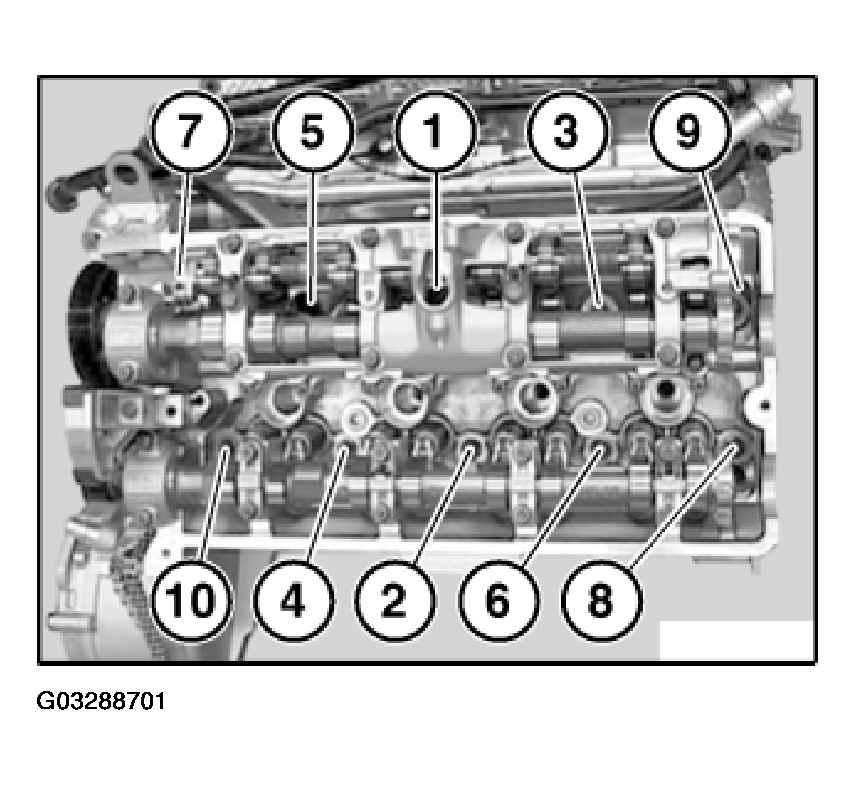

Fig 4: Identifying Cylinder-Head Bolts Sequence For Removing
G03288701Courtesy of BMW OF NORTH AMERICA, INC.

Lift off cylinder head.

Lift off cylinder head gasket.
